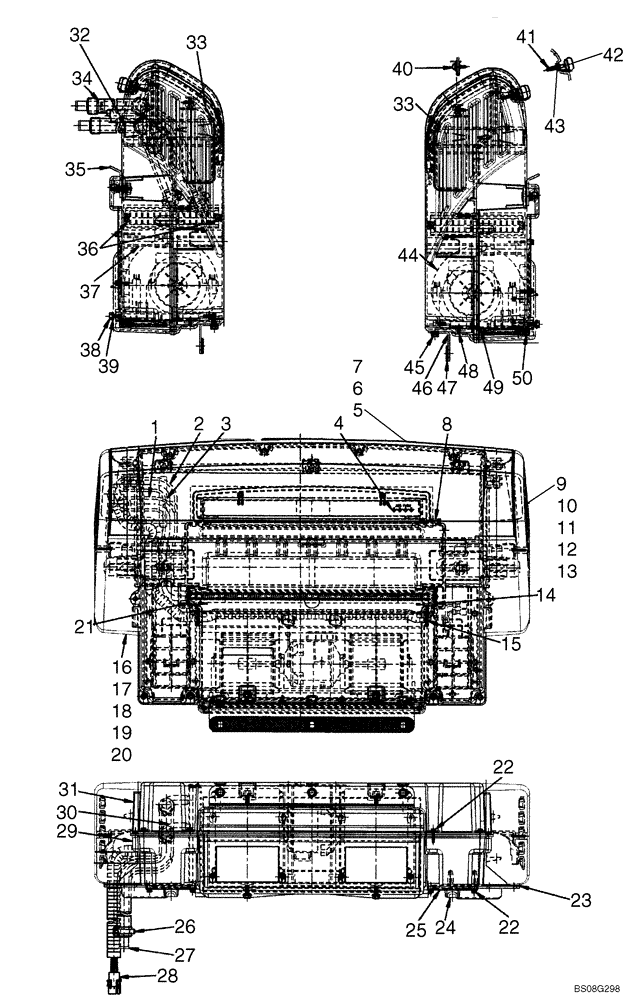

Запчасти Case IH 465 (09-48) - HEATER ASSEMBLY (09) - CHASSIS

87653394

HEATER

Assy; Incl 1 - 50

1шт.

1

87656099

HOSE,15.88 mm ID x 635.00 mm, SAE 20R3

Formed, Short

1шт.

2

87656098

HOSE,15.88 mm ID x 635.00 mm, SAE 20R3

Formed, Long

1шт.

3

NSS

NOT SOLD SEPARAT

Data Decal

1шт.

4

87656118

CAB FILTER,362mm L x 160mm W x 24mm Thk, Charcoal

Charcoal

1шт.

5

87498344

REAR COVER

Incl 6, 7; Replaces 87656129

1шт.

6

87497953

COVER

Replaces 87656114

1шт.

7

87498345

GASKET

Seal, Filter; Replaces 87656130

1шт.

8

NSS

NOT SOLD SEPARAT

Seal, Evaporator

2шт.

9

87656121

CAP

End Assy, LH; Incl 10 - 13

1шт.

10

87656109

CAP

End, LH

1шт.

11

87656123

CAP

Partition, LH

1шт.

12

87656126

CLIP

Recepticle, U-Type

1шт.

13

NSS

NOT SOLD SEPARAT

Screw, #8 X 1/2 in.

2шт.

14

NSS

NOT SOLD SEPARAT

Tank Seal

1шт.

15

87753900

GASKET

Harness

2шт.

16

87656122

CAP

End Assy, RH; Incl 17 - 20

1шт.

17

87656105

CAP

End, RH

1шт.

18

87656124

CAP

Partition, RH

1шт.

19

87656126

CLIP

Recepticle, U-Type

1шт.

20

NSS

NOT SOLD SEPARAT

Screw, #8 X 1/2 in.

2шт.

21

NSS

NOT SOLD SEPARAT

Tank Seal, Tubes

1шт.

22

NSS

NOT SOLD SEPARAT

Screw, #8 X 3/4 in.

18шт.

23

87656096

GASKET,3.18mm Thk

Bottom Bracket

2шт.

24

87656100

COVER

Slide, Recirculation

2шт.

25

87656101

BEZEL

Bezel, Recirculation

2шт.

26

NSS

NOT SOLD SEPARAT

Hose Clamp, 5/8 in.

4шт.

27

87035457

TUBE,0.625" DIA x 1.585" L

Beaded, 5/8 in.

2шт.

28

87656120

WIRE HARNESS

1шт.

29

87658709

CASE

Half, Bottom

1шт.

30

87656103

CORE

Heater

1шт.

31

87658710

CASE

Half, Top

1шт.

32

87756824

SEAL

Bottom, Filter

1шт.

33

87756825

SEALING STRIP

Fresh Air

2шт.

34

NSS

NOT SOLD SEPARAT

Inlet Tape, 88mm (3 7/16 in.) Length

1шт.

35

87656095

BRACKET

Bottom

2шт.

36

NSS

NOT SOLD SEPARAT

1/4 in. X 1/2 in. X 1153mm (45 7/16 in.) Length

1шт.

37

87753898

SPACER

Plastic

2шт.

38

NSS

NOT SOLD SEPARAT

Screw, 1/4-20 X 5/8 in.

4шт.

39

NSS

NOT SOLD SEPARAT

Lockwasher, 1/4 in. Split

4шт.

40

NSS

NOT SOLD SEPARAT

Pan Head Screw, #12 X 3/4 in.

4шт.

41

87753901

RETAINER

Steel

3шт.

42

87656125

SCREW,1.30mm

Wing Head

3шт.

43

87656126

CLIP

Recepticle, U-Type

5шт.

44

86592107

ELECTRIC BLOWER

Assy

1шт.

86592107R

465 TIER 3 ASN N7M452623 (1/08 - 3/11)

REMAN-BLOWER

1шт.

86592107C

Return Number

CORE-BLOWER

1шт.

45

NSS

NOT SOLD SEPARAT

Screw, M6 X 20

5шт.

46

87656106

BRACKET

Front

1шт.

47

87656097

GASKET,3.18mm Thk

Front Bracket

1шт.

48

NSS

NOT SOLD SEPARAT

Screw, #10-24 X 3/8 in.

8шт.

49

87656107

PLATE

Blower Mount

1шт.

50

87656108

GASKET

Blower Outlet

1шт.
