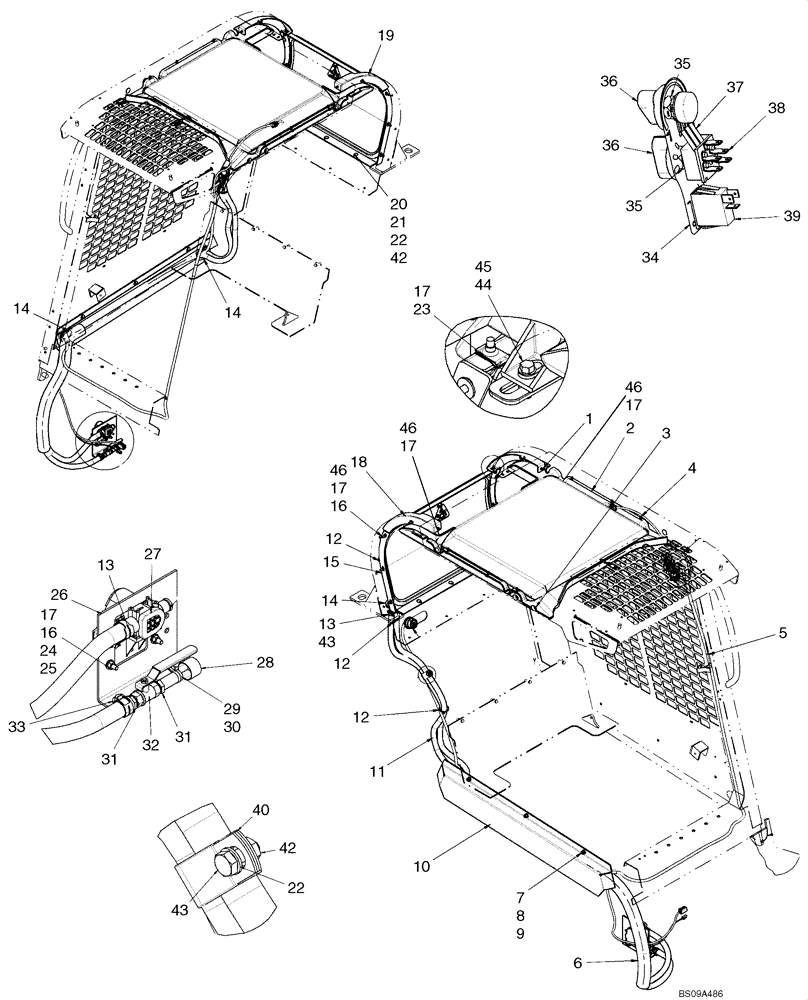

Запчасти Case IH 465 (09-45) - HEATER SYSTEM (09) - CHASSIS

1

87712706

FASTENER,16mm L, Nylon

Fastener, Push In; If Used

2шт.

2

87669938

LINER

Headliner; See Fig 09-46

1шт.

3

414635A1

COVER,25.4mm OD x 0.51mm Thk

If Used

3-4шт.

4

87713668

FASTENER

Fastener, Push In

6шт.

5

87718144

HARNESS

Harness, HVAC; If Used

1шт.

5

87482950

HARNESS

Harness, HVAC

1шт.

6

87439990

GUARD,46mm ID x 900mm L, Nylon Woven

Heater Hose Guard

1-2шт.

7

412250

NUT,M8 x 1.25, Cl 8

3шт.

8

86624185

WASHER,8.8mm ID x 17.5mm OD x 2mm Thk

3шт.

9

86512420

CARRIAGE BOLT,Rnd Head, M8 x 1.25 x 20mm, Full Thd, Cl 8.8

3шт.

10

87689316

COVER

Hose Cover; If Used

1шт.

10

84164584

COVER

Hose Cover, Gray

1шт.

11

87438211

HEATER HOSE,15.88 mm ID x 2985.00 mm, SAE 20R3

Supply; If Used

2шт.

12

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

3-4шт.

13

87443511

CLAMP,22mm - 26mm, CTB-24, Style C

2-4шт.

14

87439844

GUARD

Trim

3шт.

15

87705418

GLASS

Rear Window, HVAC; See Fig 09-42; If Used

1шт.

15

87742310

GLASS

Rear Window, HVAC; See Fig 09-42

1шт.

16

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4-12шт.

17

9804256

BOLT,Hex, M6 x 1 x 20mm, Full Thd, Cl 8.8

10-12шт.

18

87705417

GLASS

Filler, Rear Window RH

1шт.

19

87705416

FILLER

Filler, Rear Window LH

1шт.

20

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

3шт.

21

43362

NUT,M8 x 1.25, Cl 10

If Used

3шт.

22

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

If Used

1-4шт.

22

86624183

WASHER,6.6mm ID x 25mm OD x 1.6mm Thk

1шт.

23

87016585

NUT,Spring, M6 x 1

2шт.

24

86977786

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8

4шт.

25

86511444

FLANGE NUT,Hex, M6 x 1

4шт.

26

87439472

BRACKET

Bracket, Water Valve And Dryer

1шт.

27

87520839

VALVE

Water Valve

1шт.

28

9827902

CLAMP,25.4mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

29

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

2шт.

30

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

2шт.

31

642560

FITTING,5/8" Hose x 3/8" NPTF Beaded

2шт.

32

87441937

VALVE

Ball Valve, Heater Hose

1шт.

33

87015284

WASHER,8.8mm ID x 21.5mm OD x 2.5mm Thk

2шт.

34

87687236

DECAL

Decal, HVAC Control

1шт.

35

87310592

JAM NUT,7/16" - 28, Gr 5

2шт.

36

86729670

KNOB

2шт.

37

86729675

SWITCH,5000 Ohm

1шт.

38

86729669

SWITCH

Switch, Blower Fan

1шт.

39

87555249

SWITCH

A/C Switch; If Used

1шт.

39

87555250

PLUG

A/C Switch Plug; If Used

1шт.

40

H434289

MOUNTING CLIP,7/8”, Insulated, 1/2” Bolt

If Used

1шт.

42

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

1-4шт.

43

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

If Used

1шт.

43

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

If Used

1шт.

44

9804257

FLANGE BOLT,Hex, M6 x 1.0 x 25mm, Cl 8.8, Full Thd

2шт.

45

86619800

FLANGE NUT,M6 x 1, Cl 8

2шт.

46

86624182

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

10шт.
