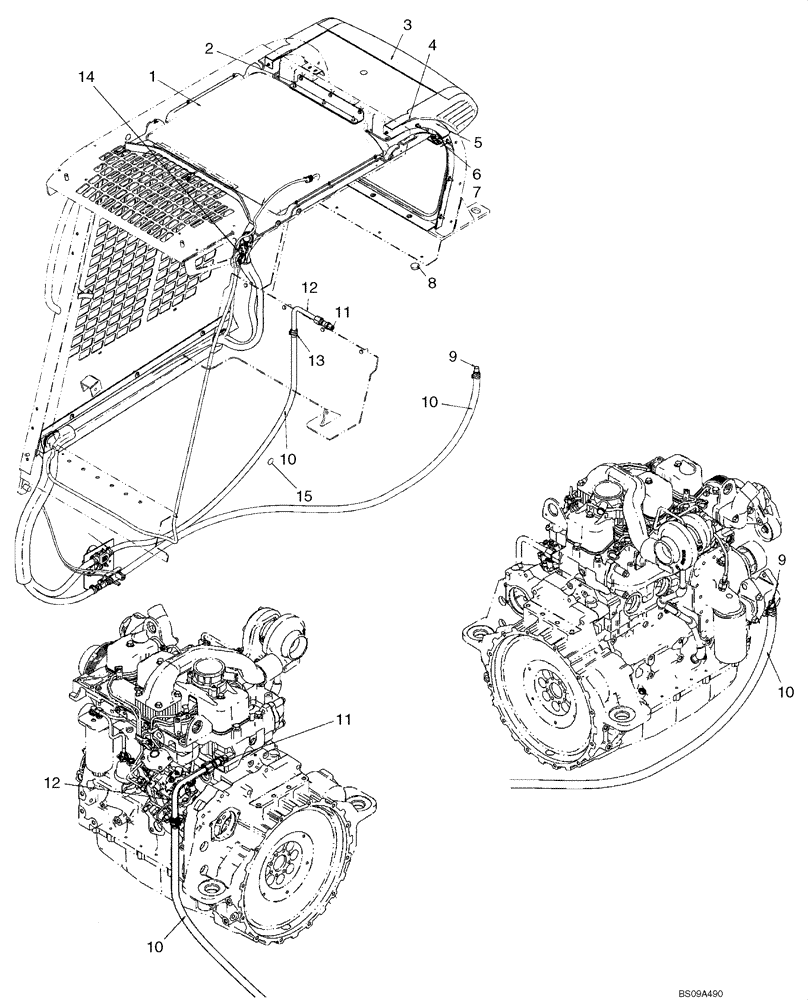

Запчасти Case IH 465 (09-44) - HEATER SYSTEM (09) - CHASSIS

87639909

SERVICE KIT

Deluxe Heater; Incl 1 - 21

1шт.

1

REF

INSTRUCTION

Heater System; See Fig 09-45

1шт.

2

9804256

BOLT,Hex, M6 x 1 x 20mm, Full Thd, Cl 8.8

3шт.

3

84129072

Heater Assy; Incl 87653394 And 84146888

1шт.

3

87653394

HEATER

Assy; See Fig 09-48

1шт.

4

87450833

TAPE

If Used

2шт.

5

291308

SEALING STRIP,0.75" W x 0.5" Thick

580mm (22 13/16 in.); If Used

1шт.

6

9804257

FLANGE BOLT,Hex, M6 x 1.0 x 25mm, Cl 8.8, Full Thd

2шт.

7

86619800

FLANGE NUT,M6 x 1, Cl 8

2шт.

8

86625129

PLUG,Dome, 1" Hole, Nylon

2шт.

9

642560

FITTING,5/8" Hose x 3/8" NPTF Beaded

1шт.

10

87438212

HEATER HOSE,15.88 mm ID x 1900.00 mm, SAE 20R3

2шт.

11

242680

HYD CONNECTOR,7/8" - 14 JIC x 1/2" - 14 NPT

1шт.

12

87612366

HEATER TUBE

1шт.

13

87443511

CLAMP,22mm - 26mm, CTB-24, Style C

4-6шт.

14

87555250

PLUG

A/C Switch Plug

1шт.

15

414635A1

COVER,25.4mm OD x 0.51mm Thk

25.4mm Dia. Lexan

3шт.

16

87438211

HEATER HOSE,15.88 mm ID x 2985.00 mm, SAE 20R3

Supply

2шт.

17

86511444

FLANGE NUT,Hex, M6 x 1

1шт.

18

86624183

WASHER,6.6mm ID x 25mm OD x 1.6mm Thk

1шт.

19

H434289

MOUNTING CLIP,7/8”, Insulated, 1/2” Bolt

1шт.

20

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

21

86977786

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8

1шт.
