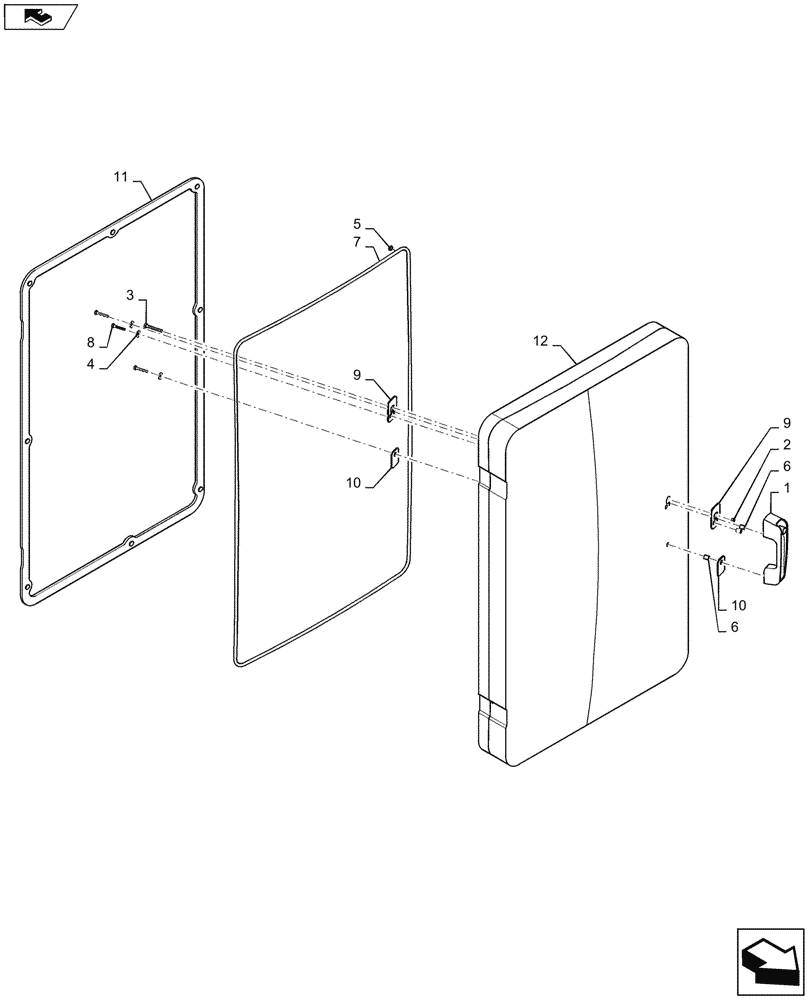

Запчасти Case IH 465 (09-24A) - DEMOLITION DOOR SUB (09) - CHASSIS

1

60-7083T1

HANDLE

Cab Door

1шт.

2

1369

NUT,1/4"-20, G5

Frame W/ Sub Assy

1шт.

3

87404

BOLT,Hex, 1/4" - 20 x 2", Gr 5

Window Adhesive

1шт.

4

86639315

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

Glue

3шт.

5

87600221

SPACER

Glue

7шт.

6

87642540

SPACER,6.5mm ID x 9.5mm OD x 13mm L

Wiper Motor

3шт.

7

87660180

ADHESIVE

Window Adhesive

1шт.

8

87698769

BOLT,Hex, M6 x 35mm, Cl 8.8

M6 X 35 Full 8.8 BZN

3шт.

9

87723771

SEAL

Upper Handle Mounting

2шт.

10

87723784

SEAL

Lower Handle Mounting

2шт.

11

87746919

Frame W/ Sub Assy

FRAME

1шт.

12

87746988

DOOR

Polycarbonate Door

1шт.
