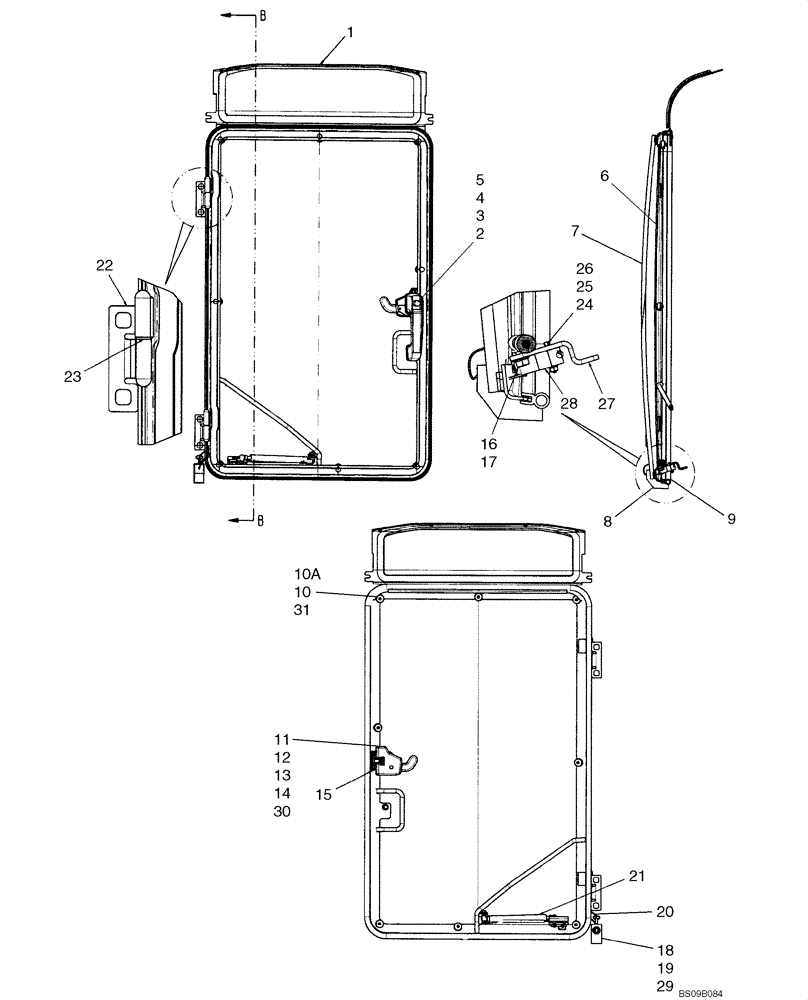

Запчасти Case IH 465 (09-24) - DEMOLITION DOOR (09) - CHASSIS

1

87627523

WINDOW

Visor; See Fig 09-21

1шт.

2

60-7083T1

HANDLE

Cab Door; If Used

1шт.

3

87642540

SPACER,6.5mm ID x 9.5mm OD x 13mm L

If Used

3шт.

4

87723784

SEAL

Lower, Handle Mounting; If Used

2шт.

5

87723771

SEAL

Upperl, Handle Mounting; If Used

2шт.

6

87481887

FOAM INSULATION

Foam Gasket

1шт.

7

NSS

NOT SOLD SEPARAT

Polycarbonate Door

1шт.

8

NSS

NOT SOLD SEPARAT

Demolition Door Frame

1шт.

8

NSS

NOT SOLD SEPARAT

Demolition Doo rSub Frame; See Fig 09-24A

1шт.

9

87624550

SEAL,3449mm L

Bulb, 3449mm (135 13/16 in.)

1шт.

10

87728415

KNOB

Quick Release; If Used

8шт.

10a

87756304

KNOB

8шт.

11

1369

NUT,1/4"-20, G5

If Used

1шт.

12

86512463

SCREW,Phillips Drive, Flat HD, M6 x 25mm, Cl 4.8

M6 X 25 4.5 ZND

3шт.

13

280112

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

If Used

1шт.

14

87678399

LATCH

1шт.

15

87642588

LATCH

Striker

1шт.

16

87581669

BALL STUD,M8 x 29.50mm L

Ball

1шт.

17

86619801

FLANGE NUT,M8 x 1.25, Cl 8

1шт.

18

87639255

STOP

ROPS Tilt Stopper

1шт.

19

87685933

PIN,6.35mm OD x 51.6mm L

Pin, Detent

1шт.

20

87685949

CABLE,179.5mm L

Cable

1шт.

21

87581689

GAS STRUT

Gas

1шт.

22

87672017

HINGE

Door Hinge

2шт.

23

87599753

SPACER,10.21mm ID x 15.88mm OD x 2.03mm L

2шт.

24

87680073

U-BOLT

U Bolt, Switch Mounting

1шт.

25

87622767

NUT

#6-32

2шт.

26

87529123

WASHER,0.16" ID x 0.38" OD x 0.05" Thk

.156 X .375 X .049 in; If Used

2шт.

26

86511189

WASHER,0.16" ID x 0.38" OD x 0.05" Thk

Washer.156 X .375 X .049

2шт.

27

87672000

BRACKET

Door Switch Bracket, Black

1шт.

28

87051110

DOOR SWITCH

Seat Bar

1шт.

29

NSS

NOT SOLD SEPARAT

Cable Crimp

1шт.

30

86619800

FLANGE NUT,M6 x 1, Cl 8

2шт.

31

412327

CARRIAGE BOLT,Short Sq Nk, M6 x 1 x 40mm, Full Thd, Cl 8.8

If Used

8шт.
