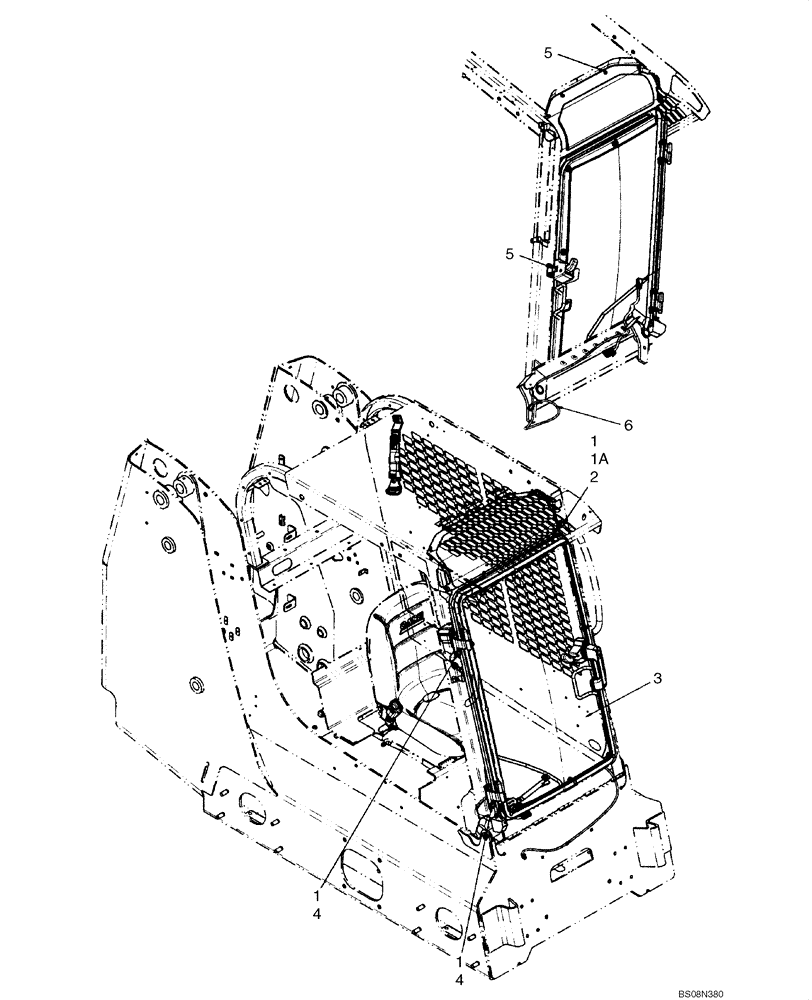

Запчасти Case IH 465 (09-23) - DEMOLITION DOOR - MOUNTING (09) - CHASSIS

87651127

SERVICE KIT

Demolition Door; Incl 1 - 6

1шт.

1

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4-6шт.

1a

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

If Used

2шт.

2

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

If Used

2шт.

3

REF

INSTRUCTION

Demolition Door; See Fig 09-25

1шт.

4

86639313

WASHER,9mm ID x 24mm OD x 2mm Thk

If Used

4шт.

4

87015284

WASHER,8.8mm ID x 21.5mm OD x 2.5mm Thk

If Used

4шт.

5

87015862

BOLT,Hvy Hex, M6 x 20mm, Cl 8.8, Full Thd

If Used

6шт.

5

9804256

BOLT,Hex, M6 x 1 x 20mm, Full Thd, Cl 8.8

If Used

6шт.

6

87658639

HARNESS

Door Jumper; If Used

1шт.

6

87747923

HARNESS

Door Jumper; If Used

1шт.
