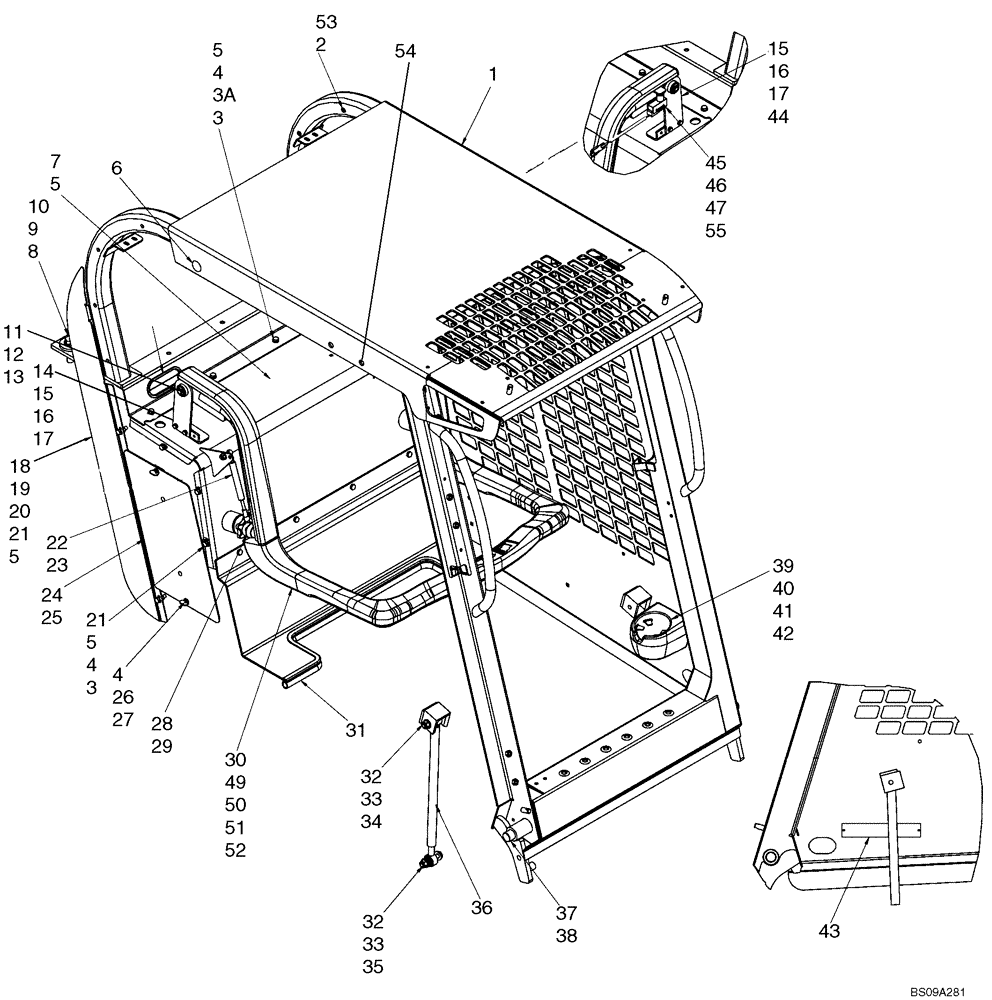

Запчасти Case IH 465 (09-16) - CAB - FRAME AND SEAT BAR (09) - CHASSIS

1

87710312

SERVICE KIT

ROPS; Incl ROPS, Decal - Warning, Decal - General Instructions, ROPS Model And Approval Plate

1шт.

2

419434A1

INSERT

Threaded, M6

10-20шт.

3

43128

BOLT,M8 x 1.25 x 30mm, Cl 8.8

4-6шт.

3a

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.

4

140016

WASHER,M8 x 16mm OD x 1.6mm Thk

12-14шт.

5

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

16-20шт.

6

86625129

PLUG,Dome, 1" Hole, Nylon

2шт.

6

87499075

DECAL

Blank Decal, Gray

1шт.

7

87671888

PANEL

Rear Seat; If Used

1шт.

7

87473787

Rear Seat Panel

1шт.

8

9847468

BOLT,Hex, M16 x 2 x 70mm, Cl 10.9

2шт.

9

86625266

WASHER,17.5mm ID x 30mm OD x 4mm Thk

2шт.

10

391703A2

WASHER,16.67mm ID x 55mm OD x 6.35mm Thk

2шт.

11

D143415

SNAP RING,0.50” ID, Klipring

2шт.

12

86632589

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

2шт.

13

87620895

BUSHING,12.98mm ID x 19.11mm OD x 23.1mm L

Lap Bar Pivot

2шт.

14

87645117

DRAWBAR CLAMP

Seat Bar Pivot, RH; If Used

1шт.

14

87473777

BRACKET, PIVOT

PIVOT BRACKET Seat Bar Pivot, RH

1шт.

15

120100

BOLT,M6 x 20mm, Cl 8.8

4-8шт.

16

86511444

FLANGE NUT,Hex, M6 x 1

4-8шт.

17

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4-8шт.

18

87684077

PANEL

RH; If Used

1шт.

18

87482188

PANEL

Extention Panel RH

1шт.

19

87684078

PANEL

LH; If Used

1шт.

19

87482190

PANEL

Extention Panel LH

1шт.

20

9804256

BOLT,Hex, M6 x 1 x 20mm, Full Thd, Cl 8.8

If Used

2шт.

21

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

If Used

10шт.

22

87639899

CYLINDER

1шт.

23

189609A1

BALL STUD,M8 x 1.25

Ball

2шт.

24

87460732

PANEL

Solid Panel; If Used

1-2шт.

24

87694082

PANEL

Perforated Panel; If Used

2шт.

25

86625127

PLUG,Dome, .375" hole, Nylon

4шт.

26

408117A2

THUMB SCREW,M8 x 1.25 x 15mm

Thumb, M8; If Used

4шт.

26

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

2-4шт.

27

442856A1

SEALING WASHER,7.11mm ID x 12.7mm OD x 0.79mm Thk

2-4шт.

28

87639914

STOP

Seat Bar Stop

2шт.

29

87639912

KNOB

2шт.

30

REF

INSTRUCTION

Seat Bar; See Fig 09-27

1шт.

31

87713388

MOLDING

Floor Seal

1шт.

32

86625253

WASHER,11mm ID x 24mm OD x 2mm Thk

4шт.

33

86512554

NUT,M10 x 1.5, Cl 10

2шт.

34

43144

BOLT,Hex, M10 x 70mm, Cl 8.8

1шт.

35

120070

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

1шт.

36

282002A2

GAS STRUT

1шт.

37

144345A3

PIVOT PIN,25.4mm OD x 825mm L

1шт.

38

827695C1

CIRCLIP

2шт.

39

87672170

MOLDING

Cup Holder

1шт.

40

86637935

BOLT,Hex, 1/4" - 20 x 1", Gr 8

If Used

2шт.

40

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

2шт.

41

87016587

WASHER,0.27" ID x 0.62" OD x 0.05" Thk

2шт.

42

304061A1

BUMPER,Rubber

Rubber, Cup Holder

4шт.

43

NSS

NOT SOLD SEPARAT

Plate, ROPS Certification

1шт.

44

87645118

DRAWBAR CLAMP

Seat Bar Pivot, LH; If Used

1шт.

44

87473775

BRACKET, PIVOT

PIVOT BRACKET Seat Bar Pivot, LH

1шт.

45

87051110

DOOR SWITCH

Seat Bar

1шт.

46

H435814

U-BOLT

1шт.

46

87319756

SCREW,Phillips Drive, Pan HD, #6 - 32 x 1-3/8"

#6-32 x 1.375; If used

2шт.

47

280859

NUT,Keps, #6-32

2шт.

48

87713678

GROMMET

1шт.

49

87619939

ARM

Upper Lap Bar LH

1шт.

50

87619938

ARM

Upper Lap Bar RH

1шт.

51

87619935

BAR

Lower Section Lap Bar

1шт.

52

86511829

SCREW,Phil Pan Hd, M6 x 16mm, Cl 4.8, Full Thd

4шт.

53

87436247

THREADED INSERT

M6 Blind Threaded Fastener

8шт.

54

414635A1

COVER,25.4mm OD x 0.51mm Thk

Cover, 25.4 Dia Lexan Gray

4-16шт.

55

86511189

WASHER,0.16" ID x 0.38" OD x 0.05" Thk

2шт.
