Запчасти Case IH 465 (09-01) - FRAME - LOADER LIFT (09) - CHASSIS

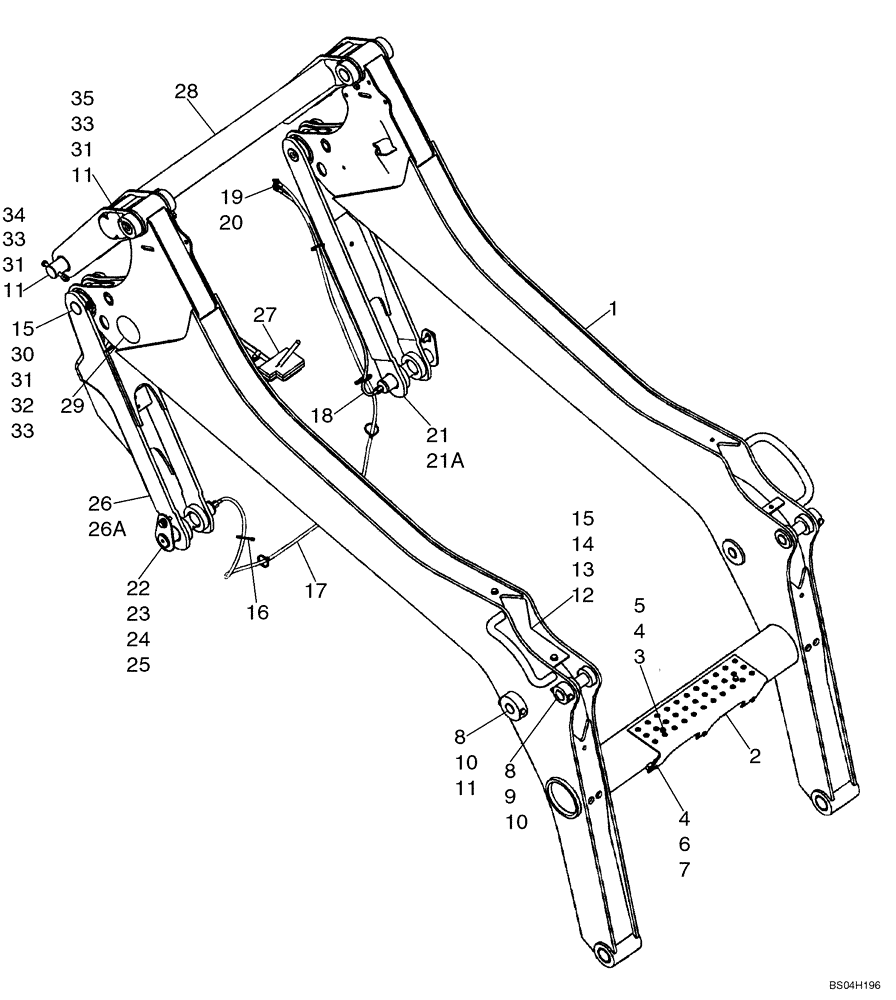

Схема запчастей Case IH 465 - (09-01) - FRAME - LOADER LIFT (09) - CHASSIS
26
13
4
11
28
1
11
8
20
6
16
33
27
10
31
5
31
19
15
29
24
35
18
3
34
14
22
30
12
21
15
11
33
10
4
9
8
17
31
33
7
21a
32
26a
25
23
2

Артикул

Название

Примечание

Количество

87448093

FRAME ASSY

Loader Arm Service Kit; Incl. Ref 1 and Decals

1шт.

1

87443079

FRAME ASSY

Loader Arm, Includes: Ref. 1A

1шт.

1a

141008A1

BUSHING,45.19mm ID x 55mm OD x 30mm L

4шт.

Not Illustrated

1шт.

2

87620407

PLATE

Upper Step

1шт.

3

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

2шт.

4

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

5шт.

5

87037711

SPRING NUT,U, Multi-Thd Sht, M8 x 1.25, PLN

M8 x 1.25

2шт.

6

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

3шт.

7

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

M8 - 1.25

3шт.

8

139089A1

PIN,35mm OD x 149mm L

4шт.

9

120073

BOLT,Hex, M10 x 86.58mm, Cl 8.8

2шт.

10

86512554

NUT,M10 x 1.5, Cl 10

4шт.

11

120075

BOLT,M10 x 1.5 x 106.58mm, Cl 8.8

6шт.

12

198786A1

COVER

1шт.

13

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

1шт.

14

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

1шт.

15

140017

WASHER,M10 x 20mm OD x 2mm Thk

10шт.

16

87000312

CABLE TIE,4.8mm W x 203.2mm OAL, Nylon

CABLE STRAP

5шт.

17

1339002C1

TUBE,2388 mm L

Grease

1шт.

18

1339006C1

TUBE,914 mm L

Grease

1шт.

19

80714

LUBE NIPPLE,1/4"-28 NPT x .54" lg

3шт.

20

F53473

LOCK NUT,1/8-27 NPSM

2шт.

21

193042A4

ROD, CONNECTING

Incl. Bushing 21A

1шт.

21a

141008A1

BUSHING,45.19mm ID x 55mm OD x 30mm L

2шт.

22

433198A1

PIN,45mm OD x 214mm L

2шт.

23

87302487

SPACER,13.8mm ID x 21.3mm OD x 10.3mm L

1/2 x Pipe .406 in

2шт.

24

86625256

WASHER,13.3mm ID x 28.5mm OD x 4mm Thk

2шт.

25

9824642

BOLT,M12 x 1.75 x 42.68mm, Cl 10.9

2шт.

26

227539A5

ROD, CONNECTING

Incl. Bushing 26A

1шт.

26a

141008A1

BUSHING,45.19mm ID x 55mm OD x 30mm L

2шт.

27

REF

INSTRUCTION

Loader Support; See Figure 09-02

1шт.

28

139246A1

ARM ASSY.

Loader Arm; H Frame; Incl. Bushings 28A, 28B

1шт.

28a

141008A1

BUSHING,45.19mm ID x 55mm OD x 30mm L

4шт.

28b

231646A1

SPACER

2шт.

29

313677A1

COVER

Loader Link Access

2шт.

30

179637A1

PIN,45mm OD x 134mm L

2шт.

31

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

6шт.

32

86508573

BOLT,Hex, M10 x 110mm, Cl 8.8

2шт.

33

86500689

NUT,M10 x 1.5, Cl 10

12шт.

34

139087A1

PIN,45mm OD x 212mm L

2шт.

35

139086A1

PIN,45mm OD x 176mm L

2шт.

Выбрано товаров: 42
