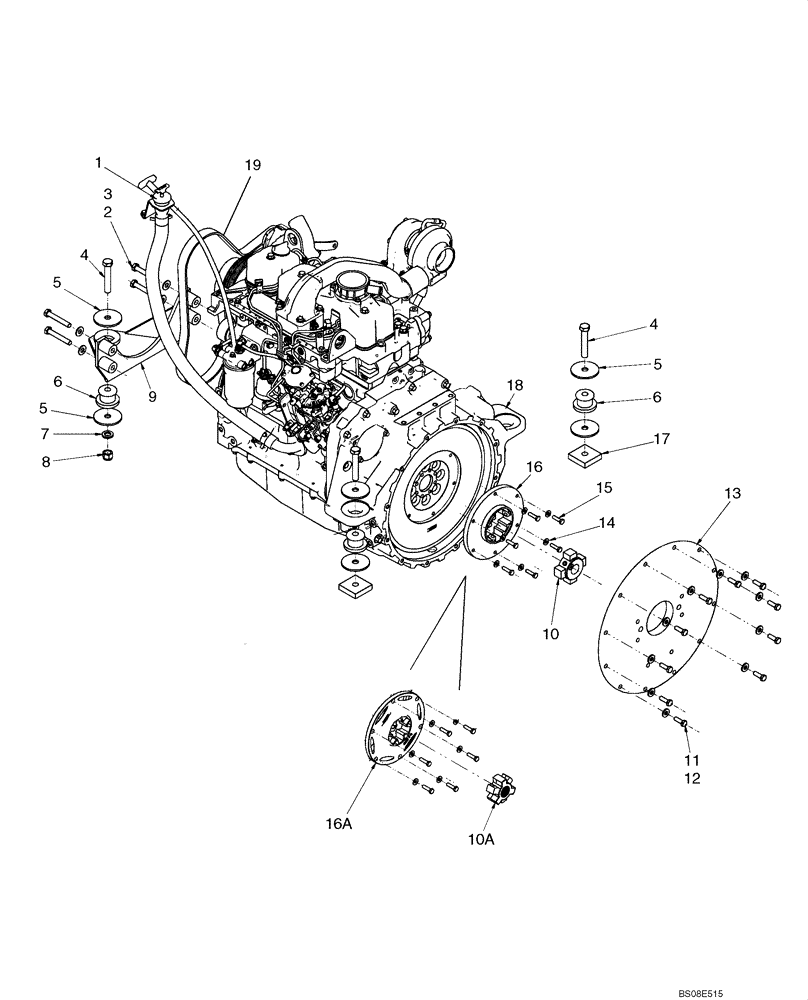

Запчасти Case IH 465 (02-05) - ENGINE - MOUNTING (02) - ENGINE

1

REF

INSTRUCTION

Remote Oil Fill And Dipstick; See Fig 02-06

1шт.

2

412085

BOLT,Hex, M12 x 1.75 x 80mm, Cl 10.9

4шт.

3

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

4шт.

4

350616

BOLT,M16 x 2 x 90mm, Cl 8.8

3шт.

5

87630175

WASHER,0.66" ID x 3" OD x 0.18" Thk

0.656 x 3.000 x 0.179

6шт.

5

87687021

WASHER,17.3mm ID x 70mm OD x 4.5mm Thk

Washer

6шт.

6

A140221

MOUNTING PARTS

Engine Mount

3шт.

7

86625266

WASHER,17.5mm ID x 30mm OD x 4mm Thk

1шт.

8

412066

NUT,M16 x 2.0, Cl 8

1шт.

9

87041763

ENGINE MOUNT

Rear

1шт.

10

87024588

HUB

Pump Drive, 4 Point

1шт.

10a

87711337

COUPLING,19T, 1-1/8" ID

Hub, Pump Drive, 6 Point; Replaces 87024588

1шт.

11

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

10шт.

12

86639325

WASHER,10.8mm ID x 24.5mm OD x 3mm Thk

10шт.

13

87547003

PLATE

1шт.

14

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

6шт.

15

43235

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

6шт.

16

87024539

ELEMENT

Pump Drive, 4 Point

1шт.

16a

87692685

FLEXIBLE COUPLING,215.9mm OD

Pump Drive Element, 6 Point; Replaces 87024539

1шт.

17

390350A1

PLATE

2шт.

18

84149878

ENGINE

NEF 67kw; Incl Parts on Figures 02-29 - 02-40, 03-03 - 03-10, 04-02; Replaces Engine 87384640, For N.A. Only

1шт.

84149878ER

465 Series 3 ASN N7M452623, 4 Cyl., Tier 3

REMAN-REPLACEMENT EN

1шт.

84149878EPAC

Return Number

CORE-EPA ENGINE

1шт.

84149878R

465 SSL Series 3, Aft SN N7M452623, 4 Cyl., Tier 3

EXCHANGE ENGINE

1шт.

84149878C

Return Number

CORE-ENGINE

1шт.

84131042

SHORT ENGINE

Short Block; Includes Stripped Block, Pistons, Connecting Rods and Bearings, Crankshaft and Bearings, Camshaft

1шт.

18

84131042ER

REMAN-SHORT ENGINE

465 ASN N7M452623 (1/08-3/11) w/NEF 4 Cyl., 2 Valve, Tier 3 Engine

1шт.

18

84131042EPAC

CORE-EPA ENGINE

Return Number

1шт.

84131042R

REMAN-SHORT ENGINE

465 - SKID STEER - TIER 3 ASN N7M452623 (1/08-3/11)

1шт.

84131042C

CORE-ENGINE

Return Number

1шт.

19

87681147

V-BELT,27.92mm W x 1505mm L, 8 Ribs

1шт.
