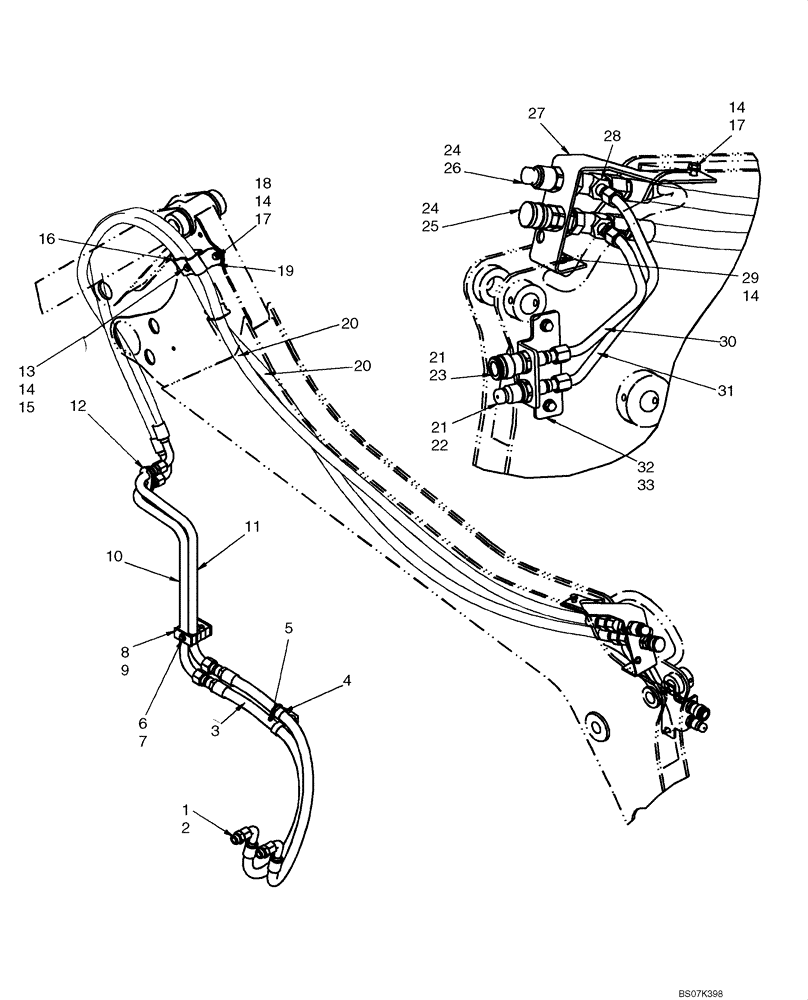

Запчасти Case IH 465 (08-16) - HIGH FLOW - AUXILIARY HYDRAULICS (08) - HYDRAULICS

87618738

SERVICE KIT

High Flow Bi-Directional Gear; Incl 1 - 33 And Fig 08-15 And Fan

1шт.

1

322896

HYD CONNECTOR,1-1/16" - 12 ORB x 1-1/16" - 12 JIC

Incl 2

2шт.

2

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

2шт.

3

87425569

HOSE ASSY.

1260mm (49 5/8 in.)

2шт.

4

86628564

CLAMP,31.7mm, Coat, 10.3mm Bolt Hole, P Type

2шт.

5

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

1шт.

6

43133

BOLT,Hex, M8 x 1.25 x 80mm, Cl 8.8

1шт.

7

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

1шт.

8

257859A1

PLATE, SPACER,31.8mm W x 68mm L x 4.76mm Thk

PLATE,SPACER

1шт.

9

225529A1

CLAMP,Dual, 25.4mm ID

1шт.

10

87668633

HYD TUBE,25.4 mm OD

High Flow

1шт.

11

87668631

HYD TUBE,25.4 mm OD

High Flow

1шт.

12

87017999

SUPPORT

2шт.

13

120068

BOLT,Hex, M10 x 40mm, Cl 8.8

1шт.

14

86624176

WASHER,11mm ID x 20mm OD x 2mm Thk

5шт.

15

P24576

SPACER,3/8" Pipe x 11/16"

1шт.

16

256688A2

CLAMP BRACKET

1шт.

17

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

3шт.

18

86512554

NUT,M10 x 1.5, Cl 10

2шт.

19

253476A1

BAR

1шт.

20

87425570

HOSE ASSY.

Auxiliary Hydraulics, 3335mm (131 5/16 in.)

2шт.

21

595460

BHD LOCK NUT,7/8" - 14

2шт.

22

87417308

COUPLING, BREAK AWAY

1/2 Male Quick Disconnect; If Used

1шт.

22

87741500

QUICK MALE COUPLING,7/8" - 14, 37 Degree x ISO 12.5mm

1/2 Male Quick Disconnect

1шт.

23

393394A1

COUPLING, BREAK AWAY

1/2 Female Quick Disconnect; If Used

1шт.

23

87741499

COUPLING, QUICK, FEM,7/8" - 14, 37 Degree x ISO 12.5mm

1/2 Female Quick Disconnect

1шт.

24

86513144

BHD LOCK NUT,Blkhd, 1 5/16"-12

2шт.

25

87022671

COUPLING, QUICK, FEM

5/8 Female

1шт.

26

87022672

QUICK MALE COUPLING

5/8 Male

1шт.

27

87434094

BRACKET

1шт.

28

86625274

TEE,37 Degree, 1 1/16"-12x1 1/16"-12, Fem Sw Runx7/8"-14 Br

2шт.

29

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

1шт.

30

87434092

HYD TUBE,15.88 mm OD x 182.7, 177.2 mm L

1шт.

31

87434093

HYD TUBE,15.88 mm OD x 292.1, 228.3 mm L

1шт.

32

87426968

BRACKET

1шт.

33

280476

SELF-TAP SCREW,HWH, 3/8"-16 x 1"

2шт.
