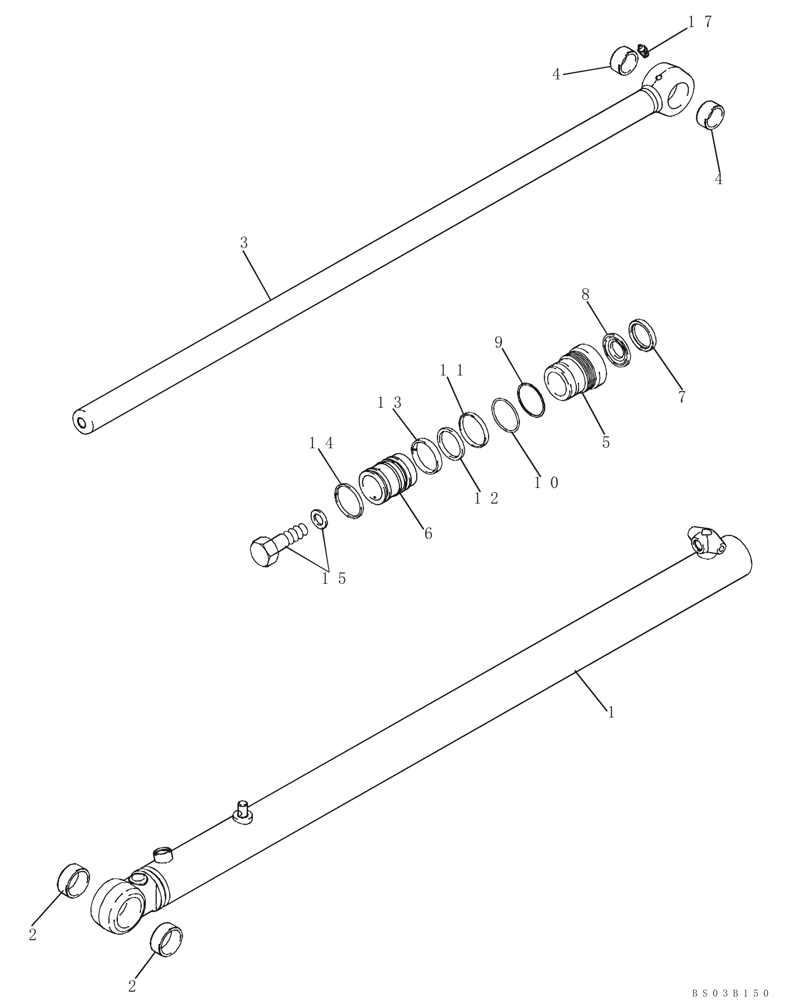

Запчасти Case IH 465 (08-13) - CYLINDER - LOADER LIFT (50 MM DIA ROD) (08) - HYDRAULICS

REF

INSTRUCTION

SERVICE OPTION - REPLACEMENT FOR 139091A3 CYLINDER

1шт.

300873A2

CYLINDER ASSY.,Double Acting, 50.8mm Rod, 1245mm Stroke

64 ID x 1245 mm strk, 50 mm dia rod; Loader Lift; Incl. 1 - 17; If Ordering This Cylnder Assembly As A Service Replacement For 139091A3 Cylinder, Replace Both 139091A3 Cylinders With 300873A2

2шт.

300873A2R

465 SKID STEER - TIER 3 ASN N7M452623, Loader Lift (1/08-3/11)

REMAN-HYD CYLINDER

2шт.

300873A2C

Return Number

CORE-HYD CYLINDER

2шт.

1

192265A2

HYD CYL SLEEVE

Incl. 2

1шт.

2

193552A1

BUSHING,45.19mm ID x 55mm OD x 22mm L

2шт.

3

302908A1

ROD

Incl. 4

1шт.

4

141005A1

BUSHING,35.19mm ID x 45mm OD x 22mm L

2шт.

300864A1

GLAND

Incl. 5, 7 - 10

1шт.

5

300863A1

GLAND,63.5mm Bore, 50.8mm Rod, 87mm W

Packing

1шт.

300869A1

PISTON ASSY

Incl. 6, 11 - 14

1шт.

6

300868A1

PISTON,63.5mm Bore, 50.8mm Rod, 77.3mm W

1шт.

303740A1

KIT

Incl. 7 - 14

1шт.

7

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

1шт.

8

G107923

SEAL,50.77mm ID x 63.63mm OD x 10.69mm Thk

1шт.

9

G109297

BACK-UP RING,56.9mm ID x 63.5mm OD x 1.4mm Thk

1шт.

10

238-5228

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

1шт.

11

G100712

SEAL

Piston

1шт.

12

G100713

SEALING RING,Square, 5.28mm Thk x 49.91mm ID

Loader

1шт.

13

G100714

RING

1шт.

14

191319A1

RING

Cast Iron

1шт.

15

86982435

SPECIAL BOLT,3/4" - 16 x 2-1/2"

1шт.

17

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.
