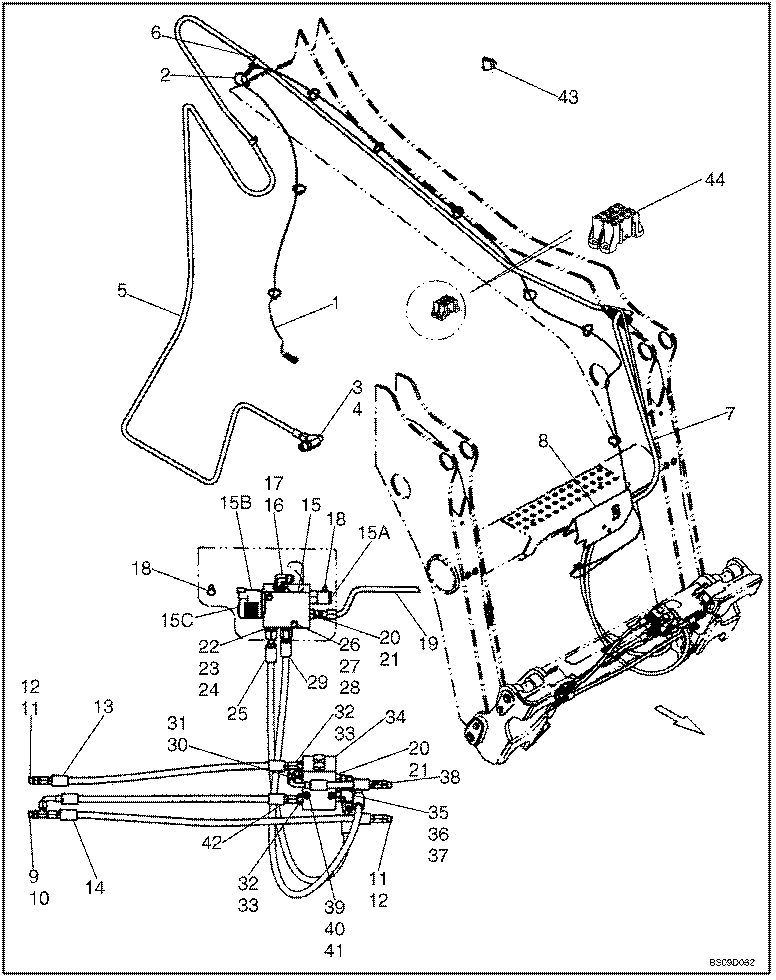

Запчасти Case IH 465 (08-11) - HYDRAULICS - COUPLER SYSTEM (08) - HYDRAULICS

87388080

CONVERSION KIT

From Connection Into Bucket Circuit To Connection Between Gear Pump And Loader Valve; Incl. Ref 2, 3, 5, 6, 7, Hose 87547014 (Not Illustrated), Cap 574342 (Not Illustrated), and Instruction Sheet 87630041

1шт.

87710779

SERVICE KIT

Hydraulic Coupler; Incl 1 - 44

1шт.

1

87446983

WIRE HARNESS

Hydraulic Coupler

1шт.

2

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

10шт.

3

87399014

ADAPTER

Incl. 4

1шт.

4

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

5

87375140

HOSE,9.53mm ID x 5969mm L

5969mm (235 in); If Used

1шт.

5

87647037

HYDRAULIC HOSE,10.00 mm ID x 559.00 mm

1шт.

6

87029955

CLAMP,22.2mm, Coat, 10.3mm Bolt Hole, P Type

2шт.

7

87375142

HOSE,9.53mm ID x 1041mm L

1041mm (40.98 in); If Used

1шт.

7

87647038

HYDRAULIC HOSE,10.00 mm ID x 2032.00 mm

1шт.

8

87426838

BRACKET

Valve

1шт.

9

86513019

TEE,1-5/16" - 12 ORB x 1-1/4" JIC x 1-1/4" JIC

Incl. 10

1шт.

10

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

11

265235

HYD CONNECTOR,7/16" - 20 ORB x 7/16" - 20 JIC

Incl. 12

3шт.

12

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

13

294884A1

HOSE ASSY.

Coupler Cylinder Base

1шт.

14

87437472

HOSE ASSY.

Coupler Cylinder Connection

1шт.

15

87421480

HYDRAULIC VALVE

Coupler; Incl. 15A - 15C

1шт.

15a

87562923

VALVE

Sequence Valve Sauer No. CP240-21-B-0-A-C-270

1шт.

15b

87433496

COIL

Sauer No. 322113

1шт.

15c

87562926

VALVE

Sequence, Sauer No. CP538-1-U-0-12D-DE

1шт.

16

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. 17

1шт.

17

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

18

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

19

87434110

HYD TUBE,9.53 mm OD

1шт.

20

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

Incl 21

3шт.

21

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

22

9993143

HYD CONNECTOR,11/16" - 16 ORFS x 9/16" - 18 ORB

Incl. 23, 24

1шт.

23

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

24

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

25

87426493

HOSE ASSY.,6.35mm ID x 830mm L

1шт.

26

120056

BOLT,M6 x 1.0 x 54.15mm, Cl 8.8

2шт.

27

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

28

353308

NUT,M6 x 1.0, Cl 8

2шт.

29

87437471

HOSE ASSY.,6.35mm ID x 860mm L

1шт.

30

86512934

90 ELBOW,90 Degree, 7/16"-20, 37 Degree x 9/16"-18, O-Ring

Incl. 31

1шт.

31

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

32

139398

HYD CONNECTOR,9/16" - 18 ORB x 7/16" - 20 JIC

Incl. 33

2шт.

33

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

34

294741A1

CHECK VALVE

1шт.

35

9840542

ELBOW,90 Degree, 9/16"-18 x 9/16"-18, Adj, ORFS

Incl. 36, 37

1шт.

36

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

37

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

38

294747A1

HOSE ASSY.,6.35mm ID x 176mm L

Coupler Cylinder Base

1шт.

39

86508570

BOLT,Hex, M6 x 80mm OAL, Cl 8.8

2шт.

40

87030561

NUT,M6 x 1, Cl 8

2шт.

41

86624181

WASHER,M6

4шт.

42

87437473

HOSE ASSY.

Coupler Cylinder Rod End

1шт.

43

87642911

SWITCH

Hyd Coupler Rocker Switch

1шт.

44

A149800

FUSE,10 Amp

10 Amp, Red

1шт.
