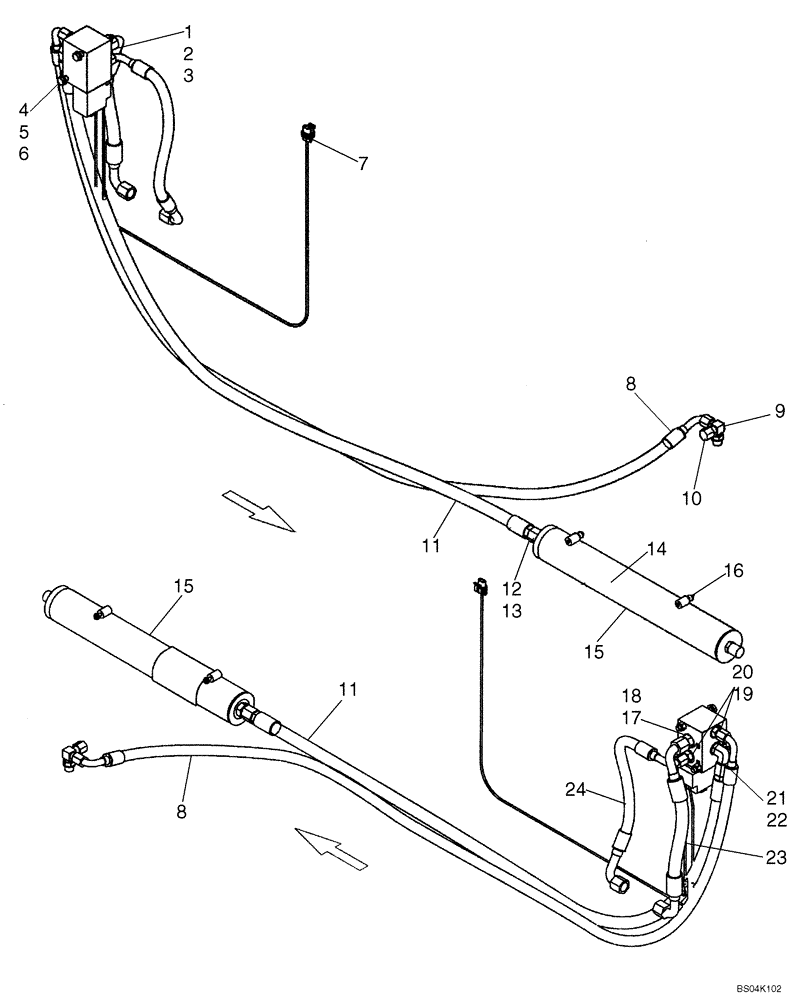

87425408
DIA KIT, ADD PROD
Ride Control; Incl 1 - 26
1шт.
1
87428444
VALVE
Ride Control; Solenoid; Incl. 2, 3
1шт.
2
87424684
SEAL KIT
Not Illustrated
1шт.
3
87424685
REPAIR KIT
Solenoid; Not Illustrated
1шт.
4
43133
BOLT,Hex, M8 x 1.25 x 80mm, Cl 8.8
2шт.
5
86624184
WASHER,9mm ID x 16mm OD x 1.6mm Thk
2шт.
6
9628098
NUT,M8 x 1.25, Cl 10
2шт.
7
310838A1
HARNESS
Ride Control
1шт.
8
87437220
HOSE ASSY.
Tank To Port T
1шт.
9
L104616
TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 ORB
3/8 Tube
1шт.
10
574342
CAP,9/16" - 18 JIC
1шт.
11
87437219
HOSE ASSY.
Accumulator To Port P
1шт.
12
128818
UNION,3/4" - 16 ORB x 3/4" - 16 JIC
Incl. 13
1шт.
13
128825
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
1шт.
14
384260A1
WARNING DECAL,168mm x 88mm H
Pressurized System
1шт.
15
87403797
ACCUMULATOR,275 Bar, 0.75L
Hydraulic
1шт.
16
86624194
HOSE CLAMP,1.81” - 2.75”, Worm Gear
2шт.
17
86509028
HYD CONNECTOR,3/4" - 16 JIC x 9/16" - 18 ORB
Incl. 18
1шт.
18
9617873
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
1шт.
19
76350
HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC
Incl 20
2шт.
20
9617873
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
1шт.
21
86512938
90 ELBOW,90 Degree, 37 Degree 3/4"-16 x 9/16"-18 ORB
Incl. 22
1шт.
22
9617873
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
1шт.
23
87438589
HOSE ASSY.
Lift Cylinder Base To Port C2
1шт.
24
87458975
HOSE ASSY.
365mm (14-3/8 in); Lift Cylinder Base To Port C1
1шт.
25
304083A1
DECAL
Name, Ride Control; Not Illustrated
2шт.
26
255927A1
WARNING DECAL
Warning, Ride Control; Not Illustrated
1шт.
