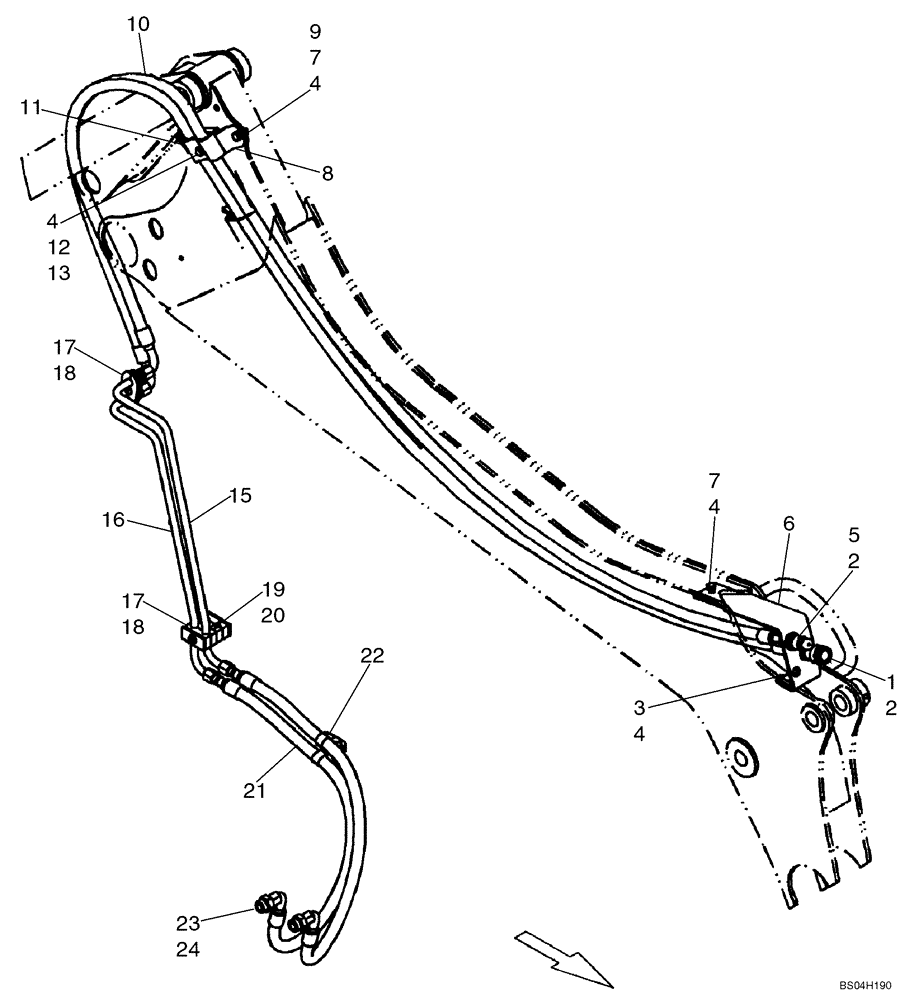

Запчасти Case IH 465 (08-08) - HYDRAULICS - AUXILIARY SYSTEM (08) - HYDRAULICS

1

393394A1

COUPLING, BREAK AWAY

1/2 Female Quick Disconnect; If Used

1шт.

1

87741499

COUPLING, QUICK, FEM,7/8" - 14, 37 Degree x ISO 12.5mm

1/2 Female Quick Disconnect

1шт.

2

595460

BHD LOCK NUT,7/8" - 14

2шт.

3

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

1шт.

4

86624176

WASHER,11mm ID x 20mm OD x 2mm Thk

5шт.

5

87417308

COUPLING, BREAK AWAY

1/2 Male Quick Disconnect; If Used

1шт.

5

87741500

QUICK MALE COUPLING,7/8" - 14, 37 Degree x ISO 12.5mm

1/2 Male Quick Disconnect

1шт.

6

87434104

BRACKET

1шт.

7

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

3шт.

8

253476A1

BAR

1шт.

9

86512554

NUT,M10 x 1.5, Cl 10

2шт.

10

87425567

HOSE ASSY.,15.88mm ID x 3335mm L

2шт.

11

256688A2

CLAMP BRACKET

1шт.

12

120068

BOLT,Hex, M10 x 40mm, Cl 8.8

4шт.

13

P24576

SPACER,3/8" Pipe x 11/16"

1шт.

14

87018001

SUPPORT

5/8

2шт.

15

87700747

HYD TUBE,15.9 mm OD

Auxiliary Hydraulics

1шт.

16

87700751

HYD TUBE,15.9 mm OD

Auxiliary Hydraulics

1шт.

17

257857A1

CLAMP

1шт.

18

257859A1

PLATE, SPACER,31.8mm W x 68mm L x 4.76mm Thk

PLATE,SPACER

1шт.

19

43133

BOLT,Hex, M8 x 1.25 x 80mm, Cl 8.8

1шт.

20

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

1шт.

21

87425568

HOSE ASSY.

2шт.

22

9827902

CLAMP,25.4mm, Coat, 10.3mm Bolt Hole, P Type

6шт.

23

86507102

HYD CONNECTOR,1-1/16" - 12 ORB x 7/8" - 14 JIC

Incl. 24

2шт.

24

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.
