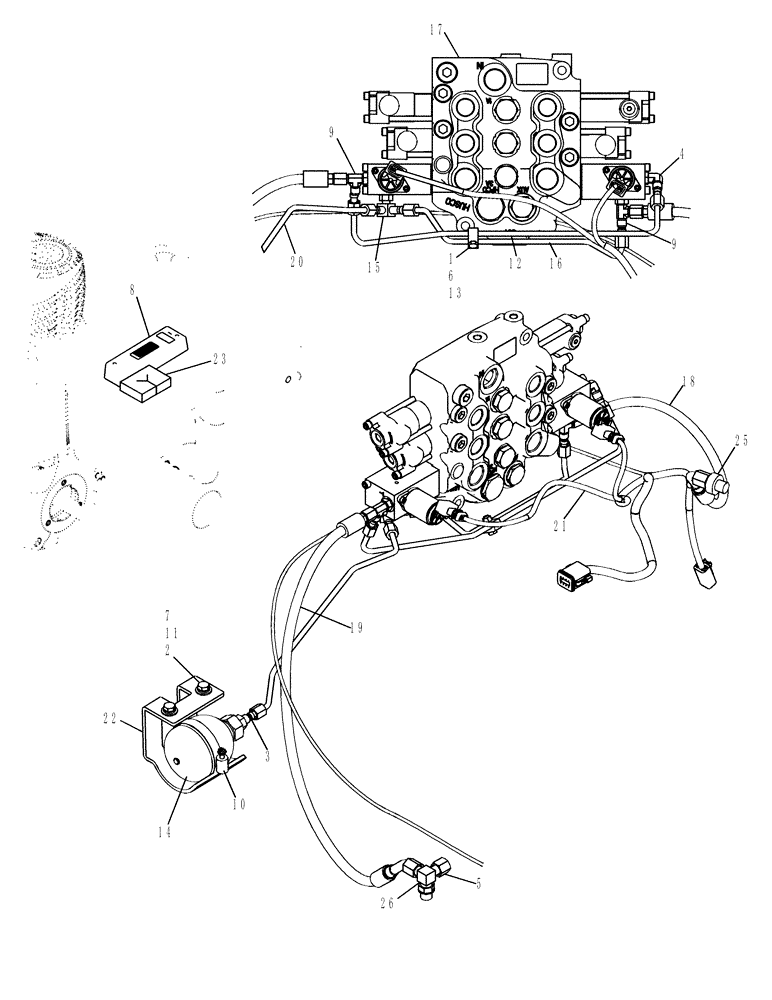

Запчасти Case IH 465 (08-07[2]) - EH PROPORTIONAL AUX PILOT CONTROL (08) - HYDRAULICS

84300907

EH Proportional Aux Mech Control

SERVICE KIT

1шт.

1

120100

BOLT,M6 x 20mm, Cl 8.8

1шт.

2

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

3

139398

HYD CONNECTOR,9/16" - 18 ORB x 7/16" - 20 JIC

1шт.

4

216773

90 ELBOW,90 Degree, 7/16"-20, 37 Degree x 7/16"-20, O-Ring

1шт.

5

574342

CAP,9/16" - 18 JIC

1шт.

6

608089

CLAMP

1шт.

7

83990583

LOCK WASHER,M8 x 14.8mm OD x 2.1mm Thk

2шт.

8

84131374

MODULE

PWM Driver

1шт.

9

86513019

TEE,1-5/16" - 12 ORB x 1-1/4" JIC x 1-1/4" JIC

2шт.

10

70922199

HOSE CLAMP,324mm - 359mm

1шт.

11

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

12

87018051

TUBE,6.35 mm OD

1шт.

13

87030561

NUT,M6 x 1, Cl 8

1шт.

14

87376969

ACCUMULATOR

; Hydraulic Pilot Controls

1шт.

15

87443051

ELBOW

1шт.

16

87443078

HYD TUBE

; Pilot Pressure

1шт.

17

87546975

HYDRAULIC VALVE

;EH Pilot

1шт.

18

87547026

HOSE

Assy., EH Supply or Brake

1шт.

19

87564006

HOSE

Assy., EH Drain

1шт.

20

87626904

HYD TUBE

; Pilot Pressure

1шт.

21

87749672

HARNESS

Electro-Hydraulic Auxilary

1шт.

22

87672246

BRACKET

; Accumulator Mounting

1шт.

23

87729517

SEALING STRIP

; Foam Aux & Throttle

1шт.

24

179189A1

VALVE POPPET

1шт.

25

L104616

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 ORB

1шт.

26

84299270

Installation, EH Aux Pilot

INSTRUCTION

1шт.
