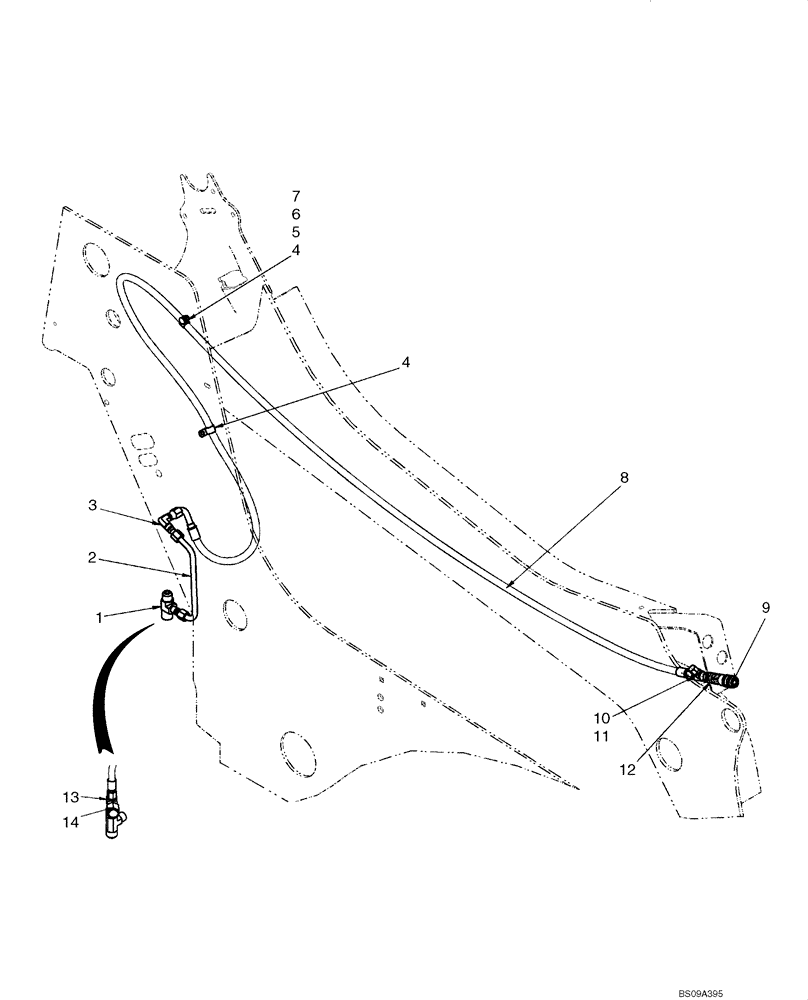

Запчасти Case IH 465 (08-03) - HYDRAULICS - CASE DRAIN (08) - HYDRAULICS

87685969

SERVICE KIT

Loader Arm Case Drain; Incl 1 - 14

1шт.

1

87039438

TEE,1 5/16"-12, 37 Degree x 7/8"-14, 37 Degree x 3/4"-14, NPTF Br

1шт.

1

87690479

TEE

Male BR 37Fl 1.0 x .75 x .75

1шт.

2

87665173

HYD TUBE

Loader Arm Case Drain; 229mm (9.02in); If Used

1шт.

2

87719978

HYD TUBE,12.7 mm OD x 221.4, 34.3 mm L

Loader Arm Case Drain; 221mm (8.70in); If Used

1шт.

2

87477557

HOSE

Loader Arm Case Drain; 220mm (8.66in)

1шт.

3

248973

ELBOW,90º Blkhd, 3/4"-16, 37º x 3/4"-16, 37º

1шт.

4

86637976

CLAMP,19mm, Coat, 8.7mm Bolt Hole, P Type

2шт.

5

86629542

NUT,M8 x 1.25, Cl 8.8

1шт.

6

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

1шт.

7

140016

WASHER,M8 x 16mm OD x 1.6mm Thk

1шт.

8

87668614

HOSE,9.53mm ID x 3275mm L

Loader Arm

1шт.

9

87019286

COUPLING

FF .38 F 8MFB

1шт.

10

574342

CAP,9/16" - 18 JIC

1шт.

11

87029963

HYD CONNECTOR,3/4" Male JIC x 3/4" Male JIC x 3/4" Female JIC

Tee, 37Fl 1/2 X 1/2 X 3/8

1шт.

12

524036

BHD LOCK NUT,Blkhd, 3/4"-16

1шт.

13

86624129

TEE,37 Degree, 3/4"-16 x 1 1/16"-12, Fem Sw Run x 1 1/16"-12

1шт.

14

219606

CAP,1-1/16" - 12 JIC

Remove Cap If Hyd Coupler Is Installed

1шт.
