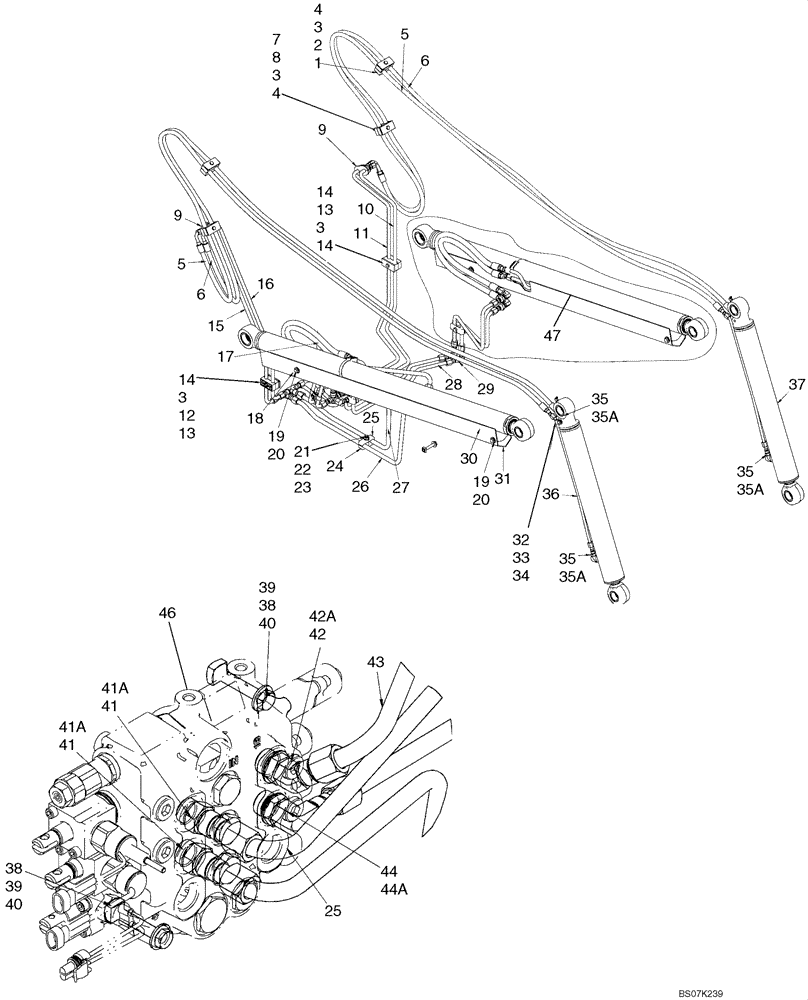

Запчасти Case IH 465 (08-02) - HYDRAULICS - LOADER BUCKET (08) - HYDRAULICS

1

293891A1

SPACER

1/4 Pipe X 33 in. Long

2шт.

2

43130

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

4шт.

3

257859A1

PLATE, SPACER,31.8mm W x 68mm L x 4.76mm Thk

PLATE,SPACER

6шт.

4

257857A1

CLAMP

4шт.

5

87422626

HOSE ASSY.

3400mm (133 7/8 in.)

2шт.

6

87422625

HOSE ASSY.

3415mm (134 13/32 in.)

2шт.

7

293892A1

SPACER

1/4 Pipe X 38 1/2 in. Long

2шт.

8

120062

BOLT,Hex, M8 x 70mm, Cl 8.8

2шт.

9

376523A2

SUPPORT,1/2"

4шт.

10

87668637

HYD TUBE,12.7 mm OD

Curl LH

1шт.

11

87668636

HYD TUBE,12.7 mm OD

Dump LH

1шт.

12

386045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 8.8

2шт.

13

259905A1

SPACER

1/4 Pipe X 31 1/4 in. Long

2шт.

14

257919A1

CLAMP BRACKET

2шт.

15

87425203

HYD TUBE,12.7 mm OD x 706.8, 306.4 mm L

Curl RH

1шт.

16

87425204

HYD TUBE,12.7 mm OD x 691.4, 308.7 mm L

Dump RH

1шт.

17

252961A2

HOSE

775mm (30 1/2 in.)

2шт.

18

253305A4

TUBE,443, 94 mm Length

1шт.

19

86639325

WASHER,10.8mm ID x 24.5mm OD x 3mm Thk

8шт.

20

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

8шт.

21

86624176

WASHER,11mm ID x 20mm OD x 2mm Thk

6шт.

22

86512554

NUT,M10 x 1.5, Cl 10

3шт.

23

120069

BOLT,M10 x 1.5 x 56.58mm OAL, Cl 8.8

1шт.

24

D120613

CLAMP,20mm ID

1шт.

25

D120614

CLAMP,25mm W x 68mm L x 9mm Thk

4шт.

26

87365159

HYD TUBE,11.66 mm ID x 15.88 mm OD x 357.3, 856.1 mm L

Curl

1шт.

27

87447747

TUBE,15.9 mm OD

Dump

1шт.

28

419000A1

TUBE

Lift, LH

2шт.

29

216791

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree

2шт.

30

253307A4

TUBE,843, 83 mm Length

Lift Cylinder, RH

1шт.

31

253312A1

PROTECTOR

Lift Cylinder Cover, RH

1шт.

32

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

33

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

34

86637978

CLAMP,9.5mm, Coat, 8.7mm Bolt Hole, P Type

2шт.

35

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

Incl 35A

4шт.

35a

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

4шт.

36

254351A4

TUBE,591 mm Length

2шт.

37

258426A3

CYLINDER ASSY.,Double Acting, 34.9mm Rod, 525mm Stroke

See Fig 08-14

2шт.

37

258426A3R

465, TIER 3, ASN N7M452623

REMAN-HYD CYLINDER

2шт.

37

258426A3C

Return Number

CORE-HYD CYLINDER

2шт.

38

86625253

WASHER,11mm ID x 24mm OD x 2mm Thk

2шт.

39

230427A1

SQUARE NUT,M10 x 1.5mm, Cl 8

4шт.

40

120070

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

2шт.

41

325059

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

Incl 41A

2-3шт.

41a

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

2шт.

42

330345

45 ELBOW,45 Degree, 7/8"-14 x 7/8"-14, O-Ring

Incl 42A

1шт.

42a

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

43

87447877

HYD TUBE,15.9 mm OD

Raise

1шт.

44

164910

90 ELBOW,7/8" - 14 JIC x 7/8" - 14 ORB

Incl 44A

1шт.

44a

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

45

87434194

HYD TUBE,15.88 mm OD

Lower

1шт.

46

87583285

VALVE

Control, Manual Control; See Fig. 08-20

1шт.

46

87546974

HYDRAULIC VALVE

Control, Pilot Control; See Fig. 08-21

1шт.
