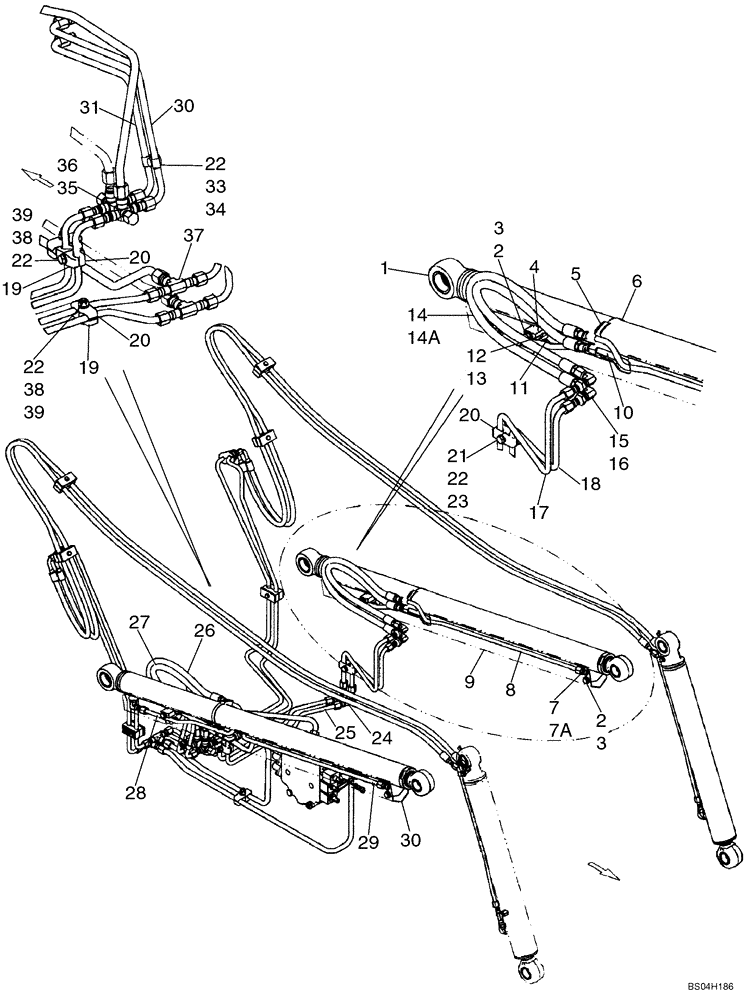

Запчасти Case IH 465 (08-01) - HYDRAULICS - LOADER LIFT (08) - HYDRAULICS

1

139091A3

CYLINDER ASSY.,Double Acting, 44.4mm Rod, 1245mm Stroke

Lift; 63.5 dia Cylinder, 44.4 dia Rod; See Figure 08-12

2шт.

1

139091A3R

465, TIER 3, ASN N7M452623

REMAN-HYD CYLINDER

2шт.

1

139091A3C

Return Number

CORE-HYD CYLINDER

2шт.

2

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

8шт.

3

86639325

WASHER,10.8mm ID x 24.5mm OD x 3mm Thk

8шт.

4

197509A1

PROTECTOR

2шт.

5

87741013

SADDLE

Dual Tube Saddle

2шт.

5

255245A1

BLOCK

Dual Tube Saddle; No Longer Used, Order 87741013

2шт.

6

86625033

HOSE CLAMP,77.7mm - 101.6mm, Worm Gear

2шт.

7

128818

UNION,3/4" - 16 ORB x 3/4" - 16 JIC

Incl. 7A

2шт.

7a

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

8

87741009

HYD TUBE

Left Hand Lift Cylinder Rod End, 869mm (34 7/32 in.) Length; If Used

1шт.

8

253311A4

TUBE,843, 83 mm Length

Left Hand Lift Cylinder Rod End, 843mm (33 3/16 in.) Length; If Used

1шт.

9

253313A1

PROTECTOR

Lift Cylinder Left Hand

1шт.

10

87741011

HYD TUBE

Tube, Left Hand Lift Cylinder Base End, 103mm (4 1/6 in.) Length From Bend To Short Side Tube (Hose End); If Used

1шт.

10

253309A4

TUBE,443, 62 mm Length

Left Hand Lift Cylinder Base End, 78mm (3 1/16 in.) Length From Bend To Short Side Tube (Hose End); If Used

1шт.

11

197508A1

HOLDER

2шт.

12

43130

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

2шт.

13

9628098

NUT,M8 x 1.25, Cl 10

2шт.

14

128830

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 ORB

Incl. 14A

2шт.

14a

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

15

524036

BHD LOCK NUT,Blkhd, 3/4"-16

4шт.

16

248973

ELBOW,90º Blkhd, 3/4"-16, 37º x 3/4"-16, 37º

4шт.

17

87434196

HYD TUBE,12.7 mm OD

Left Hand Lift, Raise

1шт.

18

87425293

HYD TUBE,12.7 mm OD x 305, 194 mm L

Left Hand Lift, Lower

1шт.

19

D120679

CLAMP,Tube, 1/2"

1/2

3шт.

20

D120614

CLAMP,25mm W x 68mm L x 9mm Thk

3шт.

21

120068

BOLT,Hex, M10 x 40mm, Cl 8.8

1шт.

22

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

7шт.

23

230427A1

SQUARE NUT,M10 x 1.5mm, Cl 8

Square, M10 x 1.5

1шт.

24

216791

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree

2шт.

25

419000A1

TUBE

Lift, Left Hand

2шт.

26

252962A2

HOSE

Lift Cylinder Rod End

2шт.

27

252961A2

HOSE

Lift Cylinder Base End

2шт.

28

87741012

HYD TUBE

Right Hand Lift Cylinder Base End, 103mm (4 1/16 in.) Length From Bend To Short Side Tube (Hose End); If Used

1шт.

28

253305A4

TUBE,443, 94 mm Length

Right Hand Lift Cylinder Base End, 78mm (3 1/16 in.) Length From Bend To Short Side Tube (Hose End); If Used

1шт.

29

87741010

HYD TUBE

Right Hand Lift Cylinder Rod End, 869mm (34 7/32 in.); If Used

1шт.

29

253307A4

TUBE,843, 83 mm Length

Right Hand Lift Cylinder Rod End, 843mm (33 3/16 in.); If Used

1шт.

30

253312A1

PROTECTOR

Lift Cylinder Right Hand

1шт.

31

87425295

HYD TUBE,12.7 mm OD x 298.5, 194.5 mm L

Right Hand Lift, Lower

1шт.

32

87425294

HYD TUBE,12.7 mm OD x 304.3, 276.8 mm L

Right Hand Lift, Raise

1шт.

33

86010402

CLAMP,12.7mm, Coat, 10.3mm Bolt Hole, P Type

2шт.

34

300383

BOLT,Hex, M10 x 1.5 x 16mm, Cl 8.8, Full Thd

1шт.

35

280107A1

TEE

With Side Outlet

2шт.

36

262159

CAP,3/4" - 16 Fem JIC

2шт.

37

218-1584

TEE,37 Degree, 3/4"-16 x 7/8"-14, Br

2шт.

38

86512554

NUT,M10 x 1.5, Cl 10

2шт.

39

325829

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

2-3шт.
