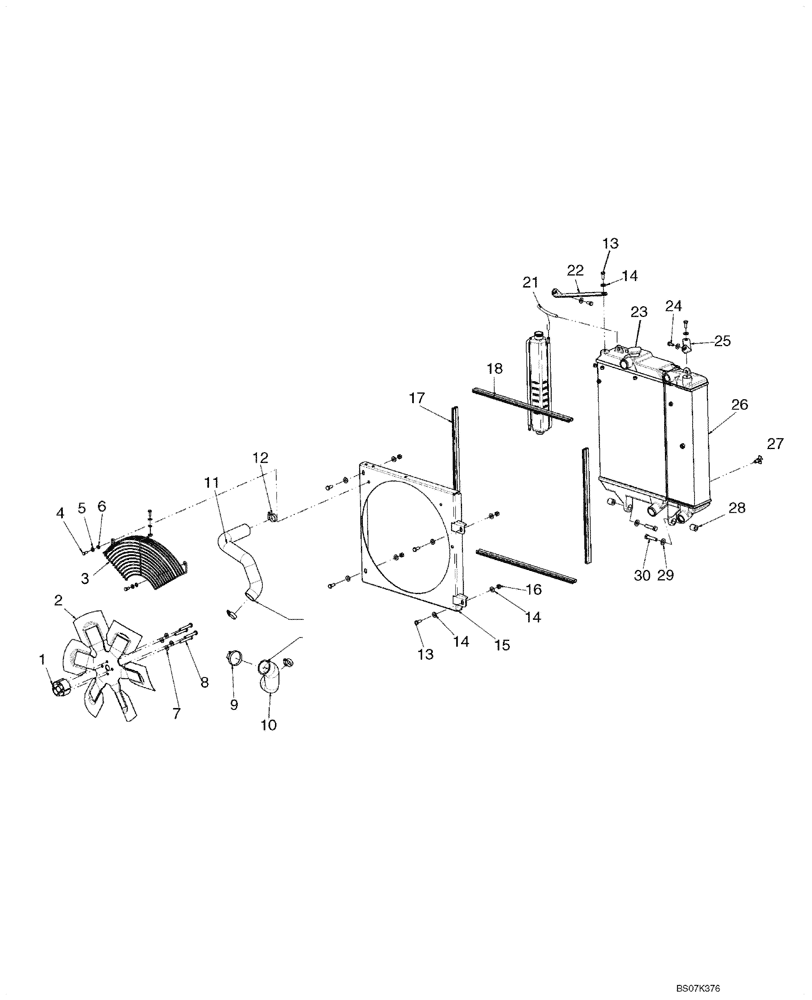

Запчасти Case IH 465 (02-01) - FAN, RADIATOR/OIL COOLER - COOLANT RECOVERY SYSTEM (02) - ENGINE

1

87565745

SPACER

Fan

1шт.

2

87680032

FAN,6 Blades, 517.9mm OD

518mm, 24 Deg

1шт.

2

87592426

FAN

518mm, 33 Deg; Used On High Flow Models

1шт.

3

87594970

GUARD

Fan

1шт.

4

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

3шт.

5

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

3шт.

6

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

3шт.

7

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

8

43144

BOLT,Hex, M10 x 70mm, Cl 8.8

4шт.

9

86625032

HOSE CLAMP,88.9mm ID - 65mm ID

If Used

1шт.

9

45014

HOSE CLAMP,2.06” - 3” , Worm Gear

If Used

1шт.

10

87661384

RADIATOR HOSE,46.00 mm ID, 58.00 mm ID x 268.30 mm, SAE J20, SAE 20R4 CLASS D1 OR D2

Lower

1шт.

11

87661383

RADIATOR HOSE,45.00 mm ID x 270.10 mm, SAE 20R4 Class D1 Or D2

Upper

1шт.

12

84674

HOSE CLAMP,33.3mm - 57.1mm, Worm Gear

3шт.

13

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

6шт.

14

86625253

WASHER,11mm ID x 24mm OD x 2mm Thk

12шт.

15

87715898

SHROUD

1шт.

16

100016

NUT,M10 x 1.5, Cl 8

4шт.

17

87648128

RUBBER SEAL,562mm L

Bulb

2шт.

18

87578980

RUBBER SEAL,590mm L

Bulb

2шт.

19

87020980

BOTTLE,2L

Recovery Bottle; Incl 20

1шт.

20

257884A1

CAP

Cap

1шт.

21

87019215

HOSE,7.90 mm ID x 445.00 mm, SAE 20R3 Class D2

Coolant Recovery

1шт.

22

87706223

BRACKET

Upper Radiator Mount, RH

1шт.

23

87687375

RADIATOR CAP

1шт.

24

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

2шт.

25

87706238

BRACKET

Upper Radiator Mount, LH

1шт.

26

87660842

RADIATOR

Radiator/Oil Cooler Module; See Fig 02-02

1шт.

27

86625234

DRAINCOCK/TAP SUPPLY,1/4" NPTF

1шт.

28

87626729

SPACER,12.8mm ID x 25.4mm OD x 25.4mm L

2шт.

29

86625254

WASHER,13.5mm ID x 28mm OD x 2.5mm Thk

2шт.

30

87021825

BOLT,Hex, M12 x 55mm, Cl 10.9

2шт.
