Запчасти Case IH 465 (06-22) - PUMP, TANDEM (87350025) (06) - POWER TRAIN

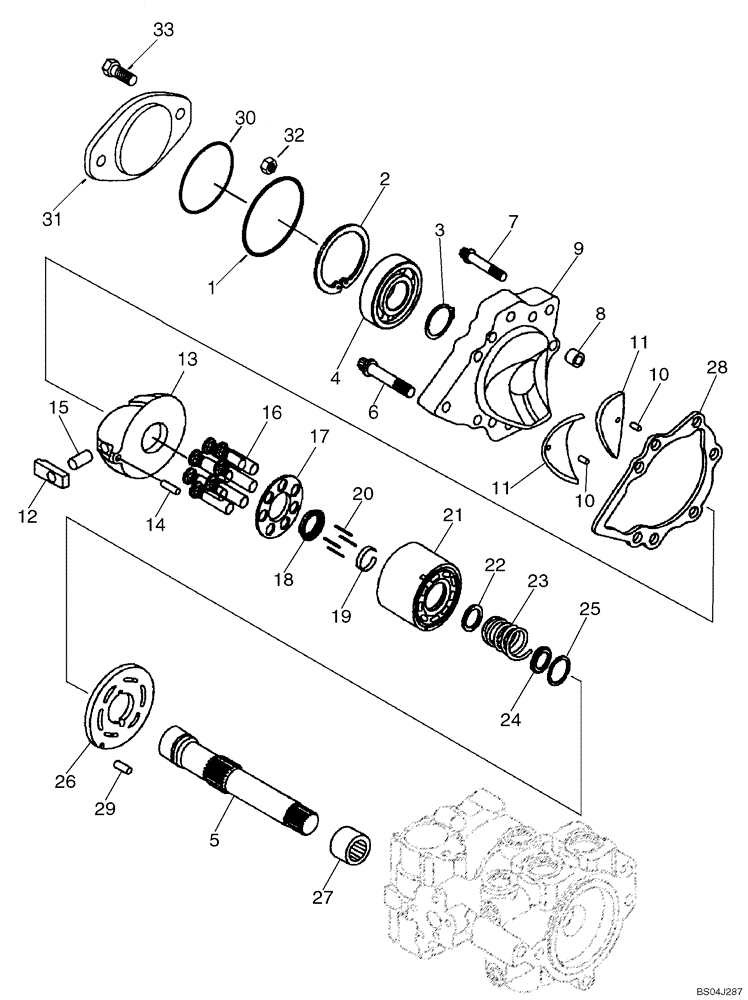

Схема запчастей Case IH 465 - (06-22) - PUMP, TANDEM (87350025) (06) - POWER TRAIN
8
12
4
33
18
31
21
23
25
5
10
2
1
6
14
17
7
15
32
22
10
13
11
3
16
11
27
9
29
28
20
30
26
19
24

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

Rear Pump

1шт.

87350025

PUMP,46 CC

Incl. 2 - 32

1шт.

87350025R

REMAN-HYD PUMP

REMANUFACTURED HYDRAULIC PUMP

1шт.

87350025C

CORE-HYDRAULIC PUMP

Return Number, HYDRAULIC PUMP

1шт.

1

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

2

103-21281

SNAP RING,66.92mm ID x 2.36mm W, Int

1шт.

3

100-11137

SNAP RING,#137, Ext

1шт.

4

A29183

BALL BEARING,34.99mm ID x 71.99mm OD x 16.94mm W

1шт.

5

87039623

SHAFT

1шт.

6

223677A1

SCREW,Torx, 7/16"

7/16 in

6шт.

7

223680A1

SPECIAL BOLT,Torx, 3/8"

3/8 in

1шт.

8

N13994

SPACER

1шт.

87050526

COVER ASSY

Incl. Ref 9 - 11

1шт.

9

NSS

NOT SOLD SEPARAT

Cover; Incl. 10, 11

1шт.

10

193494A1

PIN, ROLL

2шт.

11

87050524

JOURNAL

2шт.

12

N13224

SLEEVE

1шт.

13

87050523

PLATE ASSY.

1шт.

14

324610A1

PIN

1шт.

15

N13254

PIN

1шт.

402366A1

KIT

Cylinder Block; Components Not Serviced Separately; Incl. 16 - 25

1шт.

16

NSS

NOT SOLD SEPARAT

Piston

14шт.

17

NSS

NOT SOLD SEPARAT

Retainer

2шт.

18

115942A1

GUIDE

2шт.

19

115943A1

SNAP RING

Retaining

2шт.

20

110873A1

PIN,2.38mm OD x 33.53mm L

6шт.

21

NSS

NOT SOLD SEPARAT

Block, Cylinder

2шт.

22

115946A1

WASHER

Washer

2шт.

23

115948A1

SPRING

2шт.

24

115950A1

WASHER

Washer

2шт.

25

NSS

NOT SOLD SEPARAT

Ring, Retaining

2шт.

26

128929A1

LARGE PLATE

PLATE, LARGE

1шт.

27

NSS

NOT SOLD SEPARAT

Bearing, Needle

1шт.

28

H436704

GASKET,0.79mm Thk

1шт.

29

38-11207

LOCK PIN,4.76mm OD x 11.11mm L, Slotted

1шт.

30

87013729

O-RING,0.07" Thk x 3.739" ID, -44, Cl 5, 75 Duro

Not Included In Tandem Pump Assy; Included in 140008A1 Seal Kit

1шт.

31

100703A1

PLATE, SPACER

PLATE,SPACER

2шт.

32

425-108

NUT,1/2" - 13, Gr 5

2шт.

33

13-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

2шт.

140008A1

GASKET KIT

Overhaul Seal And Gasket Kit; Incl. (10) Rings, (20) O-Rings, (6) Gaskets, (2) Seals; Incl. Ref 34

1шт.

Выбрано товаров: 40
