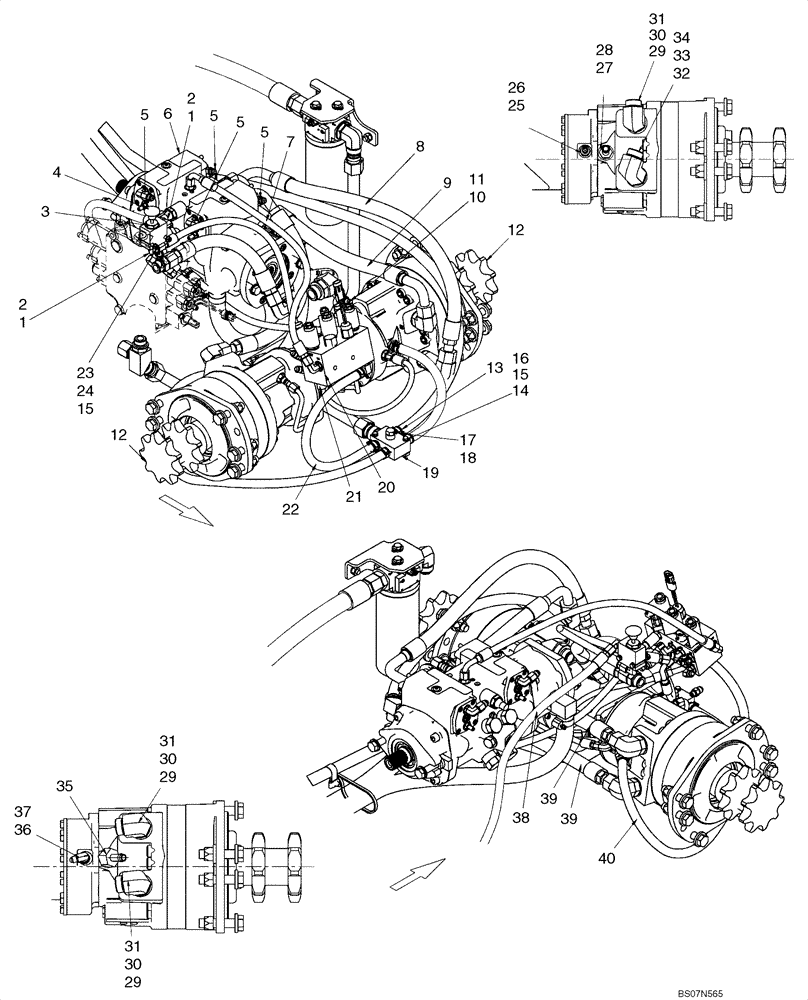

Запчасти Case IH 465 (06-12) - HYDROSTATICS - PUMP TO DRIVE MOTORS (PILOT CONTROL) (06) - POWER TRAIN

1

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. 2

2шт.

2

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

3

87604076

VALVE, EXHAUST, OVER

Boom Override

1шт.

4

87568435

DECAL

Boom Override

1шт.

5

87604074

ADAPTER

Connector, 6 FJ X 6 MJ With 1.2 Orifice

4шт.

6

87546977

PUMP,46 CC

Rexroth, A22 36 Bar, 5.7 Orifice; See Fig 06-23

1шт.

6

87546977R

Remanufactured Hydraulic Pump

REMAN-HYD PUMP

1шт.

6

87546977C

Return Number

CORE-HYDRAULIC PUMP

1шт.

7

87547040

HOSE

DA Pressure, 706mm (22 13/16 in.)

1шт.

8

87640188

HOSE

775mm (30 1/2 in.)

1шт.

9

87640183

HOSE

555mm (21 27/32 in.)

1шт.

10

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

Incl 11

1шт.

11

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

12

87349721

HYDRAULIC MOTOR,660CC

Drive; See Fig 06-31

2шт.

12

87349721R

REMAN-HYD MOTOR

465 - SKID STEER - SERIES 3 ASN N7M452623

2шт.

12

87349721C

CORE-MOTOR HYDRAULIC

Return Number

2шт.

13

87443511

CLAMP,22mm - 26mm, CTB-24, Style C

1шт.

14

86977790

BOLT,Hex, M6 x 45mm, Cl 8.8

2шт.

15

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

6шт.

16

87404992

SQUARE NUT,M6 x 1.0, Cl 8

2шт.

17

76349

PLUG,9/16" - 18 ORB

Incl. 18

1шт.

18

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

19

87437351

MANIFOLD

Oil Return

1шт.

20

87546972

HYDRAULIC VALVE

Pilot Brake And Two Speed; See Fig 06-14; If Used

1шт.

20

87756436

BRAKE VALVE

Pilot Brake And Two Speed; See Fig 07-04

1шт.

21

76355

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

1шт.

22

87547047

HOSE,12.7mm ID x 520mm L

Multi Valve Drain

1шт.

23

120056

BOLT,M6 x 1.0 x 54.15mm, Cl 8.8

2шт.

24

86512440

NUT,M6, Cl 10

2шт.

25

139398

HYD CONNECTOR,9/16" - 18 ORB x 7/16" - 20 JIC

Incl 26

1шт.

26

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

27

87010108

FITTING,1/2" Hose Bead x 3/4" - 16 ORB

Incl 28

1шт.

28

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

29

9846848

90 ELBOW,1-3/16"-12 ORFS x 1-1/16"-12 ORB

Incl. 30, 31

3шт.

30

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

31

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

32

87661865

HYD CONNECTOR,1-3/16" - 12 ORFS x 1-1/16" - 12 ORB

Incl 33, 34

1шт.

33

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

34

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

35

87372529

45 ELBOW,1/2" Barb x 3/4"-16 ORB

1шт.

36

86512934

90 ELBOW,90 Degree, 7/16"-20, 37 Degree x 9/16"-18, O-Ring

Incl 37

1шт.

37

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

38

87575605

HOSE

Dump Valve Supply, 885mm (34 27/32 in.)

1шт.

39

87640182

HOSE,19.05mm ID x 580mm L, SAE 100R13

580mm (22 13/16 in.)

2шт.

40

87665697

HOSE,0.50" ID

Multi Valve Drain

1шт.
