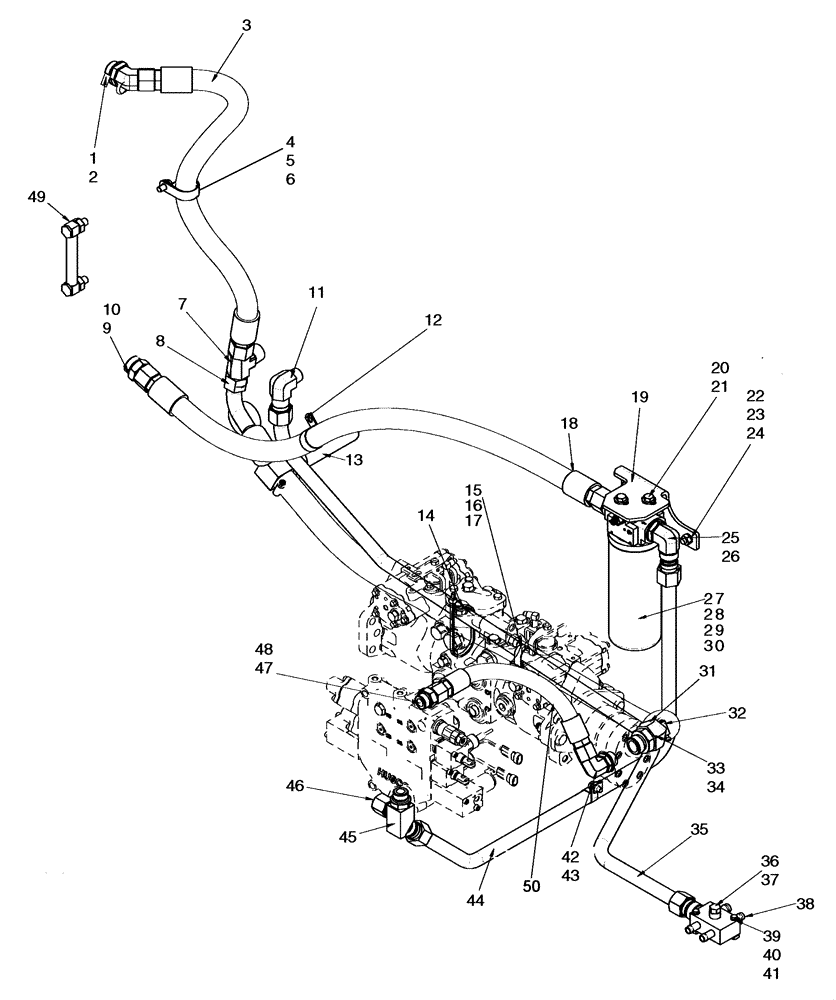

Запчасти Case IH 465 (06-07) - HYDROSTATICS - SUPPLY, RETURN AND DRAIN (06) - POWER TRAIN

1

86977688

45 ELBOW,1-5/16" - 12 JIC x 1-5/16" - 12 ORB

Incl 2

1шт.

2

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

3

87668625

HOSE

Oil Cooler Return, 855mm (33 21/32 in.)

1шт.

4

87301688

CLAMP,41.2mm, Coat, P Type

1шт.

5

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

1шт.

6

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

1шт.

7

9790547

TEE,1 5/16"-12, 37 Degree x 1"-11 1/2, NPTF Br

1шт.

8

87361407

HOSE ASSY.

Tandem Pump Suction, 1310mm (51 9/16 in.)

1шт.

9

378970

HYD CONNECTOR,1-5/16" - 12 ORB x 1-5/16" - 12 JIC

Incl 10

2шт.

10

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

2шт.

11

9615396

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 3/4"-14, NPTF

1шт.

12

86637998

CLAMP,38.1mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

13

189310A1

STRAINER ASSY.

Suction Line Filter

1шт.

14

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

1шт.

15

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

16

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

17

86637977

CLAMP,25.4mm, Coat, 8.7mm Bolt Hole, P Type

2шт.

18

87665168

HOSE,25.4mm ID x 1200mm L, SAE 100R4

Filter To Cooler, 1200mm (47 1/4 in.)

1шт.

19

87707681

ANGLE

Filter Mount

1шт.

20

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

2шт.

21

86639325

WASHER,10.8mm ID x 24.5mm OD x 3mm Thk

4шт.

22

140028

WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

2шт.

23

100016

NUT,M10 x 1.5, Cl 8

2шт.

24

86512446

CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 8.8

2шт.

25

268277

90 ELBOW,1-5/16" - 12 JIC x 1-5/16" - 12 ORB

Incl 26

1шт.

26

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

27

87430661

FILTER

Incl 28, 29, 30

1шт.

28

N13268

PRESSURE SWITCH

1шт.

29

87010593

ELEMENT

Filter

1шт.

30

87439984

FILTER HEAD

1шт.

31

87348364

HOSE ASSY.

Gear Suction, 1380mm (54 5/16 in.)

1шт.

32

87039085

HOSE CLAMP,32mm - 54mm

2шт.

33

87033824

FITTING,45 Degree, 1 1/4" Hose x 1 5/16"-12 ORB Beaded

Incl 34

1шт.

34

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

35

87440223

HYD TUBE,25.4 mm OD x 1403, 391.6 mm L

Case Drain

1шт.

36

76349

PLUG,9/16" - 18 ORB

Incl. 37

1шт.

37

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

38

87437351

MANIFOLD

1шт.

39

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

40

87404992

SQUARE NUT,M6 x 1.0, Cl 8

2шт.

41

86977790

BOLT,Hex, M6 x 45mm, Cl 8.8

2шт.

42

84570

90 ELBOW,7/8" - 14 JIC x 1-1/16" - 12 ORB

Incl 43

1шт.

43

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

44

87419597

HYD TUBE,25.40 mm OD x 658.9, 414.8 mm L

1шт.

45

87421217

ADAPTER,1-5/16" - 12 JIC x 1-1/16" - 12 JIC x 1-1/16" - 12 ORB

1шт.

46

219606

CAP,1-1/16" - 12 JIC

1шт.

47

86507102

HYD CONNECTOR,1-1/16" - 12 ORB x 7/8" - 14 JIC

Incl 48

1шт.

48

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

49

87374752

GAUGE

Liquid Level

1шт.

50

87597562

HOSE,15.88mm ID x 500mm L

1шт.
