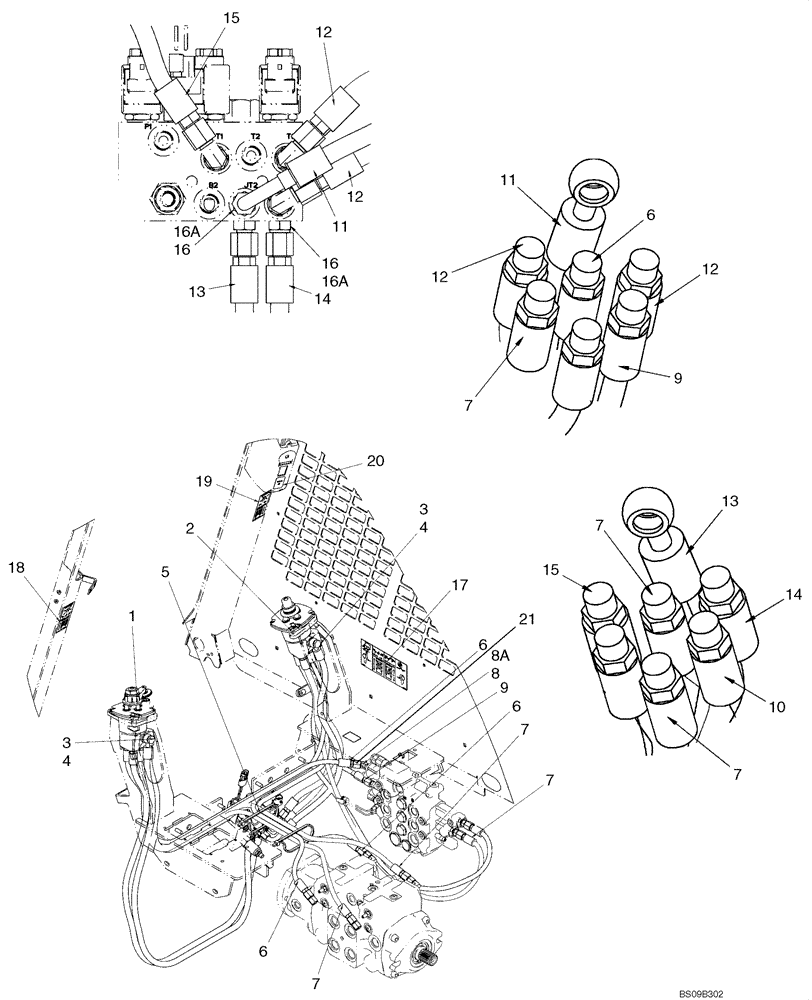

Запчасти Case IH 450 (06-01) - JOYSTICK CONTROL PLUMBING, H PATTERN (PILOT CONTROL) (06) - POWER TRAIN

87703836

SERVICE KIT

Kit, H Pattern Pilot Control; Incl 1 - 16A

1шт.

1

87357240

HYDRAULIC VALVE

Joystick Valve, H-Pattern, LH; See Fig 06-03; If Used

1шт.

1a

87740388

HYDRAULIC VALVE

Replaces 87357240; See Fig 06-03

1шт.

2

87357241

HYDRAULIC VALVE

Joystick Valve, H-Pattern, RH; See Fig 06-04; If Used

1шт.

2a

87740389

HYDRAULIC VALVE

Replaces 8735724; See Fig06-04

1шт.

3

87622364

BOLT

Banjo Bolt, 3/4 Hole

2шт.

4

933610R1

SEALING RING,M14 x 18 x 1.8

4шт.

5

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

2шт.

6

87684247

HOSE

Hose, Pilot, 1000mm (39 3/8 in.)

3шт.

7

87547030

HOSE,6.35 mm ID x 918.00 mm

Pilot

3шт.

8

87593247

ELBOW

Incl 8A

1шт.

8a

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

8b

87604075

ADAPTER

Connector 4FJ X 4MJ W/ 0.9 Orifice

1шт.

9

87547059

HOSE,6.35 mm ID x 770.00 mm

Pilot

1шт.

10

87547031

HOSE,6.35 mm ID x 2090.00 mm

Pilot

1шт.

11

87575292

HOSE,9.53mm ID x 662mm L

Hose, Joystick Supply, 662mm (26 1/16 in.)

1шт.

12

87547036

HOSE,9.65 mm ID x 720.00 mm

Joystick Supply Or Drain

2шт.

13

87684251

HOSE,9.53mm ID x 1360mm L

Hose, Joystick Supply, 1360mm (53 17/32 in.)

1шт.

14

87684249

HOSE

Hose, Joystick Supply, 1355mm (53 11/32 in.)

1шт.

15

87684240

HOSE

Hose, Joystick Drain, 792mm (31 3/16 in.)

1шт.

16

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

Incl 16A

2шт.

16a

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

17

87715687

DECAL

Decal, Control Identification, H Pattern

1шт.

18

87715689

DECAL

Decal, H Pattern, LH

1шт.

19

87715690

DECAL

Decal, H Pattern, RH

1шт.

20

87746890

DECAL

Decal, H Pattern

1шт.

21

87604075

ADAPTER

6FJ X 6MJ W/ 1.0 Orifice

1шт.
