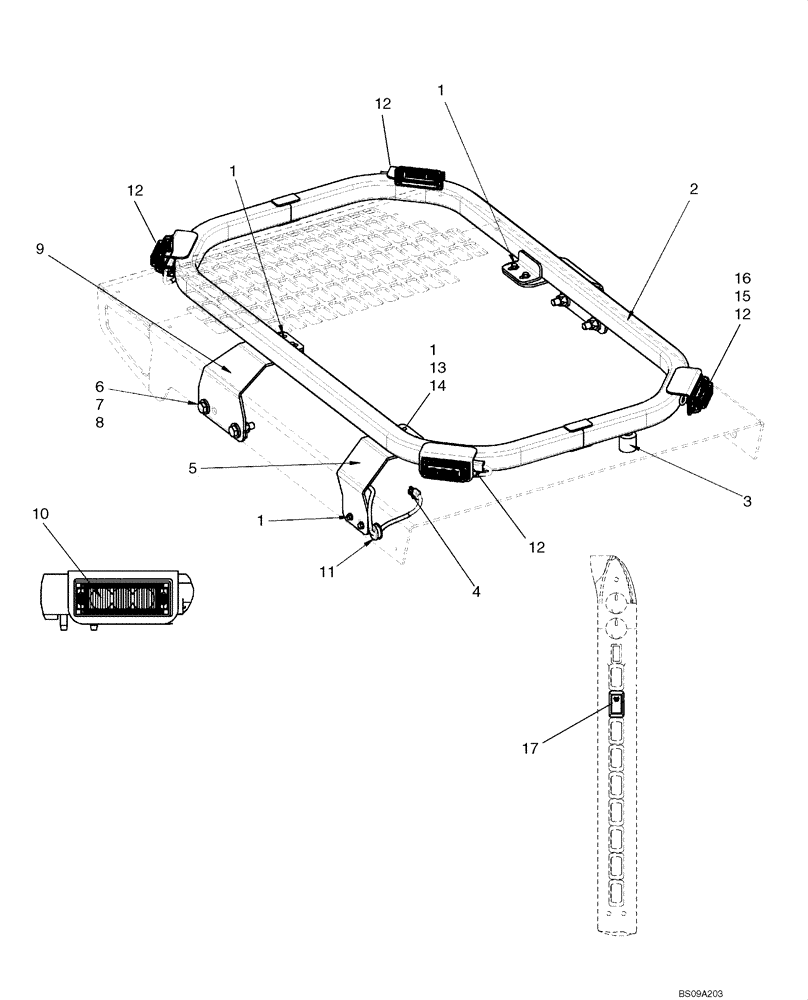

Запчасти Case IH 450 (04-32) - STROBE LIGHT (04) - ELECTRICAL SYSTEMS

87652336

SERVICE KIT

Strobe Light; Incl 1 - 12

1шт.

1

86625224

SELF-TAP SCREW,HWH, 1/4" - 20 x 3/4"

6-8шт.

2

87745184

FRAME

Replaces 87727417

1шт.

3

87727414

BUMPER

Rubber Feet

1шт.

4

87745595

HARNESS

Strobe; Replaces 87723831; If Used

1шт.

4

84127306

HARNESS

Strobe Harness

1шт.

5

87727865

BRACKET

Wire Guard

1шт.

6

337563

BOLT,M12 x 1.75 x 47.68mm, Cl 10.9

4шт.

7

412672

NUT,Hex, M12 x 1.75, Cl 10

4шт.

8

86625256

WASHER,13.3mm ID x 28.5mm OD x 4mm Thk

8шт.

9

87727413

BRACKET

Strobe Mounting

2шт.

10

87745165

LIGHT

Amber Strobe, LED; Replaces 87634137

4шт.

11

87723416

GROMMET

If Used

1шт.

11

87497179

GROMMET

Grommet, 25.4 OD X 5.25 ID X 8.0

1шт.

12

263117

CABLE TIE,292.1mm L, Nylon, Black

CABLE STRAP

1-5шт.

13

523282

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

14

87016587

WASHER,0.27" ID x 0.62" OD x 0.05" Thk

2шт.

15

280859

NUT,Keps, #6-32

8шт.

16

281045

SCREW,Cross Pan Hd, #6 - 32 x 1"

8шт.

17

133714A1

BEACON SWITCH

Beacon Rocker

1шт.
