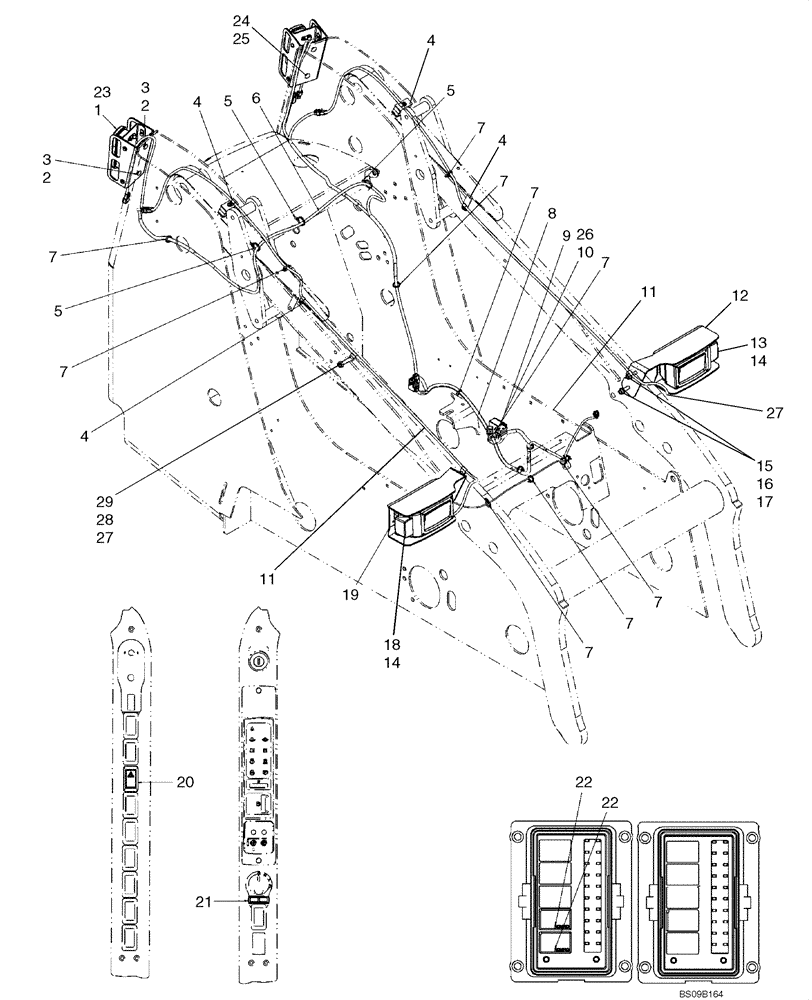

Запчасти Case IH 450 (04-24) - ELECTRICAL - ROAD LIGHTS (NA) (04) - ELECTRICAL SYSTEMS

87676263

SERVICE KIT

Kit, Road Lights (NA); Incl 1 - 22

1шт.

1

REF

INSTRUCTION

Rear Light And Mounting; See Fig 04-27

2шт.

2

86633356

CARRIAGE BOLT,M10 x 34.8mm, Cl 8.8

If Used

4шт.

3

87030549

NUT,M10 x 1.5, Cl 10

If Used

4шт.

4

86637978

CLAMP,9.5mm, Coat, 8.7mm Bolt Hole, P Type

4-6шт.

5

87668737

CABLE TIE,203.2mm L, Nylon, Black

3шт.

6

87673078

HARNESS

Harness, On Road Boom

1шт.

7

263117

CABLE TIE,292.1mm L, Nylon, Black

CABLE STRAP

13шт.

8

87668732

HARNESS

Harness, Road Lights; If Used

1шт.

8

87749673

HARNESS

Harness, Road Lights

1шт.

9

83982664

RELAY

Turn Signal Relay

1шт.

10

9821783

FLASHER UNIT

1шт.

11

87673076

HARNESS

Harness, On Road Boom Jumper

2шт.

12

87721977

BRACKET

Light Bracket, LH; If Used

1шт.

12

87480013

BRACKET

Light Bracket, LH; No Longer Used In This Application

1шт.

12

84132889

BRACKET

Light Bracket, LH

1шт.

13

85821385

LH HEADLAMP,12V

See Fig 04-25

1шт.

14

43435

FLANGE NUT,Hex, M10 x 1.5

If Used

4шт.

15

9706702

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8

2-4шт.

16

140018

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

2-4шт.

17

337475

NUT,M12, Cl 10

2-4шт.

18

85821384

RH HEADLAMP,T4W, 12V, 4W

See Fig 04-26

1шт.

19

87721978

BRACKET

Light Bracket, RH; If Used

1шт.

19

87480014

BRACKET

Light Bracket, RH; No Longer Used In This Application

1шт.

19

84129585

BRACKET

Light Bracket, RH

1шт.

20

87634133

SWITCH

Rocker Switch, Hazard Lights

1шт.

21

86604657

INDICATOR, TURN SIGN

1шт.

22

87655334

RELAY,12V, 35A, Micro

Relay

1-2шт.

23

379888A1

SUPPORT

Rear Turn Signal Bracket

2шт.

24

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

4шт.

25

412141

NUT,M10 x 1.5, Cl 8

4шт.

26

86500939

SELF-TAP SCREW,HWH, #10 - 16 x 3/8"

2шт.

27

86639010

CLAMP,9.5mm, Coat, 13.5mm Bolt Hole, P Type

4шт.

28

9706717

BOLT,Hex, M12 x 1.75 x 70mm, Cl 8.8

1шт.

29

412672

NUT,Hex, M12 x 1.75, Cl 10

1шт.
