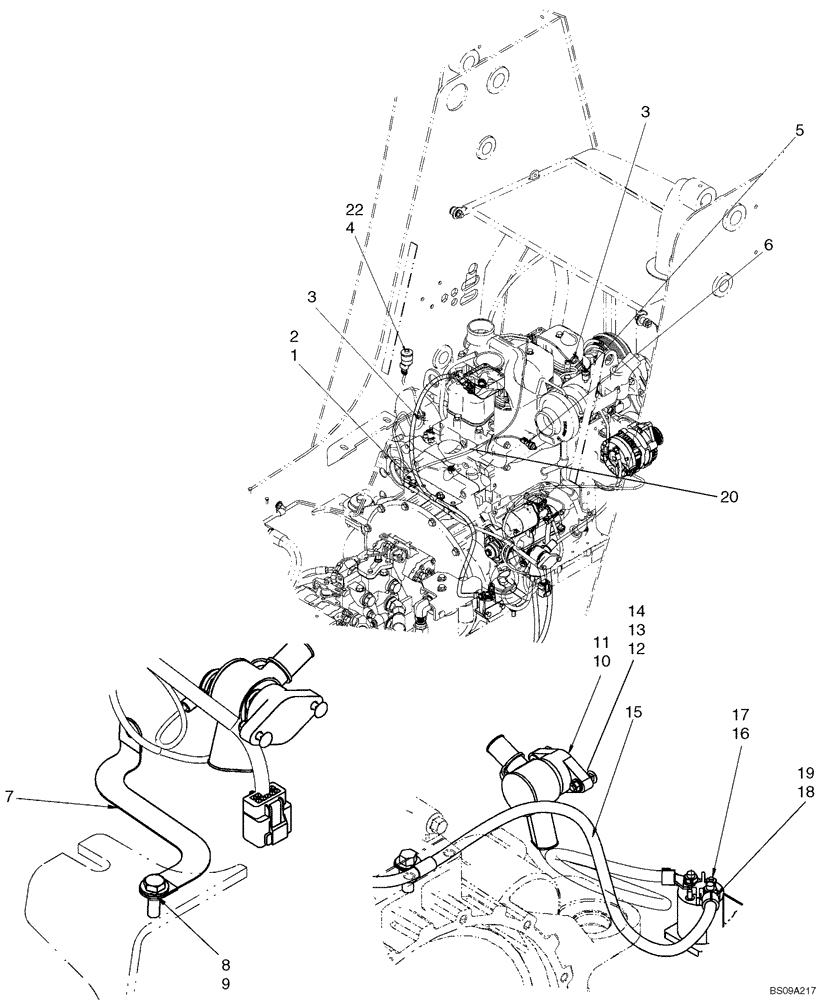

Запчасти Case IH 450 (04-03) - ELECTRICAL - ENGINE (04) - ELECTRICAL SYSTEMS

1

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

2шт.

2

87301588

CLAMP,11.1mm, Coat, 13.5mm Bolt Hole, P Type

Clamp, Insulated 11.1mm, M12 Bolt

2шт.

3

263117

CABLE TIE,292.1mm L, Nylon, Black

CABLE STRAP

3шт.

4

87013666

SWITCH,Air Filter Restriction

Air Restriction Switch

1шт.

5

A166057

TEMPERATURE SENDER,1/2" - 14 NPTF

Oil, Unit

1шт.

6

2852735

PRESSURE SWITCH,Oil Pressure

Oil Pressure Sensor

1шт.

7

86500938

GROUND CABLE

1шт.

8

86625253

WASHER,11mm ID x 24mm OD x 2mm Thk

1шт.

9

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

1шт.

10

87630124

POST

Single Point Power Distribution Block

1шт.

11

87630125

BOOT

Power Distribution Boot

1шт.

12

86512441

CARRIAGE BOLT,Rnd Head, M6 x 1 x 36.6mm, Cl 8.8

2шт.

13

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

2шт.

14

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

2шт.

15

REF

INSTRUCTION

Grid Heater; See Fig. 04-03A

1шт.

16

87825

NUT,#10-32

1шт.

17

80684

LOCK WASHER,4.9mm ID x 8.48mm OD x 1.19mm Thk

1шт.

18

80681

LOCK WASHER,5/16"

2шт.

19

9626568

JAM NUT,Jam, 5/16"-18, G2

2шт.

20

87623352

HARNESS

Harness, NEF Engine

1шт.

21

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP Not Illustrated

1шт.

22

84015293

ELBOW,90 Degree, 1/8"-27 Female x 1/8"-27 Male

1шт.
