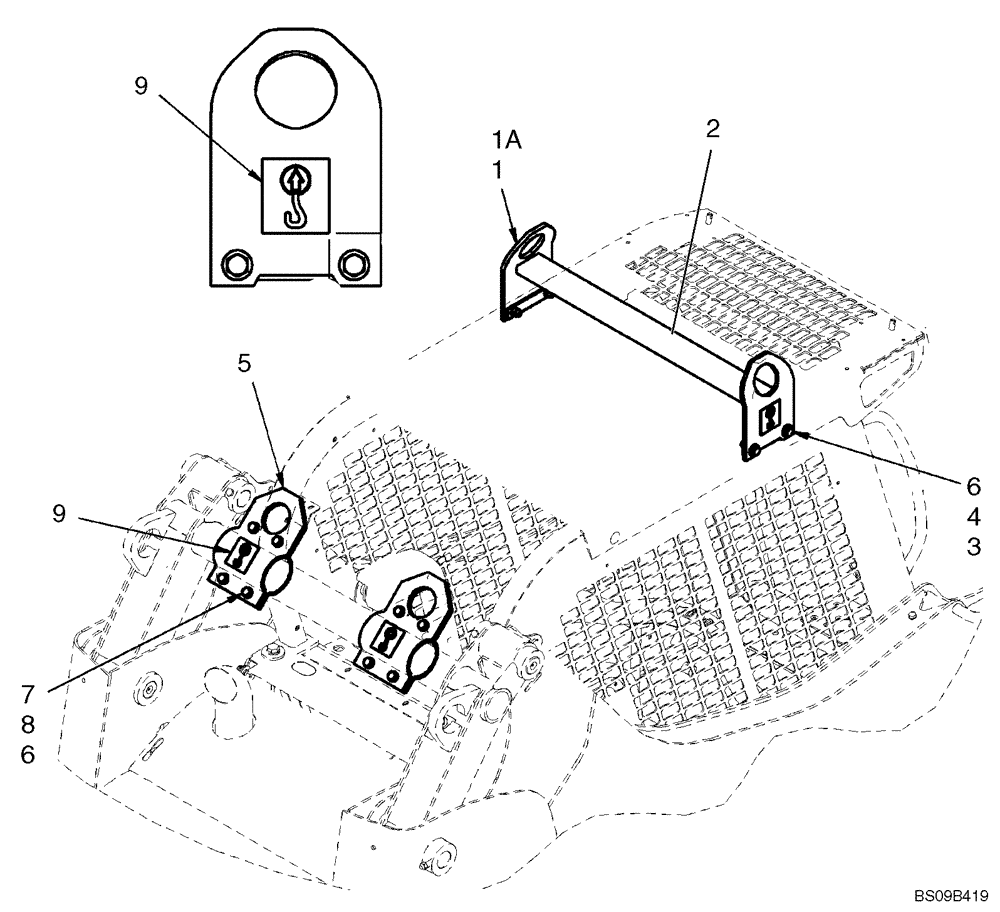

Запчасти Case IH 450 (09-60) - LIFT HOOK 4 POINT (09) - CHASSIS

87639944

SERVICE KIT

Kit, 4-Point Lift Hooks; Incl 1-9

1шт.

1

87684095

BRACKET

Lift Hook; If Used

1шт.

1a

84167894

PLATE

Plate Lift Hooks, Gray; Used Without Crossbar

2шт.

2

87433116

BAR

Doubler

2шт.

3

87533547

NUT,Prev Torque, M12, 1.75mm Pitch, Cl 10

4шт.

4

86625256

WASHER,13.3mm ID x 28.5mm OD x 4mm Thk

4шт.

5

315937A1

WELDABLE LUG

Rear

4шт.

6

337563

BOLT,M12 x 1.75 x 47.68mm, Cl 10.9

12шт.

7

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

16шт.

8

337475

NUT,M12, Cl 10

8шт.

9

139729A1

DECAL

Lift Hook Location

4шт.
