Запчасти Case IH 450 (09-47) - REAR WINDOW - WITHOUT HEAT AND AIR CONDITIONING (09) - CHASSIS

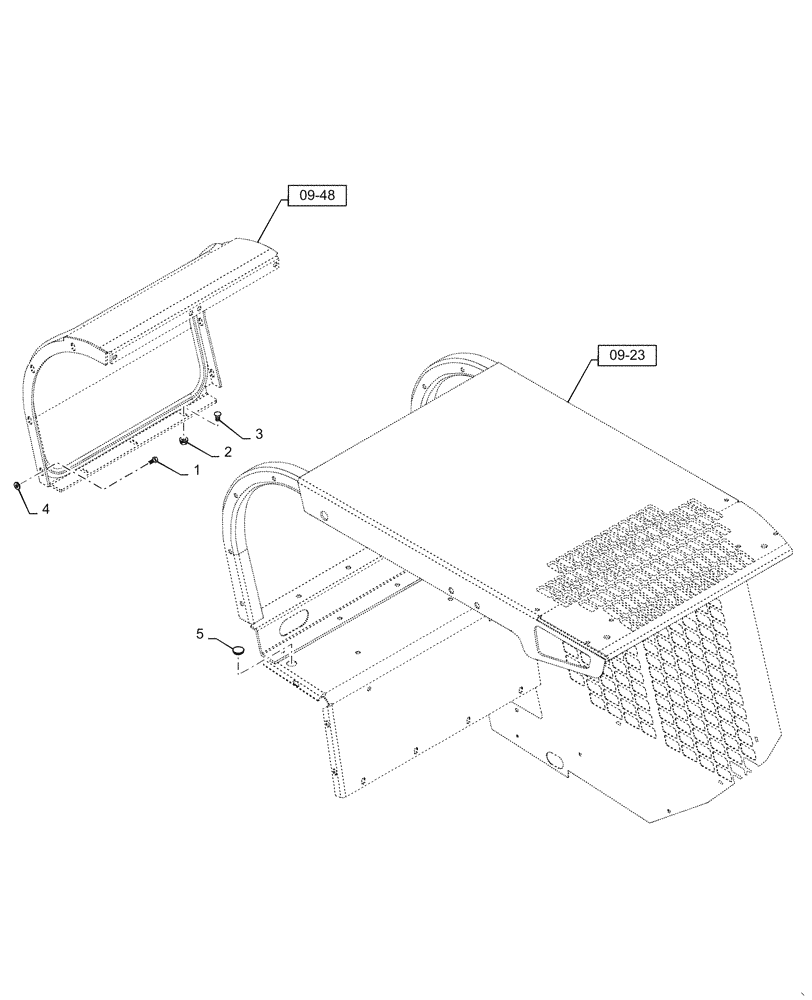

Схема запчастей Case IH 450 - (09-47) - REAR WINDOW - WITHOUT HEAT AND AIR CONDITIONING (09) - CHASSIS
1
09-23
09-48
4
5
2
3

Артикул

Название

Примечание

Количество

1

9804256

BOLT,Hex, M6 x 1 x 20mm, Full Thd, Cl 8.8

11шт.

2

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

3шт.

3

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

3шт.

4

86624182

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

3шт.

5

86625129

PLUG,Dome, 1" Hole, Nylon

8шт.

09-48

87470207

WINDOW

W/O Heat and A/C

1шт.

Выбрано товаров: 6
