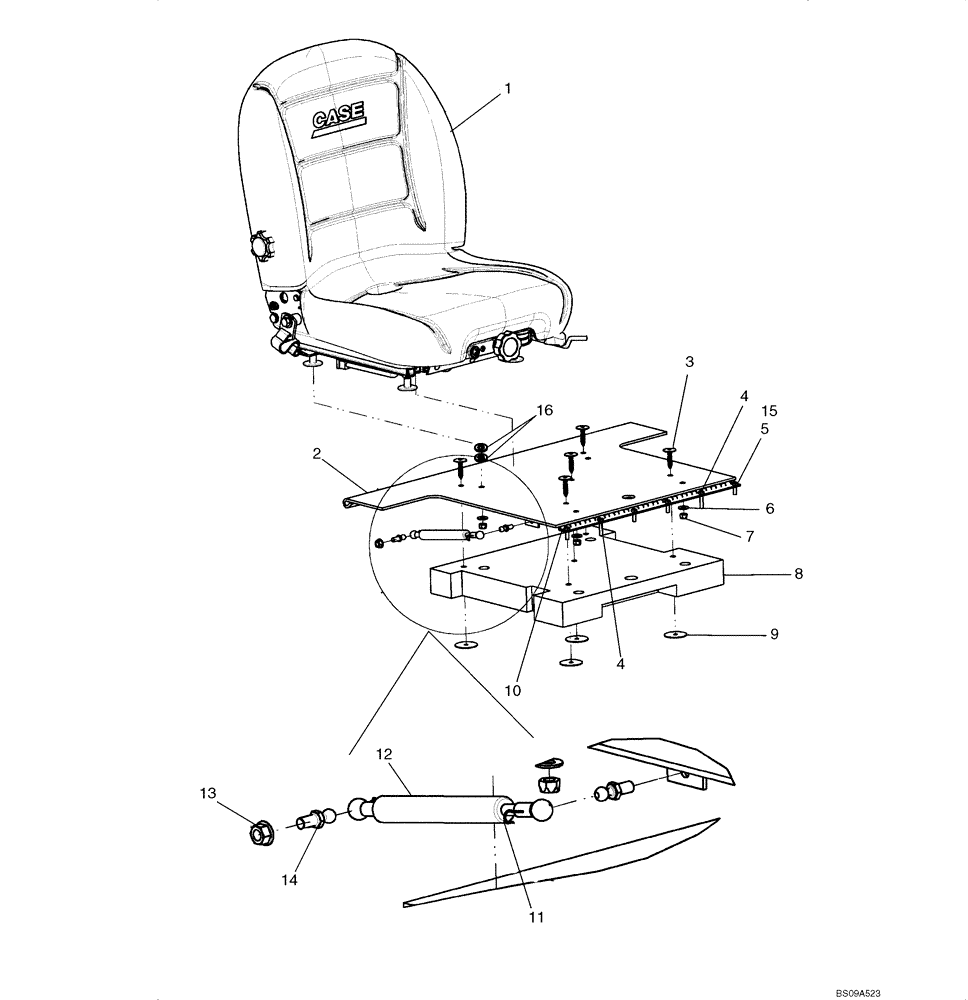

Запчасти Case IH 450 (09-36) - SEAT MOUNTING - DELUXE SUSPENSION SEAT (09) - CHASSIS

1

87662514

SEAT

Suspension Seat Assembly - Deluxe, Cloth Seat; See Fig 09-36A

1шт.

2

87676113

PLATE

Seat Hinge Plate

1шт.

3

348452A1

FASTENER,Push-In, 37mm L, Nylon

Push In Fastener

5шт.

4

80120101

BOLT

M6 X 30, 8.8; If Used

2шт.

5

120100

BOLT,M6 x 20mm, Cl 8.8

If Used

4шт.

6

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

4шт.

7

86629544

NUT,5/16” – 18, GR B

4шт.

8

87676116

FOAM INSULATION

Pad, Seat Noise Control

1шт.

9

348434A1

WASHER,7.14mm ID x 44.5mm OD x 1.3mm Thk

5шт.

10

87676121

STIFFENER

Seat Hinge Stiffener

1шт.

11

254307A1

CLIP

If Used

2шт.

12

189787A2

SHOCK ABSORBER

1шт.

13

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

2шт.

14

189609A1

BALL STUD,M8 x 1.25

Ball Stud, 10mm Ball X M8 X 1.25 Thd

2шт.

15

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

4-6шт.

16

87015284

WASHER,8.8mm ID x 21.5mm OD x 2.5mm Thk

8шт.
