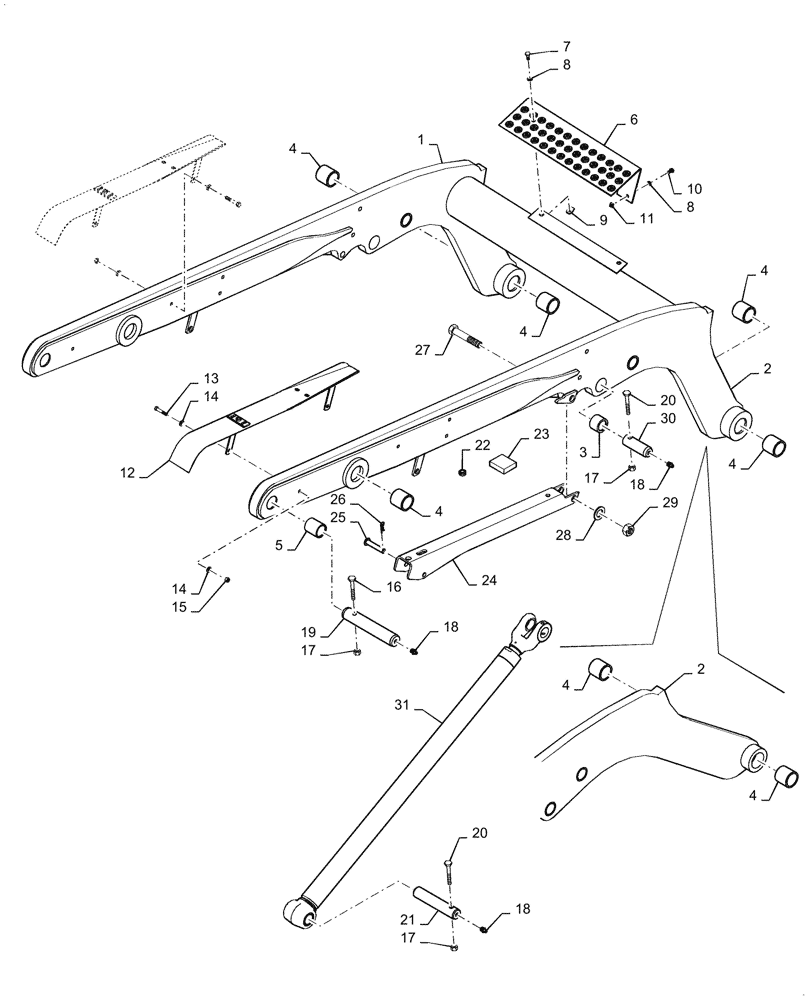

Запчасти Case IH 450 (09-01) - FRAME - LOADER LIFT (09) - CHASSIS

1

429488A1

ARM

Loader Arm; Incl. 407161A1 Arm, Incl. 2, 3, 4, 5; Incl. Decals

1шт.

2

NSS

NOT SOLD SEPARAT

Lift Arm

1шт.

3

188101A1

BUSHING,38.15mm ID x 48mm OD x 32mm L

2шт.

4

141008A1

BUSHING,45.19mm ID x 55mm OD x 30mm L

4шт.

5

243267A1

BUSHING,45.19mm ID x 55mm OD x 50mm L

2шт.

6

87620407

PLATE

Upper Step; Replaces 87449498

1шт.

7

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

2шт.

8

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

Replaces 895-11008

5шт.

9

833-40008

SPRING NUT,M8, U

2шт.

10

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

3шт.

11

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

M8

3шт.

12

282376A1

SUPPORT

2шт.

13

814-8070

BOLT,Hex, M8 x 1.25 x 70mm, Cl 8.8

4шт.

14

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

8шт.

15

832-41408

NUT,M8 x 1.25, Cl 10

4шт.

16

814-10100

BOLT,Hex, M10 x 1.5 x 100mm, Cl 8.8

2шт.

17

832-41410

NUT,M10 x 1.5, Cl 10

8шт.

18

219-1

LUBE NIPPLE,1/8" - 27 NPTF

8шт.

19

250997A1

PIN,45mm OD x 192mm L

2шт.

20

814-10090

BOLT,Hex, M10 x 1.5 x 90mm, Cl 8.8

6шт.

21

250998A1

PIN,38mm OD x 192mm L

2шт.

22

248-2198

GROMMET,3/8" ID x 5/8" Groove Dia

1шт.

23

D79692

PAD

1шт.

24

230466A3

STRUT

1шт.

25

86979987

HEADED PIN,1/2" x 3", G5

1шт.

26

86624096

COTTER PIN,Int, 3/16 x .080"

1шт.

27

814-20090

BOLT,Hex, M20 x 2.5 x 90mm, Cl 8.8

Right Hand

1шт.

28

86625260

WASHER,21.8mm ID x 37.5mm OD x 4mm Thk

1шт.

29

832-41420

NUT,M20 x 2.5, Cl 10

1шт.

30

187216A2

PIN,38mm OD x 96mm L

2шт.

31

308258A2

CYLINDER ASSY.,Double Acting, 44.4mm Rod, 970mm Stroke

57 ID x 970 mm strk; Loader Lift; See Figures 08-12

2шт.

31

308258A2R

REMAN-HYD CYLINDER

450 TIER 3 P.I.N. N7M464019 & AFTER, 450CT SERIES 3 ASN N7M464019 both (1/08-3/11)

2шт.

31

308258A2C

REMAN-HYD CYLINDER

Return Number

2шт.
