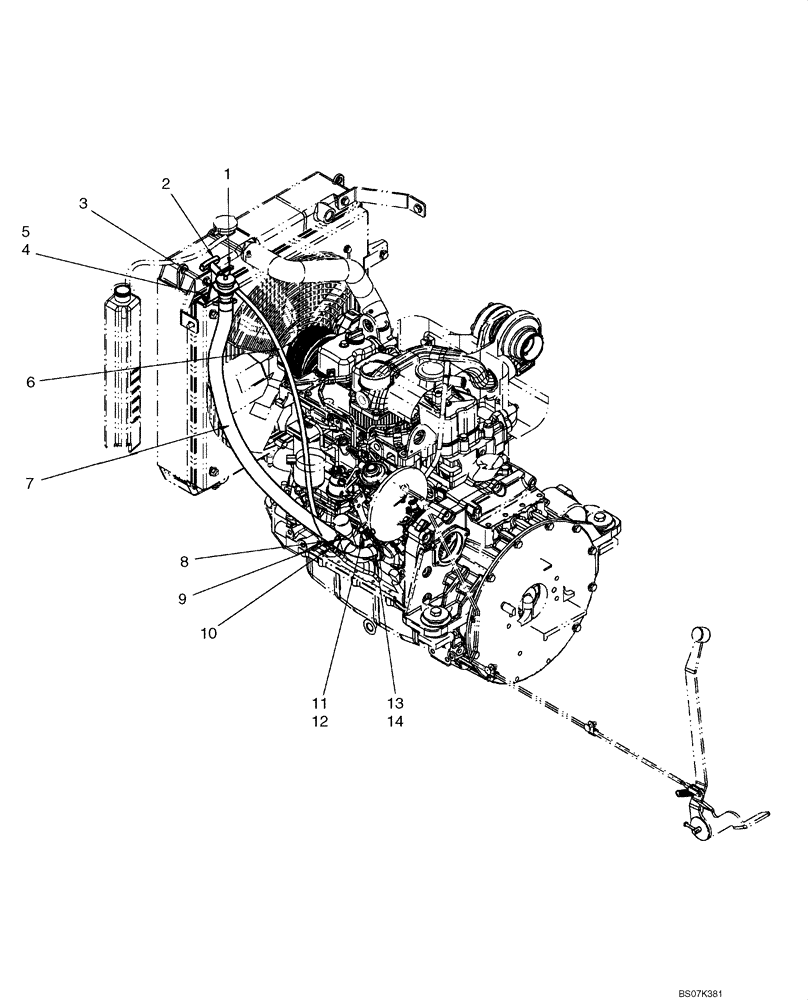

Запчасти Case IH 450 (02-05) - ENGINE - OIL FILL AND DIPSTICK (02) - ENGINE

1

87445427

FILLER CAP

1шт.

2

87566701

DIPSTICK,1106mm L

Dipstick

1шт.

3

87735275

BRACKET

Bracket, Dipstick Mount

1шт.

4

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

2шт.

5

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

6

87612761

TUBE,12.7 mm OD x 918 mm L

Dipstick Tube

1шт.

7

87560205

HOSE,25.4mm ID x 830mm L, SAE 30R2

Tube, Remote Oil Fill

1шт.

8

574518

HOSE CLAMP,6.3mm - 15.7mm, SAE # 4

1шт.

9

87432275

CLAMP,31.5mm - 38mm

2шт.

10

87438418

TUBE,9.52 mm OD x 65 mm L

Tube, Oil Gauge

1шт.

11

300388

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8

2шт.

12

412123

LOCK WASHER,13.1mm ID x 21.1mm OD x 2.55mm Thk

2шт.

13

14458781

O-RING,1.549" ID x 0.103" Width

1шт.

14

87432267

TUBE,63 mm L

Tube, Oil Fill

1шт.
