Запчасти Case IH 450 (08-10) - HYDRAULICS - COUPLER SYSTEM (08) - HYDRAULICS

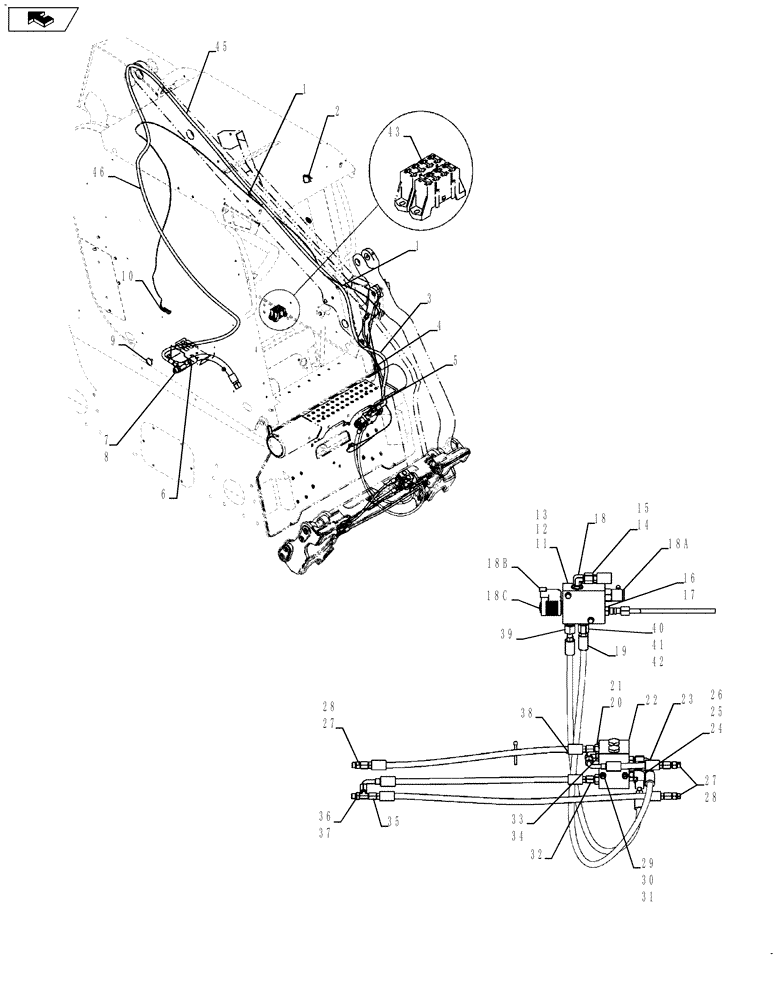

Схема запчастей Case IH 450 - (08-10) - HYDRAULICS - COUPLER SYSTEM (08) - HYDRAULICS
9
13
18c
43
40
2
1
33
34
32
27
39
37
36
14
25
28
8
22
23
26
3
5
home
19
45
41
4
31
46
18b
42
10
29
30
17
24
28
11
16
15
18a
1
18
7
12
38
21
20
6
27
35

Артикул

Название

Примечание

Количество

87710780

SERVICE KIT

Kit, Hydraulic Coupler; Incl 1 - 46

1шт.

1

86639005

CLAMP,15.9mm, Coat, 13.5mm Bolt Hole, P Type

2шт.

2

87642911

SWITCH

Rocker Switch, Hydraulic Coupler

1шт.

3

87370212

HOSE,9.53mm ID x 5130mm L

Hose, Hydraulic Coupler Pressure, 5130mm (202 in.); If Used

1шт.

4

87458917

HYD TUBE,9.5 mm OD

Tube, Hydraulic Coupler Drain

1шт.

5

87426838

BRACKET

Valve Bracket

1шт.

6

87547015

HOSE

Hose, Valve Supply, 412mm (16 7/32 in.)

1шт.

7

87399014

ADAPTER

Tee, 3/4 X 3/4 X 5/8 37Fl; Incl 8

1шт.

8

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

9

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

10шт.

10

87446983

WIRE HARNESS

Hydraulic Coupler Harness

1шт.

11

353308

NUT,M6 x 1.0, Cl 8

2шт.

12

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

13

120056

BOLT,M6 x 1.0 x 54.15mm, Cl 8.8

2шт.

14

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. 15

1шт.

15

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

16

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

Incl 17

3шт.

17

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

18

87421480

HYDRAULIC VALVE

Valve, Sequence Hydraulic Coupler; Incl 18A, 18B, 18C

1шт.

18a

87562923

VALVE

Sequence Valve

1шт.

18b

87433496

COIL

1шт.

18c

87562926

VALVE

Solenoid Valve

1шт.

19

87437471

HOSE ASSY.,6.35mm ID x 860mm L

Hose, Coupler, 860mm (33 11/16 in.)

1шт.

20

139398

HYD CONNECTOR,9/16" - 18 ORB x 7/16" - 20 JIC

Incl 21

2шт.

21

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

22

294741A1

CHECK VALVE

1шт.

23

294747A1

HOSE ASSY.,6.35mm ID x 176mm L

Hose, Coupler Cylinder Base, 176mm (6 15/16 in.)

1шт.

24

9840542

ELBOW,90 Degree, 9/16"-18 x 9/16"-18, Adj, ORFS

Incl 25, 26

1шт.

25

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

26

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

27

265235

HYD CONNECTOR,7/16" - 20 ORB x 7/16" - 20 JIC

Incl 28

3шт.

28

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

29

86624181

WASHER,M6

4шт.

30

87030561

NUT,M6 x 1, Cl 8

2шт.

31

86508570

BOLT,Hex, M6 x 80mm OAL, Cl 8.8

2шт.

32

87437473

HOSE ASSY.

Hose, Coupler Cylinder Rod End, 500mm (19 11/16 in.)

1шт.

33

86512934

90 ELBOW,90 Degree, 7/16"-20, 37 Degree x 9/16"-18, O-Ring

Incl 34

1шт.

34

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

35

87437472

HOSE ASSY.

Hose, Coupler Cylinder Connection, 640mm (25 3/16 in.)

1шт.

36

86513019

TEE,1-5/16" - 12 ORB x 1-1/4" JIC x 1-1/4" JIC

Incl 37

1шт.

37

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

38

294884A1

HOSE ASSY.

Hose, Coupler Cylinder Base, 506mm (19 15/16 in.)

1шт.

39

87426493

HOSE ASSY.,6.35mm ID x 830mm L

Hose, Coupler, 830mm (32 11/16 in.)

1шт.

40

9993143

HYD CONNECTOR,11/16" - 16 ORFS x 9/16" - 18 ORB

Incl 41, 42

1шт.

41

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

42

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

43

A149800

FUSE,10 Amp

Fuse, 10 Amp

1шт.

44

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

45

87647040

HYDRAULIC HOSE,9.53mm ID x 2615mm L

1шт.

46

87647039

HYDRAULIC HOSE,10.00 mm ID x 480.00 mm

1шт.

Выбрано товаров: 50
