Запчасти Case IH 450 (08-08) - HYDRAULICS - CASE DRAIN (08) - HYDRAULICS

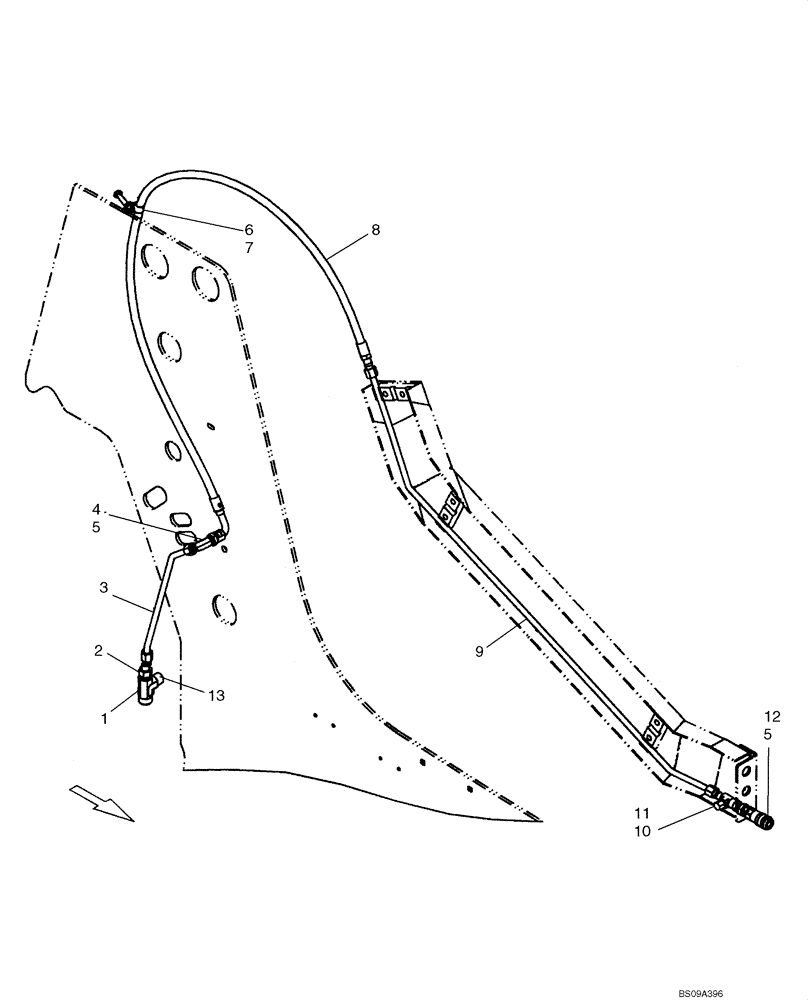

Схема запчастей Case IH 450 - (08-08) - HYDRAULICS - CASE DRAIN (08) - HYDRAULICS
5
1
5
3
9
10
8
6
11
12
2
4
13
7

Артикул

Название

Примечание

Количество

87685967

SERVICE KIT

Kit, Loader Arm Case Drain; Incl 1 - 13

1шт.

1

87039438

TEE,1 5/16"-12, 37 Degree x 7/8"-14, 37 Degree x 3/4"-14, NPTF Br

If Used

1шт.

1

87690479

TEE

Male BR 37Fl 1.0 x .75 x .75 NPTF

1шт.

2

87029966

REDUCER,7/8" - 14 JIC x 3/4" - 16 JIC

If Used

1шт.

2

86624129

TEE,37 Degree, 3/4"-16 x 1 1/16"-12, Fem Sw Run x 1 1/16"-12

1шт.

3

87432444

HYD TUBE,12.7 mm OD x 360.4, 210 mm L

Loader Arm Case Drain, Rear; If Used

1шт.

3

87659244

HYD TUBE,12.7 mm OD x 347.8, 140.3 mm L

Loader Arm Case Drain

1шт.

4

248973

ELBOW,90º Blkhd, 3/4"-16, 37º x 3/4"-16, 37º

1шт.

5

524036

BHD LOCK NUT,Blkhd, 3/4"-16

1-2шт.

6

87029955

CLAMP,22.2mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

7

100037

LOCK NUT,M10 x 1.5, Cl 8

1шт.

8

87460872

HOSE

1800 mm (70.8 in) Loader Arm Case Drain

1шт.

9

87449939

HYD TUBE,12.7 mm OD

Case Drain

1шт.

10

574342

CAP,9/16" - 18 JIC

1шт.

11

218-5492

HYD CONNECTOR,1/2" x 1/2" x 3/8" Run, Swivel 37 Degree Fitting

If Used

1шт.

11

87029963

HYD CONNECTOR,3/4" Male JIC x 3/4" Male JIC x 3/4" Female JIC

1шт.

12

87019286

COUPLING

.38 Fem

1шт.

13

219606

CAP,1-1/16" - 12 JIC

Remove Cap When Oil Cooler Bypass Is Installed

1шт.

Выбрано товаров: 18
