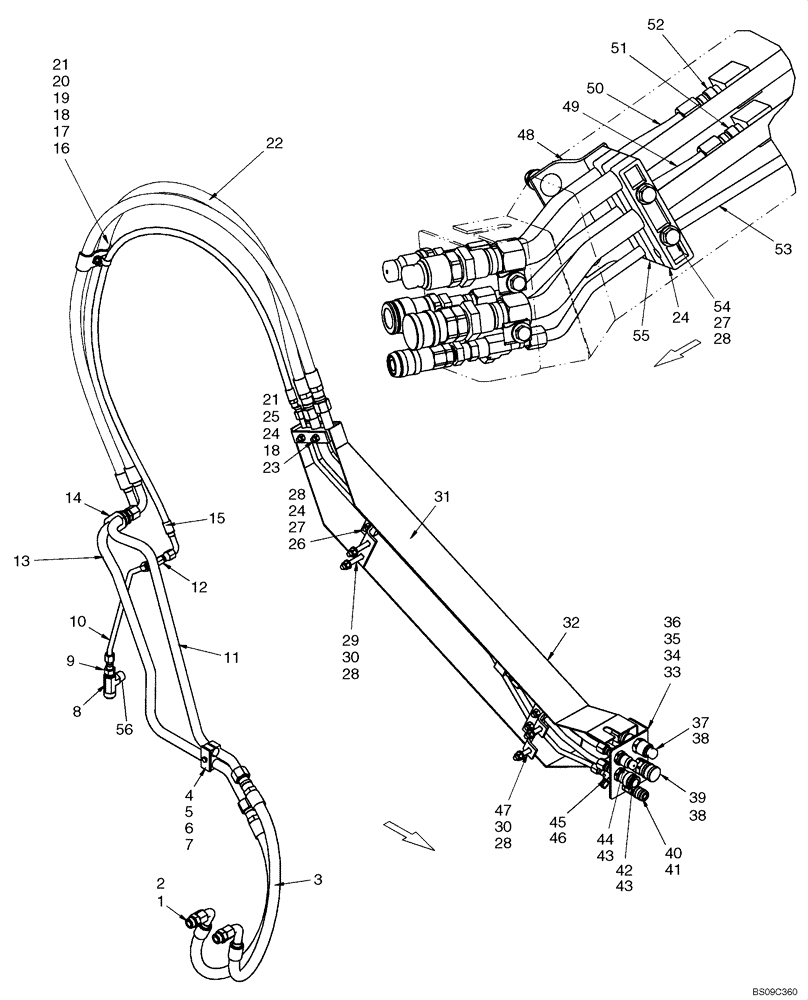

Запчасти Case IH 450 (08-06) - HYDRAULICS - AUXILIARY (WITH HIGH FLOW) (08) - HYDRAULICS

87618732

SERVICE KIT

Kit, High Flow Bi-Directional Gear; Incl 1 - 55 And Fig 08-12 And Fan

1шт.

1

322896

HYD CONNECTOR,1-1/16" - 12 ORB x 1-1/16" - 12 JIC

Incl 2

2шт.

2

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

2шт.

3

87433172

HOSE ASSY.

Hose, 1000mm (39 3/8 in.)

2шт.

4

225529A1

CLAMP,Dual, 25.4mm ID

Tube Clamp

1шт.

5

257859A1

PLATE, SPACER,31.8mm W x 68mm L x 4.76mm Thk

PLATE,SPACER

1шт.

6

9628098

NUT,M8 x 1.25, Cl 10

1шт.

7

16044321

BOLT,M8 x 1.25 x 55mm, Cl 8.8

1шт.

8

87039438

TEE,1 5/16"-12, 37 Degree x 7/8"-14, 37 Degree x 3/4"-14, NPTF Br

If Used

1шт.

8

87690479

TEE

Tee, Male Branch Red 1.0 X 3/4 X 3/4

1шт.

9

87029966

REDUCER,7/8" - 14 JIC x 3/4" - 16 JIC

If Used

1шт.

9

86624129

TEE,37 Degree, 3/4"-16 x 1 1/16"-12, Fem Sw Run x 1 1/16"-12

1шт.

10

87432444

HYD TUBE,12.7 mm OD x 360.4, 210 mm L

Loader Arm Case Drain; If Used

1шт.

10

87659244

HYD TUBE,12.7 mm OD x 347.8, 140.3 mm L

Loader Arm Case Drain

1шт.

11

87432450

HYD TUBE,25.40 mm OD x 721.7, 239.3 mm L

Valve Auxiliary

1шт.

12

248973

ELBOW,90º Blkhd, 3/4"-16, 37º x 3/4"-16, 37º

1шт.

13

87737720

HYD TUBE,25.4 mm OD x 847.2, 122.2 mm L

Tube, High Flow Auxiliary

1шт.

14

87017999

SUPPORT

2шт.

15

87460872

HOSE

Hose, Loader Arm Case Drain, 1800mm (70 7/8 in.)

1шт.

16

276433A1

CLAMP

1шт.

17

256690A1

SPACER

1шт.

18

140017

WASHER,M10 x 20mm OD x 2mm Thk

3шт.

19

412151

BOLT,M10 x 1.5 x 61.58mm, Cl 8.8

1шт.

20

87029955

CLAMP,22.2mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

21

86512554

NUT,M10 x 1.5, Cl 10

3шт.

22

87433171

HOSE ASSY.

Hose, High Flow 1770mm (69 11/16 in.)

2шт.

23

120073

BOLT,Hex, M10 x 86.58mm, Cl 8.8

2шт.

24

87449945

CLAMP

6шт.

25

256976A1

BAR

1шт.

26

43158

BOLT,Hex, M12 x 80mm, Cl 8.8

2шт.

27

140018

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

4шт.

28

412672

NUT,Hex, M12 x 1.75, Cl 10

8шт.

29

300662

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 80mm, Cl 8.8

2шт.

30

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

4шт.

31

87450047

BRACKET

1шт.

32

87458896

COVER

1шт.

33

87450053

BRACKET

1шт.

34

86625071

SPRING NUT,M10 x 1.5

2шт.

35

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

2шт.

36

86639325

WASHER,10.8mm ID x 24.5mm OD x 3mm Thk

2шт.

37

87022672

QUICK MALE COUPLING

5/8 Male Coupler #16 Bulkhead

1шт.

38

86513144

BHD LOCK NUT,Blkhd, 1 5/16"-12

2шт.

39

87022671

COUPLING, QUICK, FEM

5/8 Female Coupler #16 Bulkhead

1шт.

40

87019286

COUPLING

3/8 Female FF Coupler 8MBF

1шт.

41

524036

BHD LOCK NUT,Blkhd, 3/4"-16

1шт.

42

393394A1

COUPLING, BREAK AWAY

Coupler, 1/2 Female Quick Disconnect; If Used

1шт.

42

87741499

COUPLING, QUICK, FEM,7/8" - 14, 37 Degree x ISO 12.5mm

Coupler, 1/2 Female Quick Disconnect

1шт.

43

595460

BHD LOCK NUT,7/8" - 14

2шт.

44

87417308

COUPLING, BREAK AWAY

Coupler, 1/2 Male Quick Disconnect; If Used

1шт.

44

87741500

QUICK MALE COUPLING,7/8" - 14, 37 Degree x ISO 12.5mm

Coupler, 1/2 Male Quick Disconnect

1шт.

45

87029963

HYD CONNECTOR,3/4" Male JIC x 3/4" Male JIC x 3/4" Female JIC

Tee, 37Fl 1/2 X 1/2 X 3/8

1шт.

46

574342

CAP,9/16" - 18 JIC

1шт.

47

412097

CARRIAGE BOLT,Short Sq Nk, M12 x 1.75 x 60mm, Cl 8.8

2шт.

48

87450046

BRACKET

1шт.

49

87450058

HYD TUBE,15.88 mm OD x 376.5, 26.6 mm L

Tube, Auxiliary

1шт.

50

87450057

HYD TUBE,15.88 mm OD x 354.1, 21.8 mm L

Tube, Auxiliary

1шт.

51

87450056

HYD TUBE,25.4 mm OD x 1051.4, 780.3 mm L

Tube, High Flow

1шт.

52

87450055

HYD TUBE,25.4 mm OD x 1012.9, 753.7 mm L

Tube, High Flow

1шт.

53

87450054

HYD TUBE,12.7 mm OD

Tube, Case Drain

1шт.

54

395277

BOLT,Hex, M12 x 1.75 x 130mm, Cl 8.8

2шт.

55

87449943

CLAMP

2шт.

56

219606

CAP,1-1/16" - 12 JIC

1шт.
