Запчасти Case IH 450 (08-04[1]) - HYDRAULICS - AUXILIARY (PROPORTIONAL) PILOT CONTROL (08) - HYDRAULICS

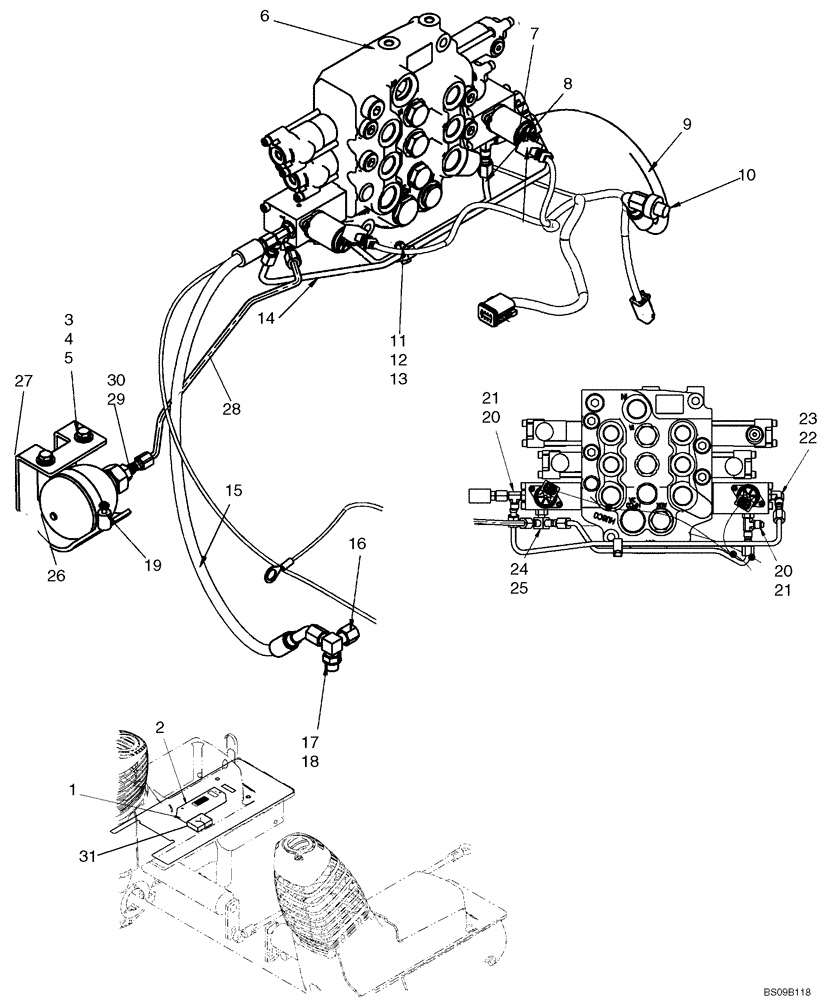

Схема запчастей Case IH 450 - (08-04[1]) - HYDRAULICS - AUXILIARY (PROPORTIONAL) PILOT CONTROL (08) - HYDRAULICS
22
26
12
27
20
3
4
31
29
23
1
10
16
21
28
30
19
15
2
25
8
21
14
6
17
5
9
7
13
18
20
24
11

Артикул

Название

Примечание

Количество

87676513

SERVICE KIT

Kit, EH Proportional Auxiliary Pilot Control; Incl 1 - 30

1шт.

1

100012

NUT,M4 x 0.7, Cl 8

If Used

2шт.

1

REF

INSTRUCTION

Double Sided Tape, 25.4mm (1 in.) X 150mm (6 in.) Length; If Used

1шт.

2

87657080

VALVE

PWM Driver

1шт.

3

83990583

LOCK WASHER,M8 x 14.8mm OD x 2.1mm Thk

2шт.

4

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

5

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

6

87546975

HYDRAULIC VALVE

Control Valve; See Fig 08-15

1шт.

7

87668739

HARNESS

Harness, Electro-Hydraulic Auxiliary

1шт.

8

87443078

HYD TUBE

Tube, Pilot Pressure

1шт.

9

87547026

HOSE

Hose, Supply Or Drain, 465mm (18 5/16 in.)

1шт.

10

179189A1

VALVE POPPET

1шт.

11

608089

CLAMP

1шт.

12

87030561

NUT,M6 x 1, Cl 8

1шт.

13

120100

BOLT,M6 x 20mm, Cl 8.8

1шт.

14

87018051

TUBE,6.35 mm OD

1шт.

15

87564006

HOSE

Hose, Drain 660mm (26 in.)

1шт.

16

574342

CAP,9/16" - 18 JIC

1шт.

17

L104616

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 ORB

Incl. 18

1шт.

18

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

19

86625032

HOSE CLAMP,88.9mm ID - 65mm ID

1шт.

20

86513019

TEE,1-5/16" - 12 ORB x 1-1/4" JIC x 1-1/4" JIC

Incl 21

2шт.

21

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

2шт.

22

216773

90 ELBOW,90 Degree, 7/16"-20, 37 Degree x 7/16"-20, O-Ring

Incl 23

1шт.

23

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

24

87443051

ELBOW

Incl 25

1шт.

25

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

26

87376969

ACCUMULATOR

1шт.

27

87672246

BRACKET

1шт.

28

87626904

HYD TUBE

Tube, Pilot Pressure

1шт.

29

139398

HYD CONNECTOR,9/16" - 18 ORB x 7/16" - 20 JIC

Incl 30

1шт.

30

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

31

87729517

SEALING STRIP

Foam, Aux And Throttle

1шт.

Выбрано товаров: 33
