Запчасти Case IH 450 (08-03[1]) - HYDRAULICS - AUXILIARY (PROPORTIONAL) MECHANICAL CONTROL (08) - HYDRAULICS

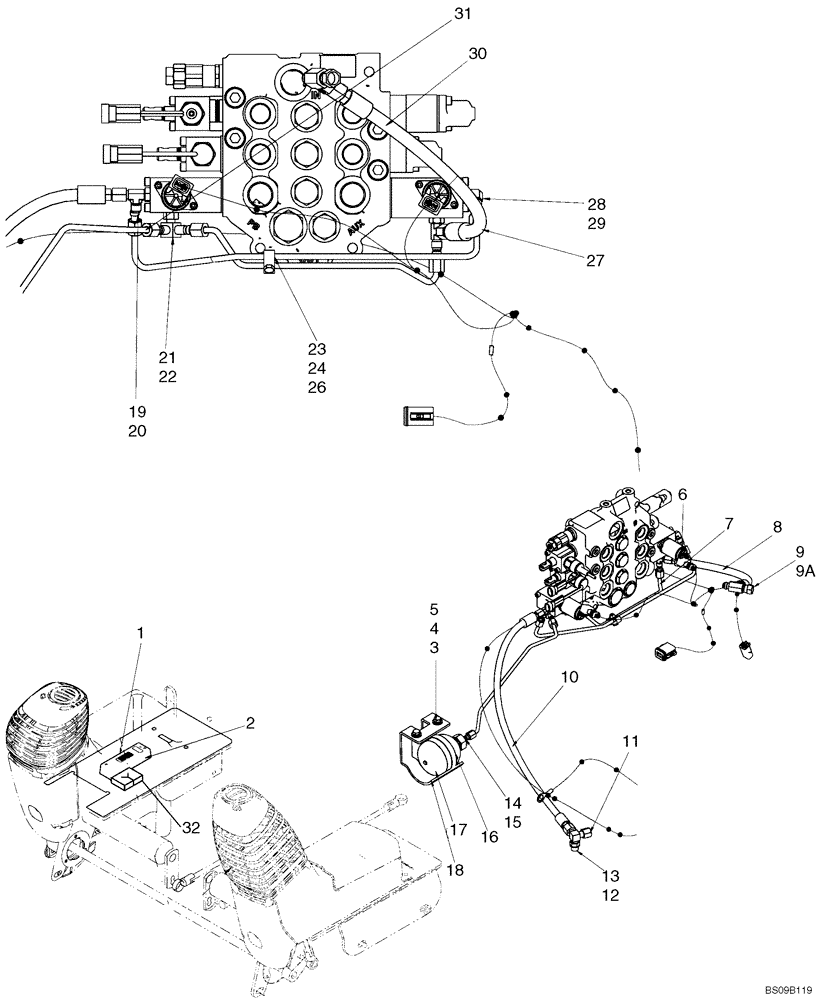

Схема запчастей Case IH 450 - (08-03[1]) - HYDRAULICS - AUXILIARY (PROPORTIONAL) MECHANICAL CONTROL (08) - HYDRAULICS
29
7
22
18
14
3
9a
13
10
2
1
27
4
12
16
28
5
24
21
8
11
32
9
20
17
23
6
15
31
30
26
19

Артикул

Название

Примечание

Количество

87676512

SERVICE KIT

Kit, EH Proportional Auxiliary Mechanical Control; Incl 1 - 31

1шт.

1

87657080

VALVE

PWM Driver

1шт.

2

100012

NUT,M4 x 0.7, Cl 8

If Used

2шт.

2

REF

INSTRUCTION

Double Sided Tape, 25.4mm (1 in.) X 150mm (6 in.) Length; If Used

1шт.

3

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

4

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

5

87016617

LOCK WASHER,M8

2шт.

6

87668739

HARNESS

Harness, Electro-Hydraulic Auxiliary

1шт.

7

87443078

HYD TUBE

1шт.

8

87019072

HOSE,6.35mm ID x 460mm L

Hose, 460mm (18 1/8 in.)

1шт.

9

87438766

TEE

Incl 9A

1шт.

9a

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

10

87427370

HOSE ASSY.

Hose, 610mm (24 in.)

1шт.

11

574342

CAP,9/16" - 18 JIC

1шт.

12

L104616

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 ORB

Incl. 13

1шт.

13

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

14

139398

HYD CONNECTOR,9/16" - 18 ORB x 7/16" - 20 JIC

Incl 15

1шт.

15

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

16

86625032

HOSE CLAMP,88.9mm ID - 65mm ID

1шт.

17

87376969

ACCUMULATOR

1шт.

18

87672246

BRACKET

1шт.

19

86513019

TEE,1-5/16" - 12 ORB x 1-1/4" JIC x 1-1/4" JIC

Incl 20

2шт.

20

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

2шт.

21

87443051

ELBOW

Incl 22

1шт.

22

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

23

87030561

NUT,M6 x 1, Cl 8

1шт.

24

120100

BOLT,M6 x 20mm, Cl 8.8

1шт.

26

608089

CLAMP

1шт.

27

87018051

TUBE,6.35 mm OD

1шт.

28

216773

90 ELBOW,90 Degree, 7/16"-20, 37 Degree x 7/16"-20, O-Ring

Incl 29

1шт.

29

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

30

87583286

VALVE

Control Valve; See Fig 08-16

1шт.

31

87626904

HYD TUBE

1шт.

32

87729517

SEALING STRIP

Foam, Aux And Throttle

1шт.

Выбрано товаров: 34
