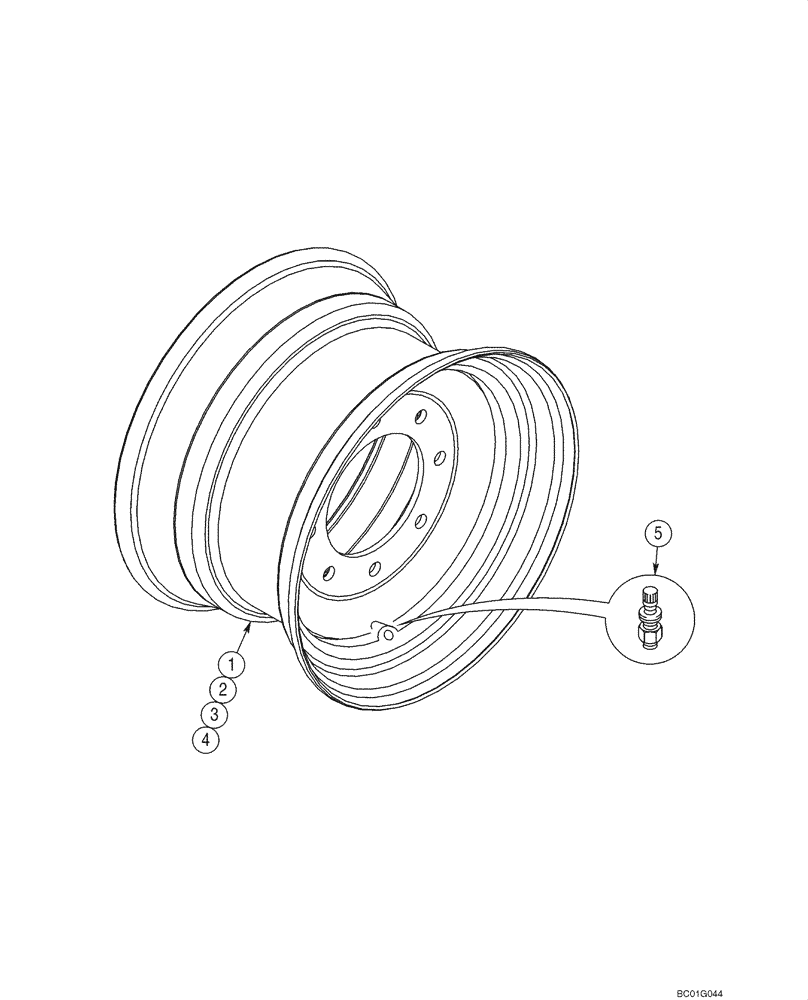

Запчасти Case IH 450 (06-43) - WHEELS (06) - POWER TRAIN

1

183300A3

RIM

WHEEL 16.5 x 9.75, Full Center; Used With 12 x 16.5 tire, Uses Ref 6, Flange Nut

4шт.

1

448569A1

WHEEL ASSY

16.5 x 9.75, Stamped Center; Used With 12 x 16.5 Tire; Incl Ref 5,7

4шт.

2

248048A2

RIM

WHEEL 16.5 x 12; Full Center; Used With 33/15.5 x 16.5 Inch Tire, Uses Ref 6, Flange Nut

4шт.

3

448569A1

WHEEL ASSY

16.5 x 9.75; Stamped Center; Used With 12 x 16.5 Inch tire, Uses Ref 7, Taper Nut

4шт.

4

409174A2

RIM

WHEEL 16.5 x 12; Stamped Center; Used With 33/15.5 x 16.5 Inch Tire

4шт.

5

294579A1

VALVE STEM

1шт.

6

86512498

FLANGE NUT,M16 x 2, Cl 10

Used with Ref 1, 2

32-64шт.

7

408127A1

WHEEL NUT,Conical End Hex, M16 x 2.0, 14.80mm High, Cl 10

Nut, M16 X 2-6G 90 Deg Taper, Used With Ref 3

32шт.
