Запчасти Case IH 450 (06-41) - DRIVE LINE (06) - POWER TRAIN

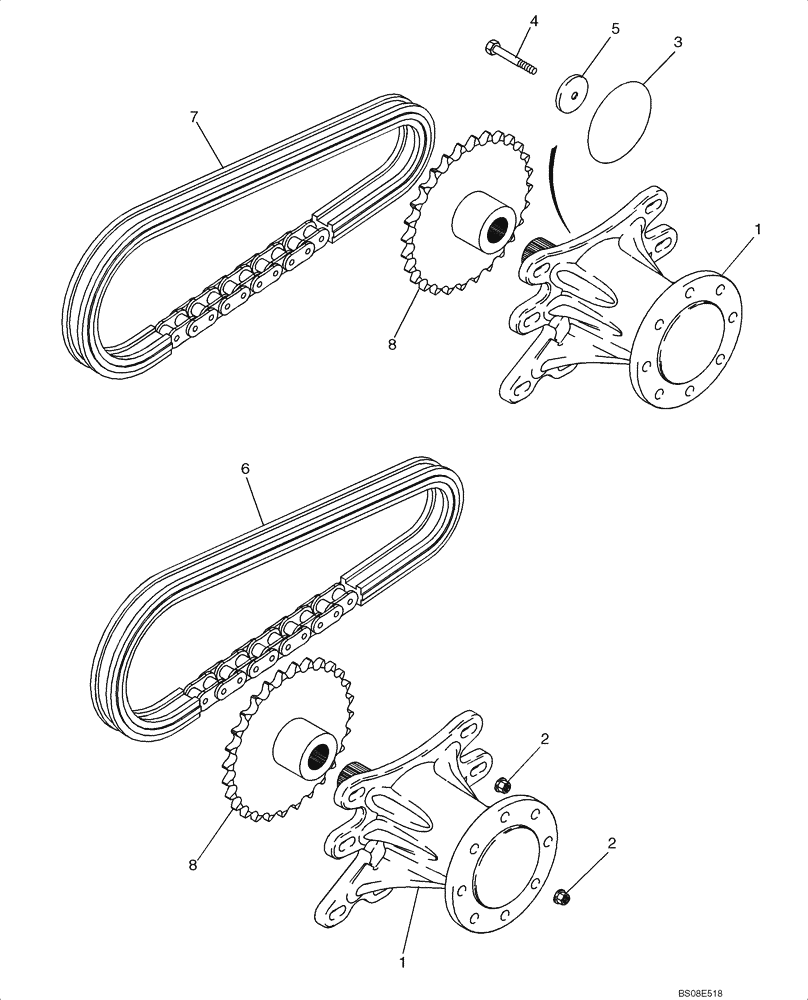

Схема запчастей Case IH 450 - (06-41) - DRIVE LINE (06) - POWER TRAIN
1
2
3
7
8
5
1
6
8
4
2

Артикул

Название

Примечание

Количество

1

339431A2

AXLE

See Figure 06-42

4шт.

339431A2R

REMAN-AXLE

REMANUFACTURED AXLE - NA Only

1шт.

339431A2C

CORE-AXLE

Return Number, AXLE - NA Only

1шт.

2

86512498

FLANGE NUT,M16 x 2, Cl 10

32-64шт.

2a

408127A1

WHEEL NUT,Conical End Hex, M16 x 2.0, 14.80mm High, Cl 10

M16 Taper Nut

32шт.

3

238-5443

O-RING,0.275" Thk x 7.5" ID, -443, Cl 5, 75 Duro

4шт.

4

86541970

BOLT,Hex, M16 x 100mm, Cl 10.9

Use Permatex ZPX24210

4шт.

ZPX24210

SEALANT, THREAD

10 ml

1шт.

5

429233A1

WASHER,16.67mm ID x 70mm OD x 12.7mm Thk

4шт.

6

87425114

CHAIN (CE)

120/52P, Rear Drive Chain

2шт.

7

87418343

CHAIN (CE)

120/42P, Front Drive Chain

2шт.

8

199037A2

SPROCKET ASSY.

22T

4шт.

9

254799A1

STUD

M16 X 45 Chassis Bolt to Axle Assembly (Not Shown)

16шт.

Выбрано товаров: 13
