(06-21) - GEAR PUMP (WITH HIGH FLOW)

Запчасти Case IH 450 (06-21) - GEAR PUMP (WITH HIGH FLOW) (06) - POWER TRAIN

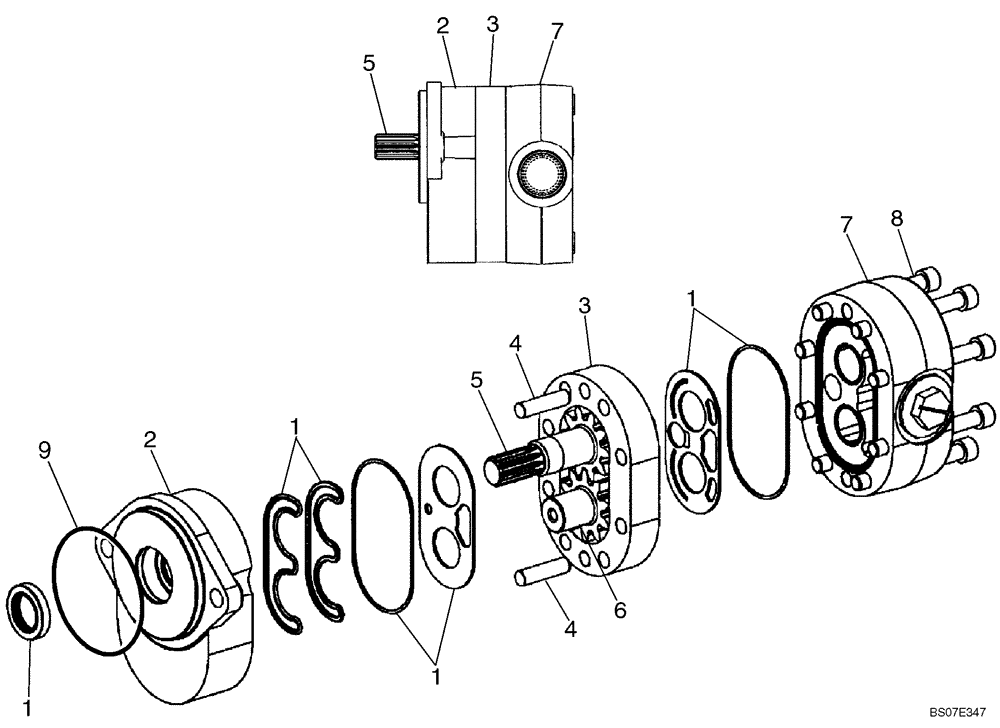

Схема запчастей Case IH 450 - (06-21) - GEAR PUMP (WITH HIGH FLOW) (06) - POWER TRAIN
2
7
7
3
1
6
8
3
1
1
5
9
4
2
5
1
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

87020734

PUMP,31.79 CC

Incl. 1 - 8

1шт.

1

87042214

SEAL KIT

Seal; Component Parts Not Serviced Separately

1шт.

2

NSS

NOT SOLD SEPARAT

Cover

1шт.

3

NSS

NOT SOLD SEPARAT

Plate, Gear

1шт.

4

NSS

NOT SOLD SEPARAT

Pin, Dowel

2шт.

5

NSS

NOT SOLD SEPARAT

Shaft, Drve

1шт.

6

NSS

NOT SOLD SEPARAT

Shaft, Idler

1шт.

7

NSS

NOT SOLD SEPARAT

Cover

1шт.

8

NSS

NOT SOLD SEPARAT

Screw

8шт.

9

87013729

O-RING,0.07" Thk x 3.739" ID, -44, Cl 5, 75 Duro

Not Included With Pump

1шт.
