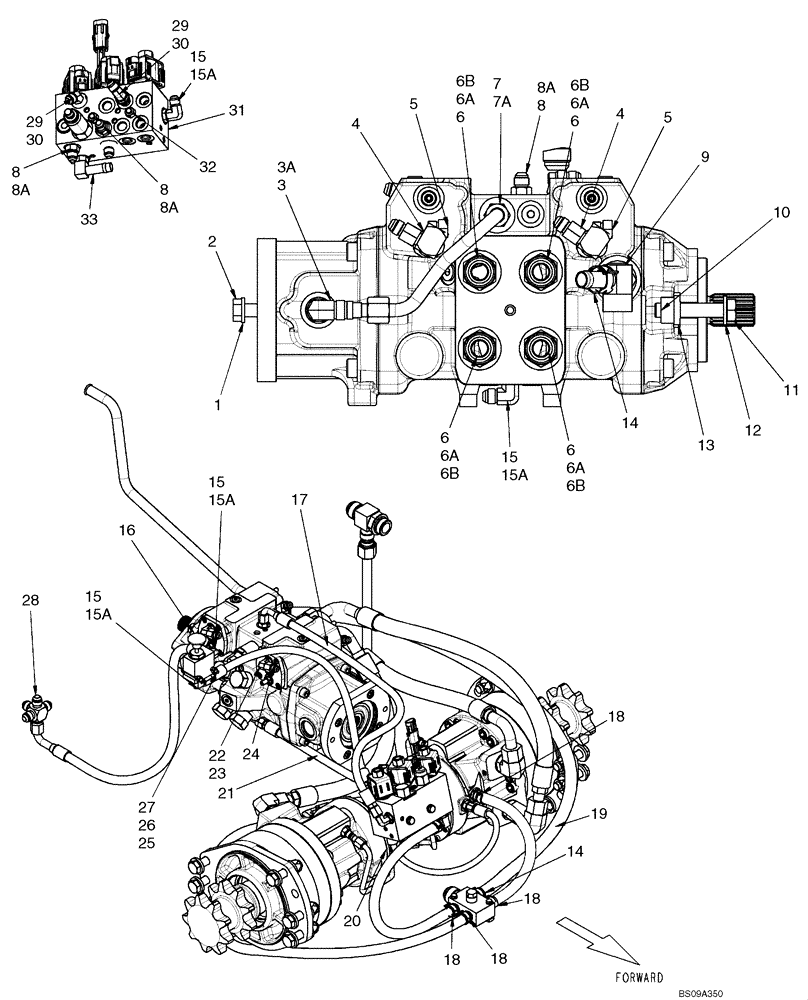

Запчасти Case IH 450 (06-17A) - HYDROSTATICS - PUMP FITTINGS (450 WITH PILOT CONTROL) (06) - POWER TRAIN

1

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

2шт.

2

87670

BOLT,1/2" - 13 x 1-1/4", Full Thd, Gr 5

2шт.

3

128830

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 ORB

Incl 3A

1шт.

3a

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

4

87546979

ADAPTER

Elbow- Side Out

2шт.

5

76349

PLUG,9/16" - 18 ORB

2шт.

6

9840535

HYD CONNECTOR,1-3/16" - 12 ORFS x 1-1/16" - 12 ORB

3/4" Tube ORFS - 3/4" Tube ORB; Incl. 6A-6B

4шт.

6a

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

6b

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

7

128818

UNION,3/4" - 16 ORB x 3/4" - 16 JIC

Incl 7A

1шт.

7a

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

8

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

Incl 8A

6шт.

8a

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

9

87571937

ADAPTER

45 deg Side Out

1шт.

10

87637186

NUT

M14 Cl 10 Znd

2шт.

11

87556906

BOLT,Hex, M14 x 70mm, Cl 10.9

2шт.

12

87016615

WASHER,15.3mm ID x 28.5mm OD x 3mm Thk

2шт.

13

87564723

WASHER,15.3mm ID x 28.5mm OD x 6mm Thk

15.3 x 28.5 x 6mm

2шт.

14

87443511

CLAMP,22mm - 26mm, CTB-24, Style C

CTB 24mm

2шт.

15

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

Incl 15A

4шт.

15a

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

16

87604076

VALVE, EXHAUST, OVER

Boom Override

1шт.

17

87547040

HOSE

DA Pressure

1шт.

18

87443510

HOSE CLAMP,18.4mm Static ID x 15mm W

CTB

6шт.

19

87547044

HOSE,15.88mm ID x 1061mm L

Pump Drain

1шт.

20

76355

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

1шт.

21

87547032

HOSE,9.65 mm ID x 3050.00 mm

Charge Presure

1шт.

22

86512936

ELBOW,9/16" - 18 JIC x 7/16" - 20 ORB

Incl 23

2шт.

23

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

24

87604074

ADAPTER

4шт.

25

86624181

WASHER,M6

2шт.

26

86512440

NUT,M6, Cl 10

2шт.

27

120056

BOLT,M6 x 1.0 x 54.15mm, Cl 8.8

2шт.

28

87546978

ADAPTER

5-Way

1шт.

29

330346

45 ELBOW,45 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

Incl 30

2шт.

30

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

31

87756436

BRAKE VALVE

Pilot Brake Rel, 2-Speed; See Fig 07-04

1шт.

32

9628098

NUT,M8 x 1.25, Cl 10

2шт.

33

86705580

FITTING,90 Degree, 1/2" Hose Bead x 9/16" - 18 ORB

1шт.
