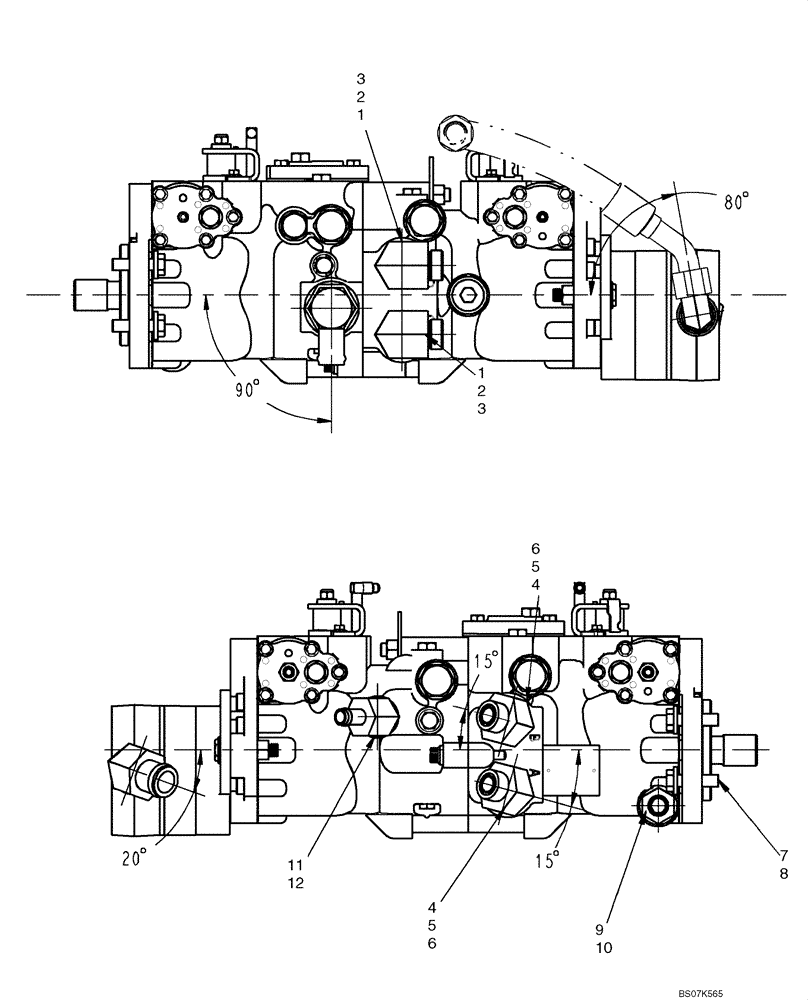

Запчасти Case IH 450 (06-15) - HYDROSTATICS - PUMP FITTINGS (450) (06) - POWER TRAIN

1

87326965

90 ELBOW,1-3/16" - 12 ORFS x 1-5/16" - 12 ORB

Elbow, 90 Adj -12 ORFS X 1-5/16-12 ORB; Incl 2, 3

2шт.

2

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

2шт.

3

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

4

87644282

ELBOW

Elbow, 45 Adj -12 ORFS X 1-5/16 ORB; Incl 5, 6

2шт.

5

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

2шт.

6

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

7

412087

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

4шт.

8

86625256

WASHER,13.3mm ID x 28.5mm OD x 4mm Thk

8шт.

9

87033027

ADAPTER

Incl 10

1шт.

10

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

11

87021779

FITTING,45 Degree, 5/8" Hose x 1 1/16"-12 ORB Beaded

Incl 12

1шт.

12

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.
