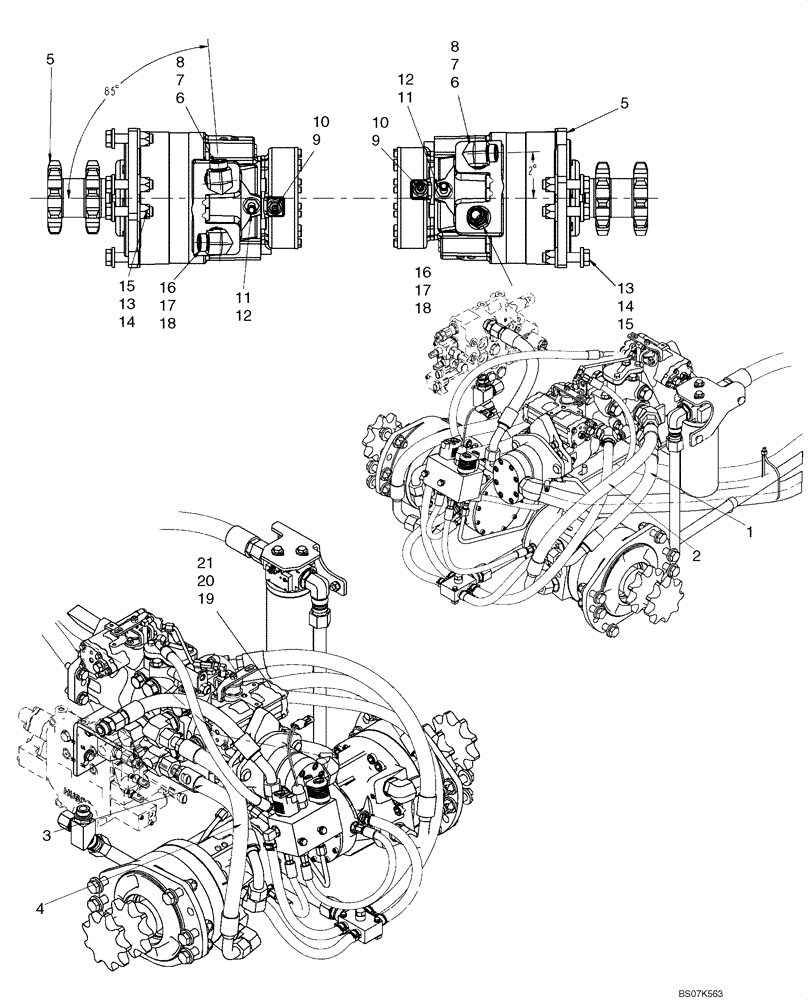

Запчасти Case IH 450 (06-13) - HYDROSTATICS - PUMP TO DRIVE MOTORS (450) (06) - POWER TRAIN

1

87640179

HOSE

Hose, Pump To Motor Loop, 545mm (21 15/32 in.)

1шт.

2

87640181

HOSE

Hose, Pump To Motor Loop, 730mm (28 3/4 in.)

1шт.

3

87640180

HOSE

Hose, Pump To Motor Loop, 405mm (15 15/16 in.)

1шт.

4

87640178

HOSE,19.05mm ID x 635mm L

Hose, Pump To Motor Loop, 635mm (25 in.)

1шт.

5

87349721

HYDRAULIC MOTOR,660CC

See Fig 06-37 - 06-39

2шт.

5

87349721R

REMAN-HYD MOTOR

450 - SKID STEER, TIER 3, P.I.N. N7M464019 & AFTER

2шт.

5

87349721C

CORE-MOTOR HYDRAULIC

Return Number

2шт.

6

9846848

90 ELBOW,1-3/16"-12 ORFS x 1-1/16"-12 ORB

Incl. 7, 8

3шт.

7

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3шт.

8

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

3шт.

9

139398

HYD CONNECTOR,9/16" - 18 ORB x 7/16" - 20 JIC

Incl 10

3шт.

10

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

3шт.

11

87010108

FITTING,1/2" Hose Bead x 3/4" - 16 ORB

Incl 12

2шт.

12

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

13

9847468

BOLT,Hex, M16 x 2 x 70mm, Cl 10.9

12шт.

14

86625258

WASHER,17.5mm ID x 34mm OD x 5mm Thk

24шт.

15

86512555

NUT,M16 x 2, Cl 10

12шт.

16

9840535

HYD CONNECTOR,1-3/16" - 12 ORFS x 1-1/16" - 12 ORB

Incl. 17, 18

1шт.

17

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

18

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

19

87350024

PUMP

Incl 20, 21

1шт.

19

87350025R

REMAN-HYD PUMP

Reman for New PN 87350024

1шт.

19

87350025C

CORE-HYDRAULIC PUMP

Return Number

1шт.

87024695R

450 TIER 3, P.I.N. N7M464019 & AFTER (1/08-3/11) Reman for New P/N 87350024

REMAN-HYD PUMP

1шт.

87024695C

Return Number

CORE-HYDRAULIC PUMP

1шт.

20

87350025

PUMP,46 CC

Tandem Pump; See Fig 06-30 - 06-35

1шт.

20

87350025R

REMAN-HYD PUMP

REMANUFACTURED HYDRAULIC PUMP

1шт.

20

87350025C

CORE-HYDRAULIC PUMP

Return Number, HYDRAULIC PUMP

1шт.

21

87024695

PUMP,36 CC

Gear Pump, 2.20 CID 13 T; See Fig 06-20

1шт.

87024695R

450 TIER 3, P.I.N. N7M464019 & AFTER (1/08-3/11)

REMAN-HYD PUMP

1шт.

87024695C

Return Number

CORE-HYDRAULIC PUMP

1шт.
