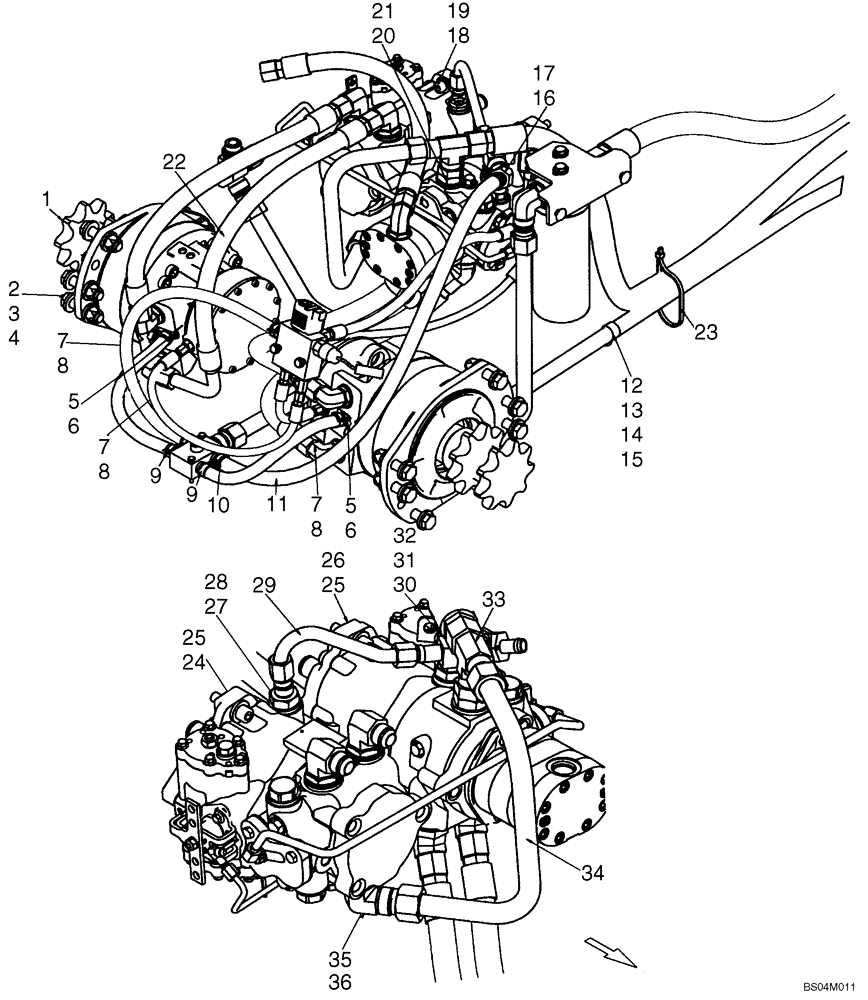

Запчасти Case IH 450 (06-03A) - HYDROSTATICS - DRIVE MOTORS (450 WITH SPLIT PUMP CONFIGURATION) (06) - POWER TRAIN

REF

INSTRUCTION

450 WITH SPLIT PUMP CONFIGURATION

1шт.

1

87035343

MOTOR, HYDRAULIC

See Figure 06-36 - 06-38

2шт.

1

87035343R

450, Tier II, BSN N7M458414 & Prior

REMAN-HYD MOTOR

2шт.

1

87035343C

Return Number

CORE-MOTOR HYDRAULIC

2шт.

2

9847468

BOLT,Hex, M16 x 2 x 70mm, Cl 10.9

12шт.

3

86625258

WASHER,17.5mm ID x 34mm OD x 5mm Thk

24шт.

4

832-41416

NUT,M16 x 2, Cl 10

12шт.

5

87010108

FITTING,1/2" Hose Bead x 3/4" - 16 ORB

Incl. 6

2шт.

6

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

7

322894

90 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12 ORB

Incl. 8

4шт.

8

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

9

87443510

HOSE CLAMP,18.4mm Static ID x 15mm W

4шт.

10

87443511

CLAMP,22mm - 26mm, CTB-24, Style C

24 mm

1шт.

11

87458365

HOSE ASSY.

2шт.

12

515-22254

CLAMP,1", Insul, 5/16" Bolt

(25.4 mm; M8 Bolt)

2шт.

13

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

14

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

15

122158A1

NUT,M8, U

2шт.

16

217-314

FITTING,45 Degree Elbow, 5/8" Hose Barb x 7/8" - 14 Male ORB

Incl. Ref 17

1шт.

17

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

18

14422334

HEX SOC SCREW,M12 x 1.75 x 45mm, Cl 10.9, Full Thd

4шт.

19

86625256

WASHER,13.3mm ID x 28.5mm OD x 4mm Thk

4шт.

20

378970

HYD CONNECTOR,1-5/16" - 12 ORB x 1-5/16" - 12 JIC

Incl. 21

2шт.

21

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

22

87433272

HOSE ASSY.

1шт.

23

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

1шт.

24

87382196

PUMP

M46; Models Without Auxiliary Drive; Replaces 87043511; See Figures 06-23 - 06-26

1шт.

24

87382196R

REMAN-HYD PUMP

Remanufactured Hydraulic Pump

1шт.

24

87382196C

CORE-HYDRAULIC PUMP

Return Number

1шт.

25

9706914

O-RING,0.07" Thk x 3.989" ID, -45, Cl 5, 75 Duro

4шт.

26

87382192

Standard Flow Pump; Production Only, Order Components; M46; Replaces 87043508; Incl. Pump 87382197, Gear Pump 87020734, O-Ring 86537266

1шт.

26

87382194

High Flow Pump; Production Only, Order Components; M46; Replaces 87043509; Incl. Pump 87382197, Gear Pump 87020735, O-Ring 86537266

1шт.

87382197

PUMP

Tandem Pump; See Figure 06-19 - 06-22; Replaces 87043510

1шт.

87382197R

Remanufactured Hydraulic Pump;

REMAN-HYD PUMP

1шт.

87382197C

Return No,

CORE-HYDRAULIC PUMP

1шт.

87020734

PUMP,31.79 CC

Gear Pump; Standard Flow; Incl. Seal Kit 87042214; See Figure 06-33

1шт.

87020735

PUMP

Gear Pump; High Flow; Incl. Seal Kit 87042214; See Figure 06-35

1шт.

87042214

SEAL KIT

1шт.

86537266

O-RING,3.237" ID x 3.442" OD x 0.103"

1шт.

27

86507102

HYD CONNECTOR,1-1/16" - 12 ORB x 7/8" - 14 JIC

1шт.

28

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

29

87446421

HYD TUBE,15.88 mm OD

Pump To Pump

1шт.

30

87458356

FITTING

Incl. 31, 32

1шт.

31

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

32

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

33

86513018

TEE,37 Degree, 1 5/16"-12 x 1 5/16"-12 Fem Sw Br

1шт.

34

87446422

HYD TUBE,25.4 mm OD x 258.9, 171.1 mm L

Suction, Pump To Pump

1шт.

35

268277

90 ELBOW,1-5/16" - 12 JIC x 1-5/16" - 12 ORB

Incl. 36

2шт.

36

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.
