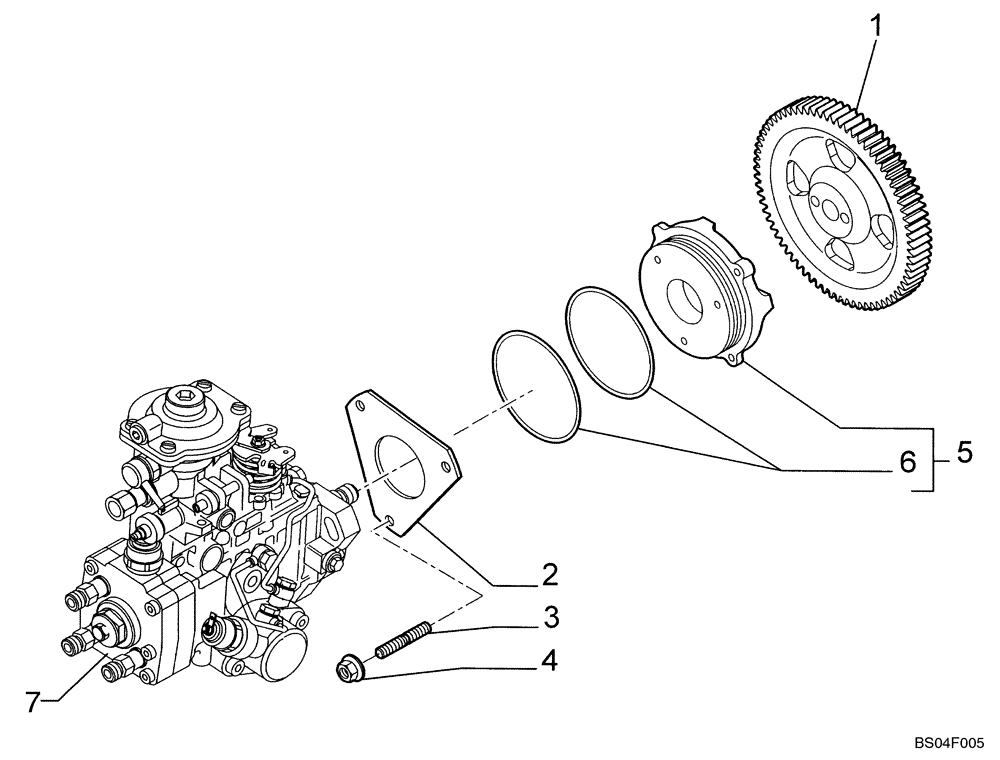

Запчасти Case IH 450 (03-05) - FUEL INJECTION SYSTEM (03) - FUEL SYSTEM

1

2854340

GEAR,52 T

1шт.

2

2852885

GASKET,1.2mm Thk

1шт.

3

2852294

STUD,M8 x 1.25 x 30

2шт.

4

4899003

FLANGE NUT,M8 x 1.25

2шт.

5

4894729

SPACER

1шт.

6

4897111

O-RING,0.139" Thk x 4.719" ID

2шт.

7

REF

INSTRUCTION

INJECTION PUMP; See Figure 03-03

1шт.
