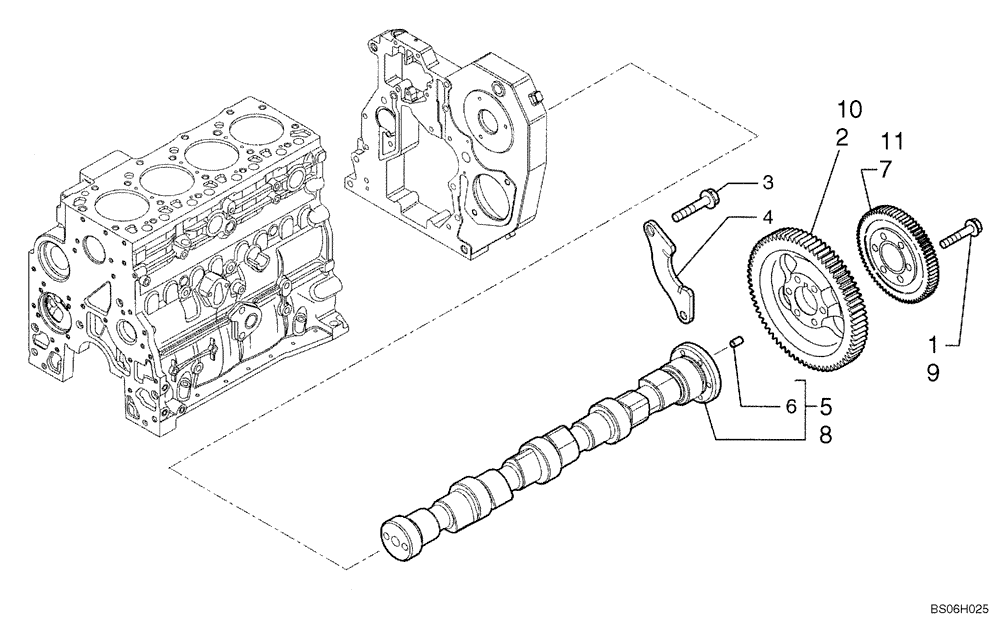

Запчасти Case IH 450 (02-26) - CAMSHAFT (02) - ENGINE

REF

INSTRUCTION

Camshaft W/ 529.5 mm (20.85 in) Length; If Used

1шт.

1

4895323

FLANGE BOLT,Hex, M8 x 1.25 x 40mm

Used with Ref 2, Ref 5 and Ref 7

6шт.

2

2852062

GEAR,72T

35 mm (1.38 in) ID; If Used

1шт.

3

4899068

BOLT,Flng, M8 x 1.25 x 16mm

2шт.

4

4897457

SUPPORT

1шт.

5

4899610

CAMSHAFT

Assy, 529.5 mm (20.85 in) Length; Incl. Ref 6; Used w/ Ref 10, 2852023 Flywheel Housing Cover, See Fig. 02-15

1шт.

5

4899610R

REMAN-CAMSHAFT

Remanufactured Camshaft

1шт.

5

4899610C

CORE-CAMSHAFT

Return Number

1шт.

6

4899080

DOWEL,M6 x 8 L

1шт.

7

2852063

DRIVEN GEAR

52T; 32 mm (1.26 in) ID; If Used

1шт.

REF

INSTRUCTION

Camshaft W/ 554.5 mm (21.83 in) Length; If Used

1шт.

8

2855099

CAMSHAFT

Camshaft Assy, 554.5 mm (21.83 in) Length; Incl. Ref 6; Used w/ Ref 16, 2855178 Flywheel Housing Cover, See Fig 02-15

1шт.

8

2855099R

REMAN-CAMSHAFT

Remanufactured Camshaft;

1шт.

8

2855099C

CORE-CAMSHAFT

Return Number

1шт.

10

2854958

DRIVEN GEAR

Camshaft, 40 mm (1.57 in) ID

1шт.

9

4899053

SCREW,Hex Flg, M8 x 45

Used with Ref 8, Ref 10 and Ref 11

6шт.

11

2854959

DRIVEN GEAR

Driven Gear, 52T, 40 mm (1.57 in) ID

1шт.
