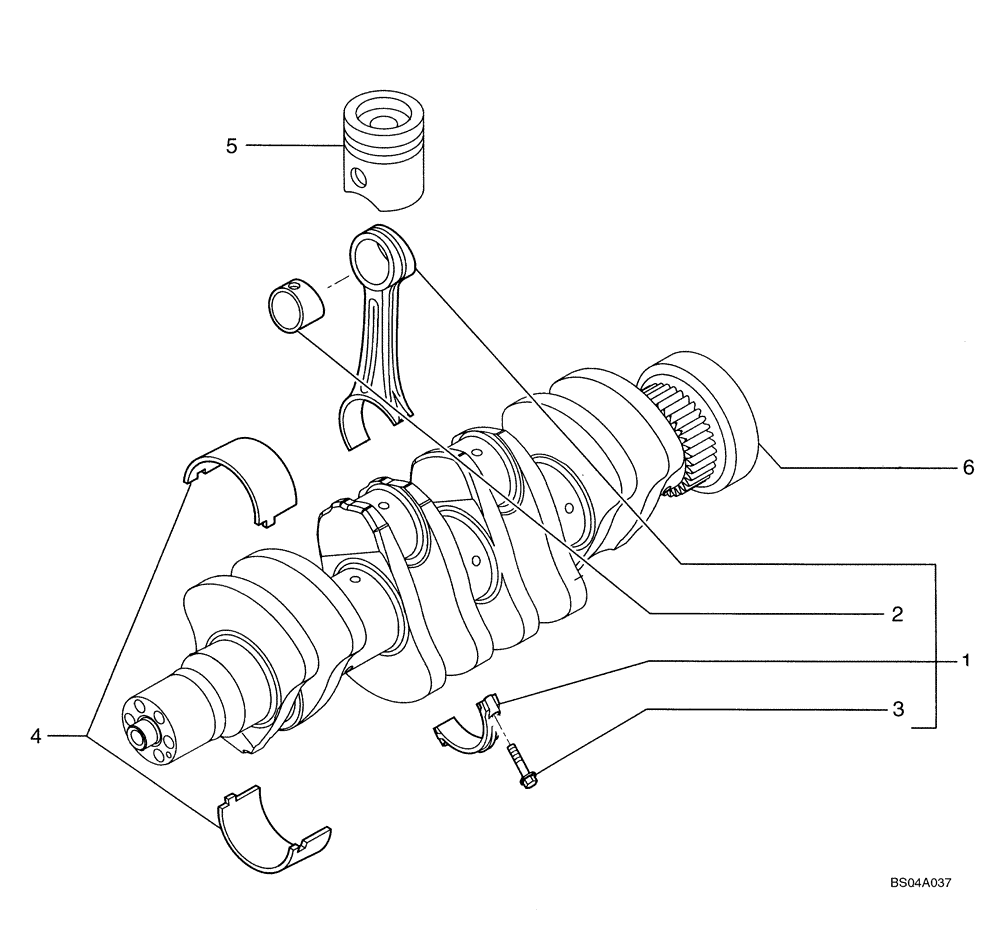

Запчасти Case IH 450 (02-22) - PISTONS - CONNECTING ROD (02) - ENGINE

1

2831298

CONNECTING ROD

Incl. Ref 2, 3

4шт.

2831298R

REMAN-CONNECTING ROD

450 , Tier 2 ,P.I.N. N7M458414 & PRIOR ,450CT N7M464019 ( 4/05 ) (1/05 - 12/07 ) ,450CT BSN N7M464019 (4/05 ),450 Tier 2 P.I.N N7M458414 & Prior ( 4/05 - 12/07 )

4шт.

2831298C

CORE-ROD CONNECTING

Return Number

1шт.

2

4892708

BUSHING,38.02mm ID x 41.01mm OD x 33.4mm L

1шт.

3

2831297

FLANGE BOLT,Hex, M10 x 1.25 x 52mm, Cl 10.9

2шт.

4

8093882

BEARING SET

1/2; Incl. 4892714, 4892715

4шт.

4

8094960

BEARING SET,(-0.250)

4шт.

4

8094961

BEARING SET,(-0.500)

4шт.

5

REF

INSTRUCTION

PISTON; See Figure 02-23

1шт.

6

REF

INSTRUCTION

CRANKSHAFT; See Figure 02-21

1шт.
