Запчасти Case IH 450 (02-21) - CRANKSHAFT (02) - ENGINE

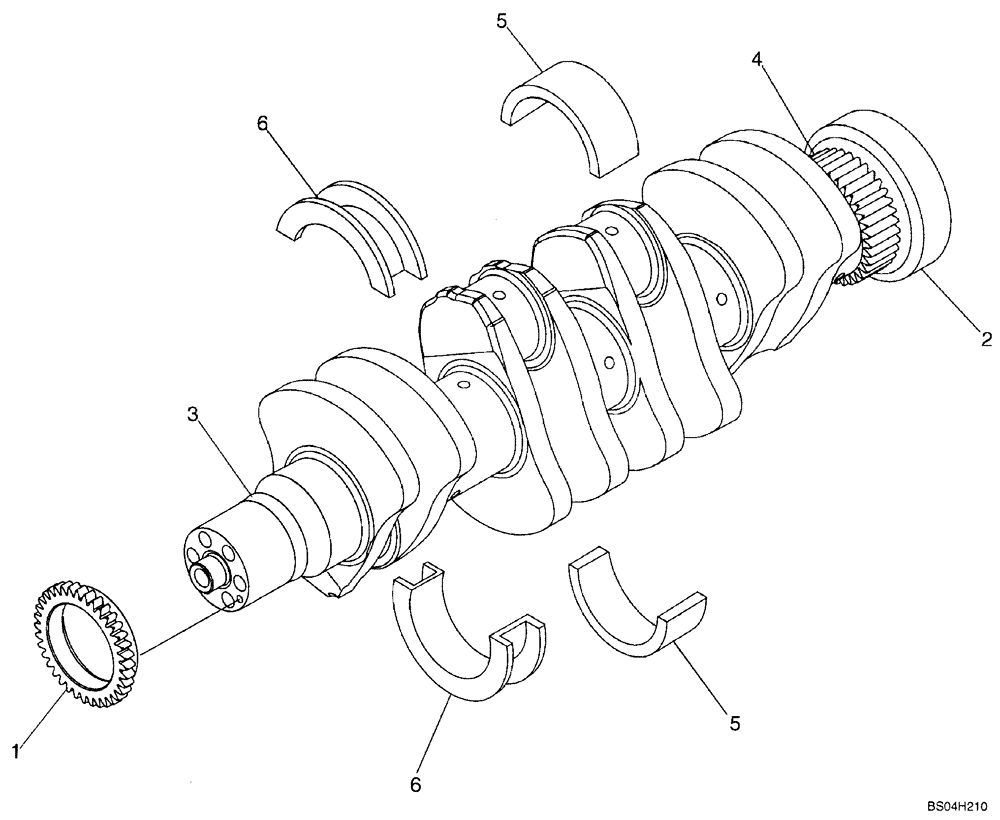

Схема запчастей Case IH 450 - (02-21) - CRANKSHAFT (02) - ENGINE
6
4
3
5
2
1
5
6

Артикул

Название

Примечание

Количество

2853822

CRANKSHAFT

Includes: Ref. 1 - 4

1шт.

2853822R

REMAN-CRANKSHAFT

Remanufactured Crankshaft

1шт.

2853822C

CORE-CRANKSHAFT

Return Number

1шт.

1

4893386

GEAR,36 T

1шт.

2

2831066

COLLAR; Crankshaft

1шт.

3

NSS

NOT SOLD SEPARAT

CRANKSHAFT

1шт.

4

4892438

GEAR,36T

Crankshaft

1шт.

5

2853815

BEARING HALF

Crankshaft, Main, Std. (Slotted w/ Holes)

4шт.

NEF Engines Have Either J Jet POC Nozzles or Saddle POC Nozzles

1шт.

5

4895017

BEARING HALF

Main, Std. (Plain)

4шт.

NEF Engines Have Either J Jet POC Nozzles or Saddle POC Nozzles

1шт.

6

2853816

BEARING HALF

Thrust, Std. (Slotted w/ Holes)

1шт.

NEF Engines Have Either J Jet POC Nozzles or Saddle POC Nozzles

1шт.

6

2992153

CAP

Thrust, Std. (Plain)

1шт.

NEF Engines Have Either J Jet POC Nozzles or Saddle POC Nozzles

1шт.

Выбрано товаров: 15
