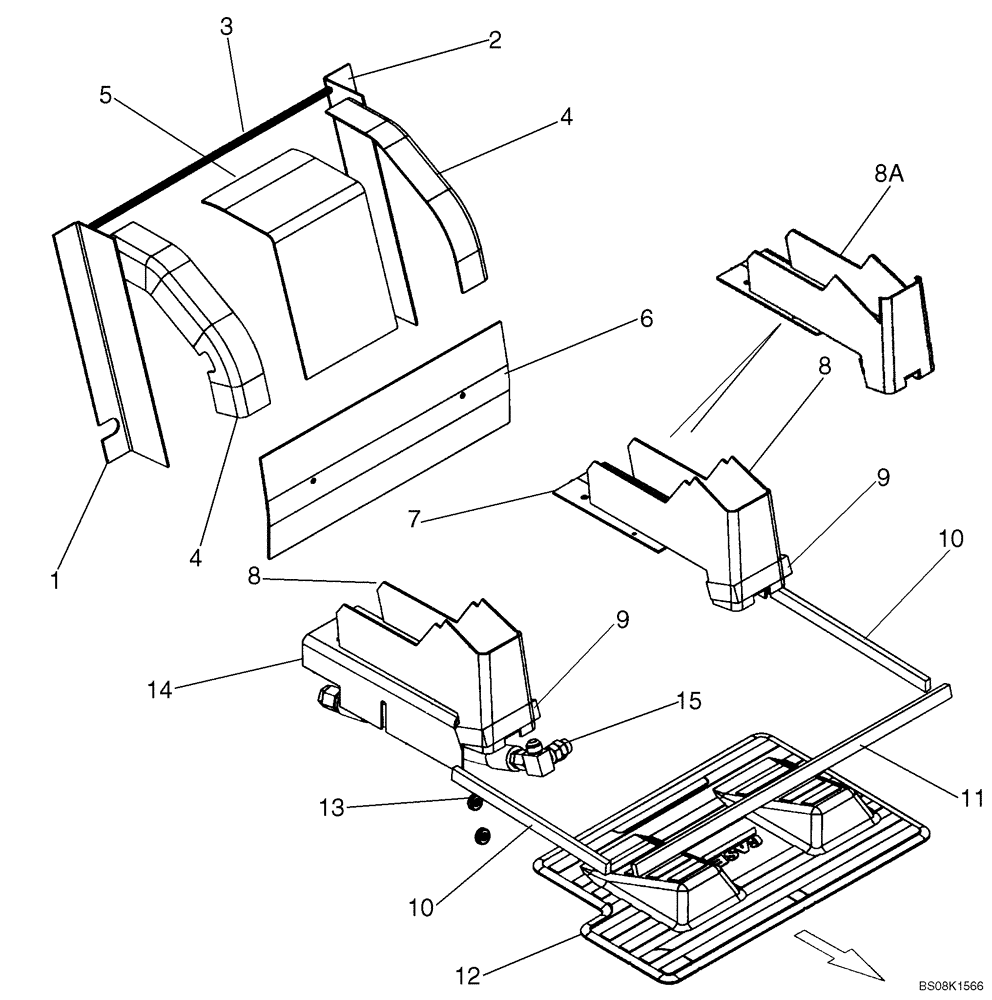

Запчасти Case IH 450 (09-41) - NOISE CONTROL, NORTH AMERICAN (09) - CHASSIS

1

309702A1

SHEET

Right Hand Extension

1шт.

2

309703A1

SHEET

Left Hand Extension

1шт.

3

315083A1

SEALING STRIP

Rear Window Frame

1шт.

4

309011A1

SHEET

Upper Corner

2шт.

5

318165A1

INSULATOR

Sound Dampening, Upper

1шт.

6

318166A1

INSULATOR

Sound Dampening, Lower

1шт.

7

308877A1

PAD

Left Hand Console Barrier; If Used

1шт.

8

308917A1

PAD

Console; If Used

2шт.

8a

87723375

CONSOLE

Pad; If Used

2шт.

9

295007A1

SEAL

Console; If Used

2шт.

10

313149A1

SEAL

Side Screen; If Used

2шт.

10

87036371

SEAL

If Used

2шт.

11

313150A1

SEAL

ROPS Toe Guard; If Used

1шт.

11

87036372

SEALING STRIP

ROPS Toe Guard; If Used

1шт.

12

87461562

FLOOR MAT

1шт.

13

313231A1

BAND

Cable Seal; If Used

2шт.

14

308879A1

PAD

Right Hand Console Barrier; If Used

1шт.

15

REF

INSTRUCTION

Models With Split Pump Configuration, Not Shown, See Figure 06-02

1шт.

15

REF

INSTRUCTION

Models With In-Line Pump Configuration, As Shown, See Figure 06-02A

1шт.

16

348452A1

FASTENER,Push-In, 37mm L, Nylon

Push-In; Not Illustrated

20шт.

87541417

SERVICE KIT

Models With Split Pump Configuration; Incl. 1 - 20, Parts On Figure 06-02, And Instructions

1шт.

87541416

SERVICE KIT

Models With In-Line Pump Configuration; Incl. 1 - 20, Parts On Figure 06-02A, And Instructions

1шт.

87541415

SERVICE KIT

Models With In-Line Pump Configuration; Incl. 1 - 6, 12, Parts On Figure 06-02A, 09-41A, And Instructions

1шт.
