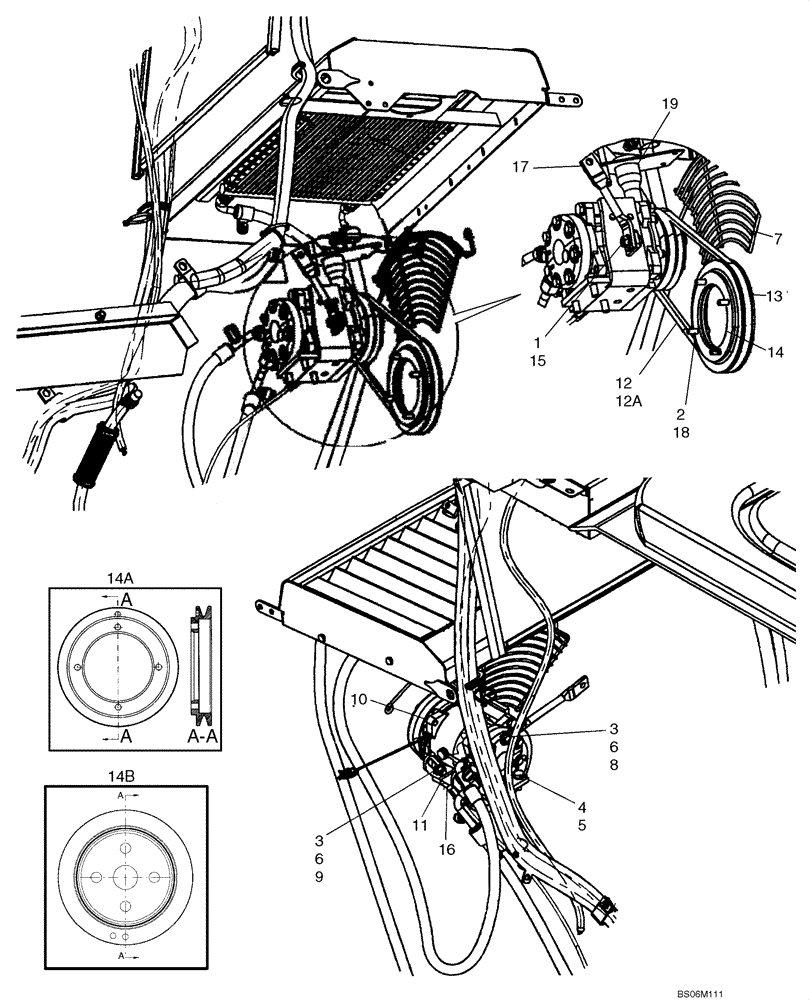

Запчасти Case IH 450 (09-34) - HEATER AND AIR CONDITIONING - COMPRESSOR MOUNTING (09) - CHASSIS

1

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

1шт.

2

43235

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

4шт.

3

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

6шт.

4

892-11010

LOCK WASHER,M10

3шт.

5

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

3шт.

6

829-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 10

3шт.

7

87457152

GUARD

Fan

1шт.

8

827-10130

BOLT,Hex, M10 x 1.5 x 130mm, Cl 10.9

1шт.

9

627-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

2шт.

10

87026034

AIRCOND. COMPRESSOR,12V, W/ Clutch, W/ Pulley

1шт.

87026034R

REMAN-A/C COMPRESSOR,12V, W/ Clutch, W/ Pulley

450 TIER 2, P.I.N. N7M458414 & PRIOR (1/05-12/07), 450CT BSN N7M464019 (4/05-12/07)

1шт.

87026034C

CORE-A/C COMPRESSOR

Return number

1шт.

11

87036932

BRACKET

1шт.

12

87438128

BELT,12.70 mm W

A/C Drive

1шт.

12a

87546926

BELT,12.70 mm W

A/C Drive; Used with Pulley 196050A1, Ref 14B

1шт.

13

87438240

PULLEY

AC Drive

1шт.

14

87439471

LARGE PLATE

PLATE, LARGE AC Drive

1шт.

14a

87391944

PULLEY

AC Compressor Drive; Replaces Ref 13 and 14

1шт.

14b

196050A1

PULLEY

AC Compressor Drive; Used With Belt 87546926, Ref 12A

1шт.

15

411345A1

LOCK NUT

M10

1шт.

16

87445908

HARNESS

Compressor

1шт.

17

87449877

ROD ASSY.

(2) Round Holes; If Used

1шт.

17

87459682

ROD ASSY.

(1) Round Hole, (1) Slotted Hole; If Used

1шт.

18

80681

LOCK WASHER,5/16"

4шт.

19

87458899

SUPPORT

1шт.
