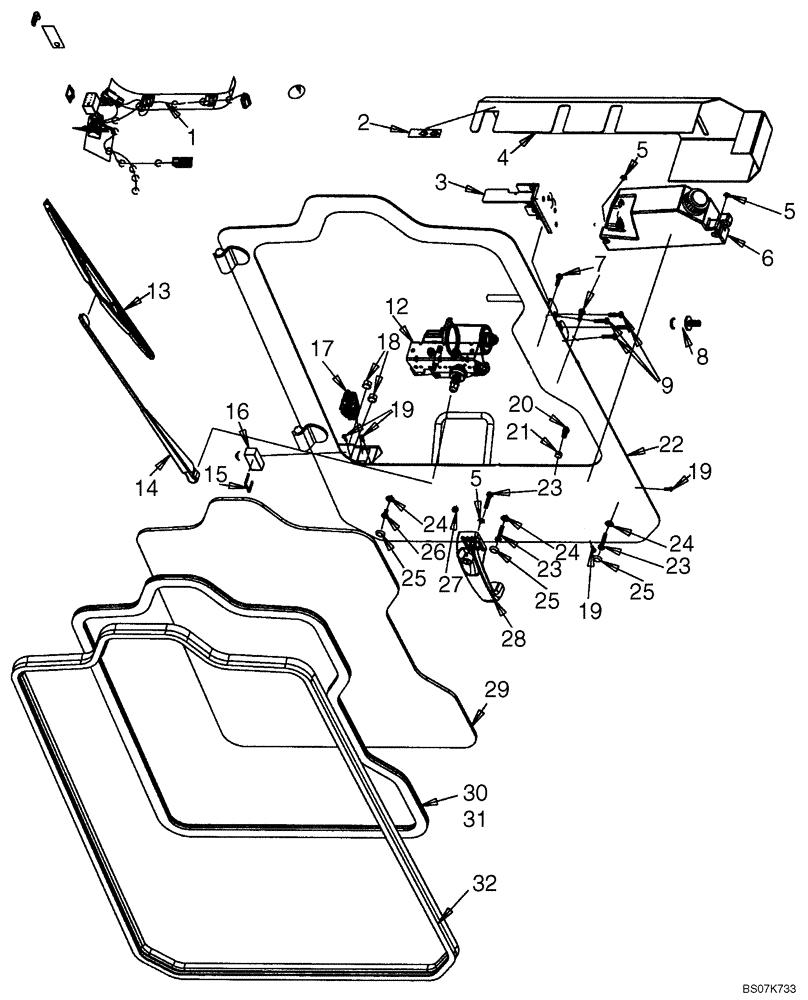

Запчасти Case IH 450 (09-29A) - DOOR, FRONT, METAL FRAME - WINDSHIELD; USES WIPER MOTOR 87461194 (09) - CHASSIS

87524962

CABIN DOOR

Door Assembly; Incl. 1 - 32

1шт.

1

87554261

HARNESS

Door Wiring Harness

1шт.

2

87461244

DECAL

Windshield Wiper

1шт.

3

87458047

LATCH

Rotary Latch

1шт.

4

87529401

DOOR COVER

1шт.

5

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

3шт.

6

87529400

BOTTLE

Washer Bottle Assembly; See Fig. 09-28C

1шт.

7

86511830

SCREW,Phillips Drive, Pan HD, M6 x 20mm, Cl 4.8

2шт.

8

87462415

STOP

Striker Bolt

1шт.

9

86511831

SCREW,Phillips Drive, Pan HD, M6 x 25mm

4шт.

10

87461187

CAP

Square Tubing End Caps; Not Illustrated

2шт.

11

87529351

SHOCK ABSORBER

Not Illustrated

1шт.

12

87461194

WIPER MOTOR

MOTOR, WIPER

1шт.

12

87461194R

450 SKID STEER, TIER 2, P.I.N. N7M458414 & PRIOR (1/05-12/07), 450CT COMPACT TRACK LOADER, BSN N7M464019 (4/05-12/07), Both MOTOR, WIPER

REMAN-WIPER MOTOR

1шт.

12

87461194C

Return Number

CORE-WIPER MOTOR

1шт.

13

87529397

WIPER BLADE

1шт.

14

87529398

WIPER ARM

1шт.

15

H435814

U-BOLT

1шт.

16

392269A2

SWITCH

Seat Bar

1шт.

17

87458055

SWITCH

Wiper

1шт.

18

280859

NUT,Keps, #6-32

2шт.

19

87462369

SCREW,Pan, #8 - 32 x 1/2"

4шт.

20

189609A1

BALL STUD,M8 x 1.25

Ball Stud

2шт.

21

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

1шт.

22

87529402

DOOR PANEL

1шт.

23

86511832

SCREW,Phillips Drive, Pan HD, M6 x 30mm, Cl 4.8

3шт.

24

87035254

RETAINER

3шт.

25

87035253

COVER

3шт.

26

191879

SCREW,Cross Pan Hd, 1/4" - 28 x 1/2"

1шт.

27

87461216

GROMMET

1шт.

28

87458046

LOCKING HANDLE

Uses Ignition Key

1шт.

29

87529399

GLASS

Door Glass

1шт.

29

87638976

DOOR PANEL

Polycarbonate Front Door

1шт.

30

87459549

RUBBER STRIP,2489.2mm L

Zip Locking Rubber

1шт.

31

87459548

STRIP

Zip Locking Rubber Strip

1шт.

32

87459550

DOOR SEAL,3327.4mm L

Door Bulb Seal

1шт.
